No image available
Specifications
- Function
- 8-channel multiplexer
- Package
- MP-117
Sources: [1]
Variants (2)
| Note | Compare | |
|---|---|---|
| ROM05 | ||
| ROM05C | only in the 1st edition (1983) |
Click a column heading to sort. „+” adds a variant to the comparison (ROM05).
Description
The ROM05 is a series of 8-channel multiplexers, analog integrated circuits listed in the Agenda radioelectronistului (2nd edition, 1989) among the integrated circuits made in Romania by ICCE (CCSIT-CE), in an MP-117 package [1]. Its codes (ROM05 and ROM05C) are in the Variants table; the pinout is in the Gallery.

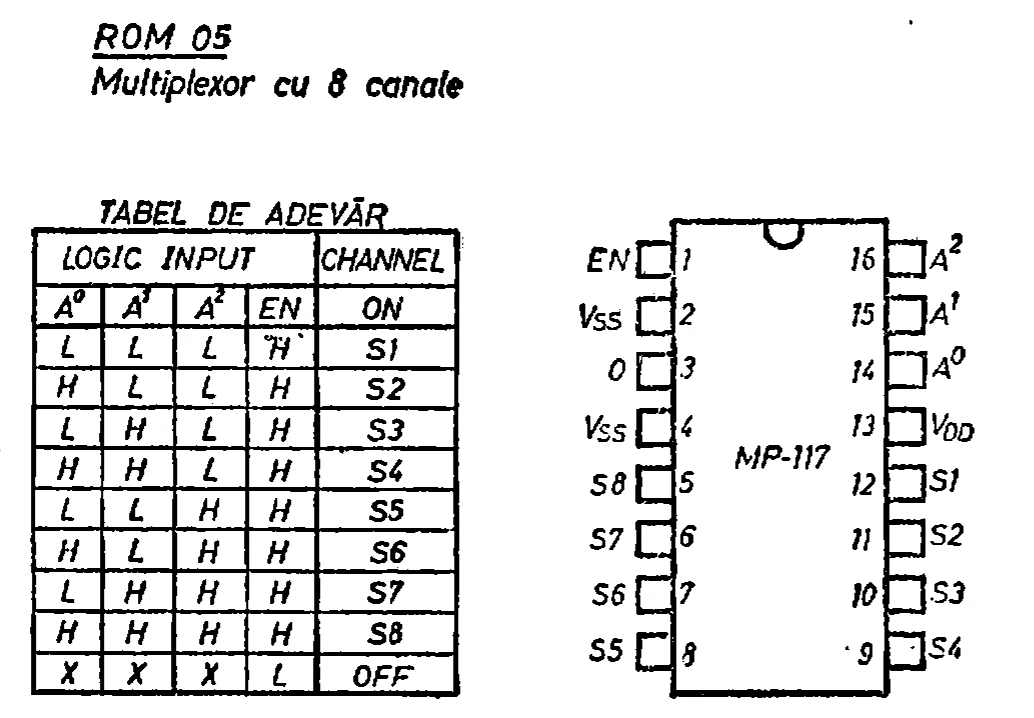

The panel also gives the truth table of the channel selection [1].
The 1st edition of the Agenda (1983) lists it as „ROM 05 C”, an 8-channel multiplexer made in MOS technology, in an MP-117 package [3].
Coded as (Romanian system, internal CCSIT-CE code) [2]:
| Part | Meaning |
|---|---|
| RO | manufacturer’s code: RO (Romania) |
| M | MOS integrated circuit |
| 05 | identification number |
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 35.2 „Circuite integrate analogice – producător: CCSIT-CE”, p. 610
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 26.7 „Sistemul românesc (codul intern CCSIT-CE)”, p. 486
- [3]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.10.2.2 „Circuite integrate analogice (liniare)”, B) „Produse I.C.C.E.”, p. 524
