General view

SM230

IPRS Băneasa

Manufacturer: IPRS Băneasa
Country: Romania
Year: Unknown
Category: Components
Type: Integrated circuits
Documentation score: 1/5
Last edited: 06 OCT 2026

Specifications

Function: switch with magnetic sensor (Hall transducer)
Package: plastic 3A

Sources: [1]

Variants (2)

	Compare
SM230
SM231

The sources give the same data for all these codes; they do not say how the versions differ.

Click a column heading to sort. „+” adds a variant to the comparison (SM230).

Description

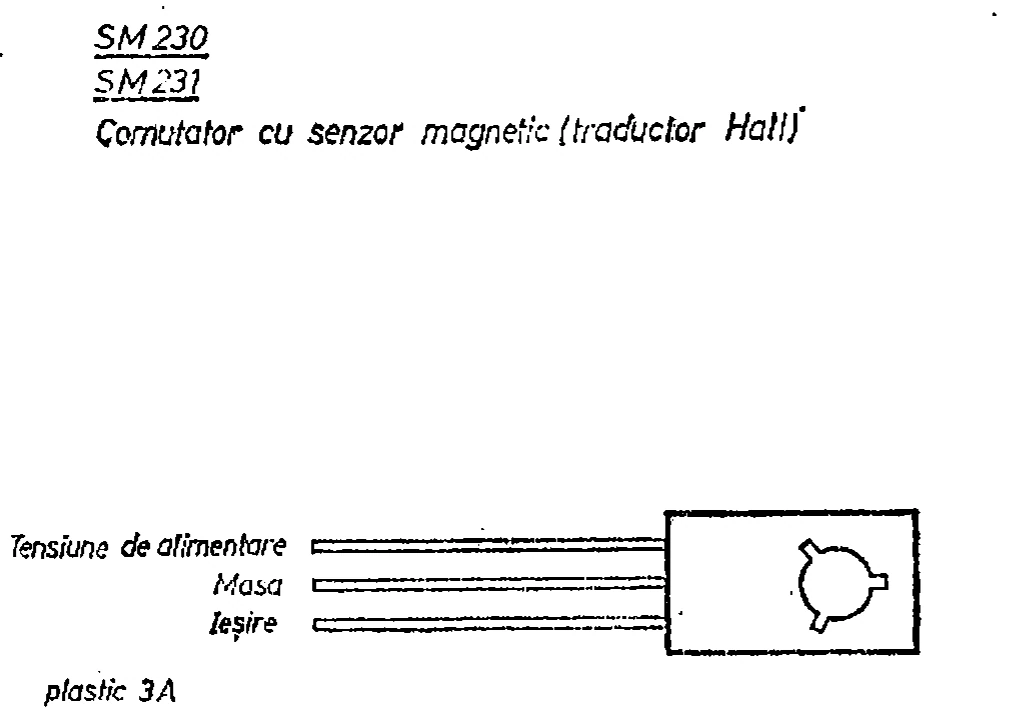

The SM230 is a series of switches with magnetic sensor (Hall transducer), analog integrated circuits listed in the Agenda radioelectronistului (2nd edition, 1989) among the integrated circuits made in Romania by IPRS Băneasa, in a plastic 3A package [1]. Its codes (SM230 and SM231) are in the Variants table; the pinout is in the Gallery.

Gallery

Documents

No documents available yet.

References

[1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 35.1 „Circuite integrate analogice – producător: IPRS-Băneasa”, p. 591
