TBA120
IPRS Băneasa
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Integrated circuits
- Documentation score
- 1/5
- Last edited
- 06 OCT 2026
Specifications
- Function
- IF amplifier-demodulator for FM reception (10.7 MHz)
- Package
- plastic 14
Sources: [1]
Variants (2)
| Compare | |
|---|---|
| TBA120U | |
| TBA120T |
The sources give the same data for all these codes; they do not say how the versions differ.
Click a column heading to sort. „+” adds a variant to the comparison (TBA120).
Description

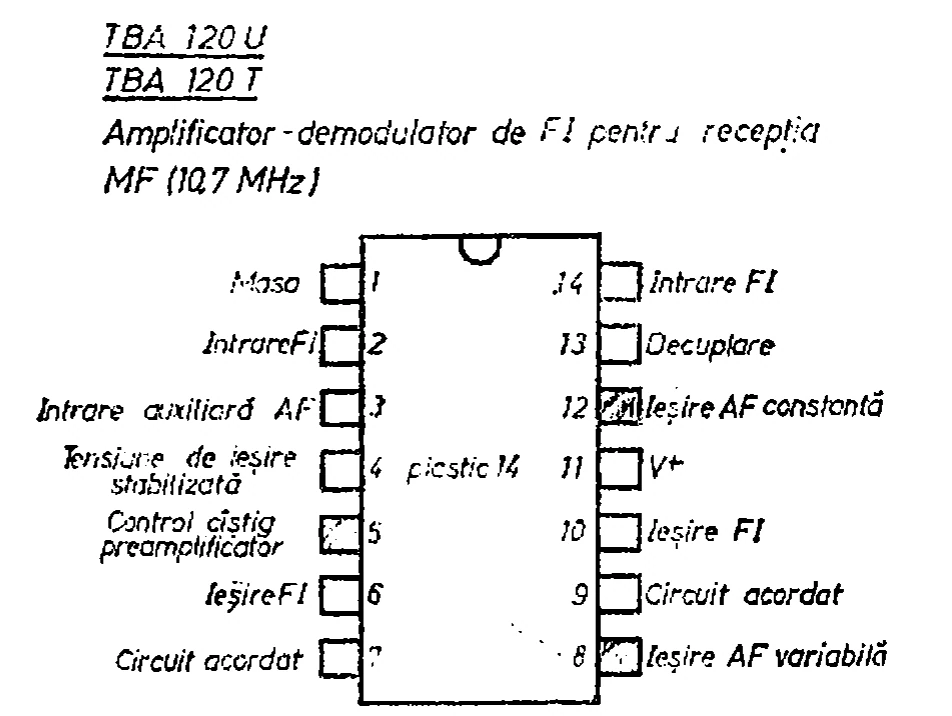

The TBA120 is a series of IF amplifier-demodulators for FM reception (10.7 MHz), analog integrated circuits listed in the Agenda radioelectronistului (2nd edition, 1989) among the integrated circuits made in Romania by IPRS Băneasa, in a plastic 14 package [1]. Its codes (TBA120U and TBA120T) are in the Variants table; the pinout is in the Gallery.
Coded as (Pro Electron system) [2]:
| Part | Meaning |
|---|---|
| T | analog circuit |
| B | serial letter (no meaning, except H = hybrid circuit) |
| A | temperature range not defined |
| 120 | serial number |
| U, T | letters added to the code: a single letter may also mark a constructional variant, without a precise meaning |
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 35.1 „Circuite integrate analogice – producător: IPRS-Băneasa”, p. 592
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 34.1 „Codul european PRO-ELECTRON”, p. 573
