TBA570
IPRS Băneasa
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Integrated circuits
- Documentation score
- 1/5
- Last edited
- 06 OCT 2026
Specifications
- Function
- AM/FM radio receiver
- Package
- plastic 16 with internal heat sink, plastic 16 (see Variants)
Sources: [1]
Variants (2)
| Compare | ||
|---|---|---|
| TBA570A | plastic 16 with internal heat sink | |
| TBA570C | plastic 16 |
Click a column heading to sort. „+” adds a variant to the comparison (TBA570).
Description

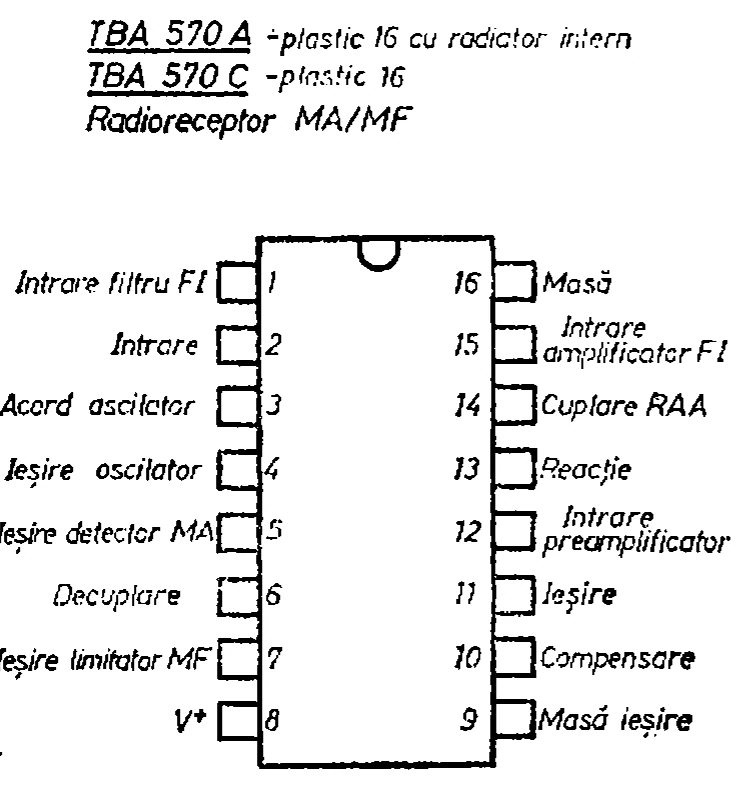

The TBA570 is a series of AM/FM radio receivers, analog integrated circuits listed in the Agenda radioelectronistului (2nd edition, 1989) among the integrated circuits made in Romania by IPRS Băneasa [1]. Its codes (TBA570A and TBA570C) are in the Variants table; the pinout is in the Gallery.
Coded as (Pro Electron system) [2]:
| Part | Meaning |
|---|---|
| T | analog circuit |
| B | serial letter (no meaning, except H = hybrid circuit) |
| A | temperature range not defined |
| 570 | serial number |
| A, C | letters added to the code: a single letter may also mark a constructional variant, without a precise meaning |
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 35.1 „Circuite integrate analogice – producător: IPRS-Băneasa”, p. 593
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 34.1 „Codul european PRO-ELECTRON”, p. 573
