General view

IPEE attenuator networks

IPEE Curtea de Argeș

Year
Unknown
Category
Components
Type
Resistors
Documentation score
1/5
Last edited
16 OCT 2026

Specifications

Type
resistor network, attenuator
Tolerance
±10 % (0.5 Ω < Rn ≤ 5 Ω), ±5 % (5 Ω < Rn ≤ 10 Ω), ±1 % (10 Ω < Rn ≤ 1 MΩ)
Rated power (Pn)
0.5 W
Temperature coefficient
±50, ±100, ±250 ·10⁻⁶/°C
Input impedance
75, 135, 150, 600 Ω
Attenuation
0.1…1.6 Np
Package
flat, single-in-line pins (2.54 mm pitch)
Lead spacing (d)
2.54 mm
Application
telecommunication equipment

Sources: [1][2]

Description

The attenuator networks of IPEE contain a variable number of resistors connected as attenuators (symmetrical, asymmetrical, T, π and others), in a flat package with pins at a 2.54 mm pitch, for telecommunication equipment [1]. They are made for input impedances of 75, 135, 150 and 600 Ω and attenuations of 0.1…1.6 Np, with a maximum dissipated power of 0.5 W [1].

The Agenda radioelectronistului names IPEE Electro-Argeș of Curtea de Argeș as the producer of all the resistors in its section on resistors made in Romania, in both editions [3][4]. Un secol de electronică în România says that the works, founded in 1972 as ICEP, took over the resistor lines that IPRS Băneasa made under a Thomson-CSF licence: the carbon resistors in 1973 and the wire-wound resistors in 1974 [5].

The book gives the networks no series code [1]. Romanian resistors are generally marked in clear, with the series code, the nominal value (100 = 100 Ω, 1 K = 1 kΩ, 1 M = 1 MΩ), the tolerance [3].

The 1st edition (1983) gives the same data [2].

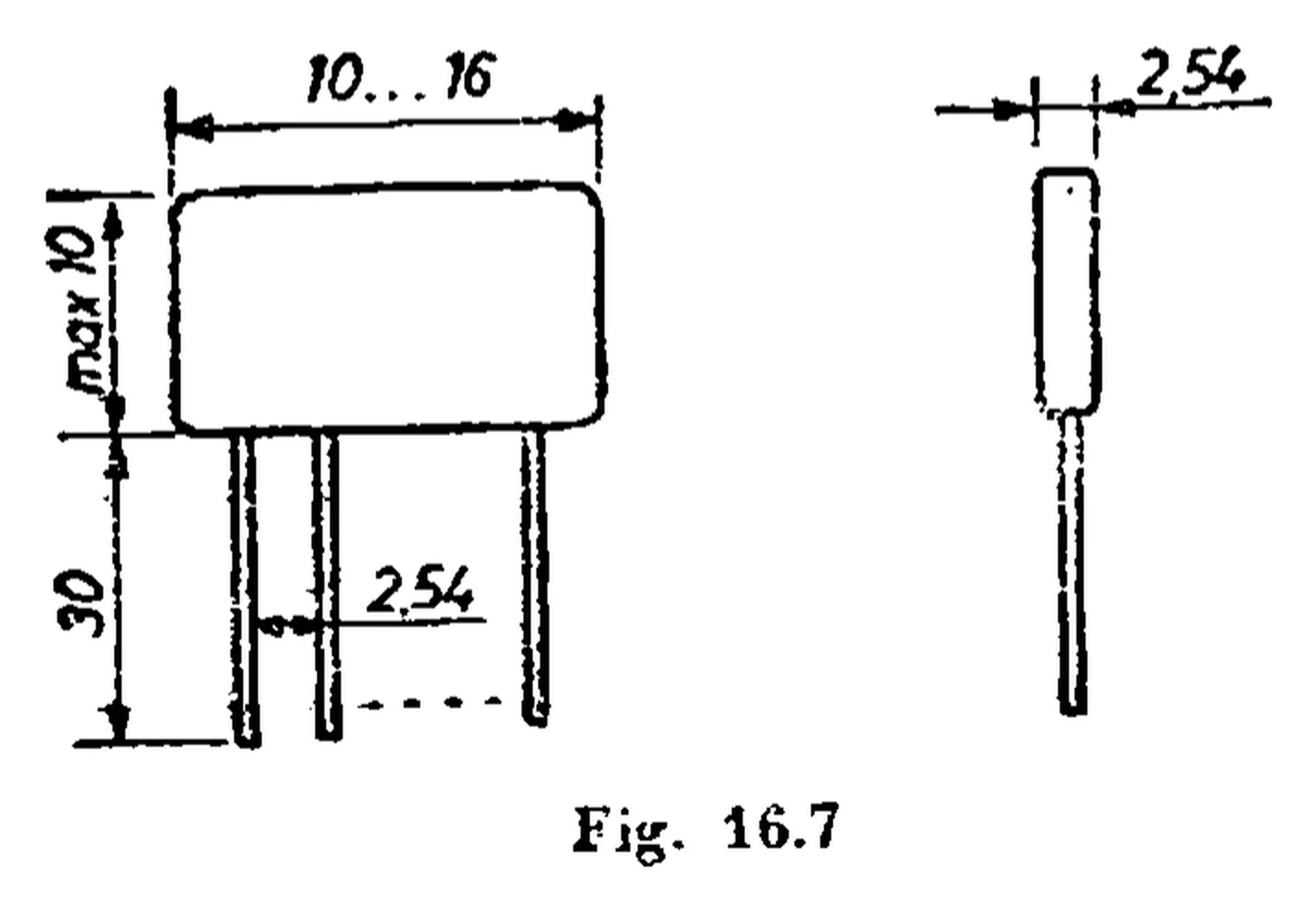

Dimensions in mm (fig. 16.7): length 10…16, height at most 10, pins 30 long at a 2.54 pitch [1].

Gallery

IPEE Curtea de Argeș IPEE attenuator networks: Drawing (fig. 16.7)No image available
Drawing (fig. 16.7)

Documents

No documents available yet.

References

  1. [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 16.3.7 „Rețele de atenuare”, p. 187
  2. [2]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.1.3.7 „Rețele de atenuare”, p. 156
  3. [3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 16.3 „Rezistoare produse în R.S.R.”, 16.3.1 „Codificare – marcare”, p. 184
  4. [4]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.1.3 „Rezistoare produse în R.S.R.”, 3.1.3.1 „Codificare – marcare”, p. 153
  5. [5]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, sections VIII.1.2.6 and VIII.2, pp. 410 and 434–435
