RBE 4000
IPEE Curtea de Argeș
- Also known as
- RBE 4000-A; RBE 4000-V
- Manufacturer
- IPEE Curtea de Argeș
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Resistors
- Documentation score
- 1/5
- Last edited
- 16 OCT 2026
Specifications
- Type
- wire-wound, ceramic body
- Standard
- STAS 9288-77
- Resistance (Rn)
- 0.1 Ω…68 kΩ
- Resistance, min
- 0.1 Ω
- Resistance, max
- 68000 Ω
- Tolerance
- ±5/10 %
- Rated power (Pn)
- 4–20 W (see Variants)
- Temperature coefficient
- ±200·10⁻⁶/°C (Rn ≥ 30 Ω), ±500·10⁻⁶/°C (Rn < 30 Ω)
- Climatic category
- 40/200/21
- Max. surface temperature
- 250 °C
- Construction
- axial leads, leads on one side (vertical mounting) (see Variants)
- Package
- ceramic body
- Max. length (Lmax)
- 21–80 mm (see Variants)
- Lead diameter (d)
- 0.8 mm
- Application
- power resistors in electrical and electronic circuits
Sources: [1]
Variants (24)
| Note | Compare | ||||||
|---|---|---|---|---|---|---|---|
| RBE 4004-A | 0.1 Ω…13 kΩ | 13000 | 4 | axial leads | 21 | ||
| RBE 4004-V | 0.1 Ω…13 kΩ | 13000 | 4 | leads on one side (vertical mounting) | 21 | ||
| RBE 4005-A | 0.1 Ω…13 kΩ | 13000 | 5 | axial leads | 25 | ||
| RBE 4005-V | 0.1 Ω…13 kΩ | 13000 | 5 | leads on one side (vertical mounting) | 25 | ||
| RBE 4006-A | 0.1 Ω…13 kΩ | 13000 | 6 | axial leads | 25 | ||
| RBE 4006-V | 0.1 Ω…13 kΩ | 13000 | 6 | leads on one side (vertical mounting) | 25 | ||
| RBE 4007-A | 0.1 Ω…13 kΩ | 13000 | 7 | axial leads | 25 | ||
| RBE 4007-V | 0.1 Ω…13 kΩ | 13000 | 7 | leads on one side (vertical mounting) | 25 | ||
| RBE 4008-A | 0.1 Ω…27 kΩ | 27000 | 8 | axial leads | 38 | ||
| RBE 4008-V | 0.1 Ω…27 kΩ | 27000 | 8 | leads on one side (vertical mounting) | 38 | ||
| RBE 4009-A | 0.1 Ω…27 kΩ | 27000 | 9 | axial leads | 38 | ||
| RBE 4009-V | 0.1 Ω…27 kΩ | 27000 | 9 | leads on one side (vertical mounting) | 38 | ||
| RBE 4010-A | 0.1 Ω…39 kΩ | 39000 | 10 | axial leads | 45 | ||
| RBE 4010-V | 0.1 Ω…39 kΩ | 39000 | 10 | leads on one side (vertical mounting) | 45 | ||
| RBE 4011-A | 0.1 Ω…39 kΩ | 39000 | 11 | axial leads | 50 | ||
| RBE 4011-V | 0.1 Ω…39 kΩ | 39000 | 11 | leads on one side (vertical mounting) | 50 | ||
| RBE 4012-A | 0.1 Ω…39 kΩ | 39000 | 12 | axial leads | 55 | ||
| RBE 4012-V | 0.1 Ω…39 kΩ | 39000 | 12 | leads on one side (vertical mounting) | 55 | ||
| RBE 4016-A | 0.1 Ω…68 kΩ | 68000 | 16 | axial leads | 70 | code partly damaged in the 2nd edition | |
| RBE 4016-V | 0.1 Ω…68 kΩ | 68000 | 16 | leads on one side (vertical mounting) | 70 | code partly damaged | |
| RBE 4017-A | 0.1 Ω…68 kΩ | 68000 | 17 | axial leads | 75 | ||
| RBE 4017-V | 0.1 Ω…68 kΩ | 68000 | 17 | leads on one side (vertical mounting) | 75 | ||
| RBE 4020-A | 0.1 Ω…68 kΩ | 68000 | 20 | axial leads | 80 | ||
| RBE 4020-V | 0.1 Ω…68 kΩ | 68000 | 20 | leads on one side (vertical mounting) | 80 |
Click a column heading to sort. „+” adds a variant to the comparison (RBE 4000).
Description
The RBE 4000 is a series of wire-wound resistors in a ceramic body, made to STAS 9288-77, with axial leads (RBE 4000-A) or with the leads on one side (RBE 4000-V), used as power resistors in electrical and electronic circuits [1]. The Agenda radioelectronistului (2nd edition, 1989) lists twelve sizes, each printed for both versions („RBE 4004–A(V)”), from 4 to 20 W and from 0.1 Ω to 68 kΩ, with a maximum surface temperature of 250 °C [1].
The Agenda radioelectronistului names IPEE Electro-Argeș of Curtea de Argeș as the producer of all the resistors in its section on resistors made in Romania [2]. Un secol de electronică în România says that the works, founded in 1972 as ICEP, took over the resistor lines that IPRS Băneasa made under a Thomson-CSF licence: the carbon resistors in 1973 and the wire-wound resistors in 1974 [4].
Coded as [2]:
| Part | Meaning |
|---|---|
| RBE | construction type: wire-wound resistor in a ceramic body |
| 4 | package type („tipul capsulei”, 1…6) |
| 004…020 | rated power: 4…20 W |
| -A | constructive variant: axial leads (horizontal mounting) |
| -V | constructive variant: leads on the same side (vertical mounting) |
Romanian resistors are generally marked in clear, with the series code, the nominal value (100 = 100 Ω, 1 K = 1 kΩ, 1 M = 1 MΩ), the tolerance and the rated power [2]. The series is not in the 1st edition (1983) [3].

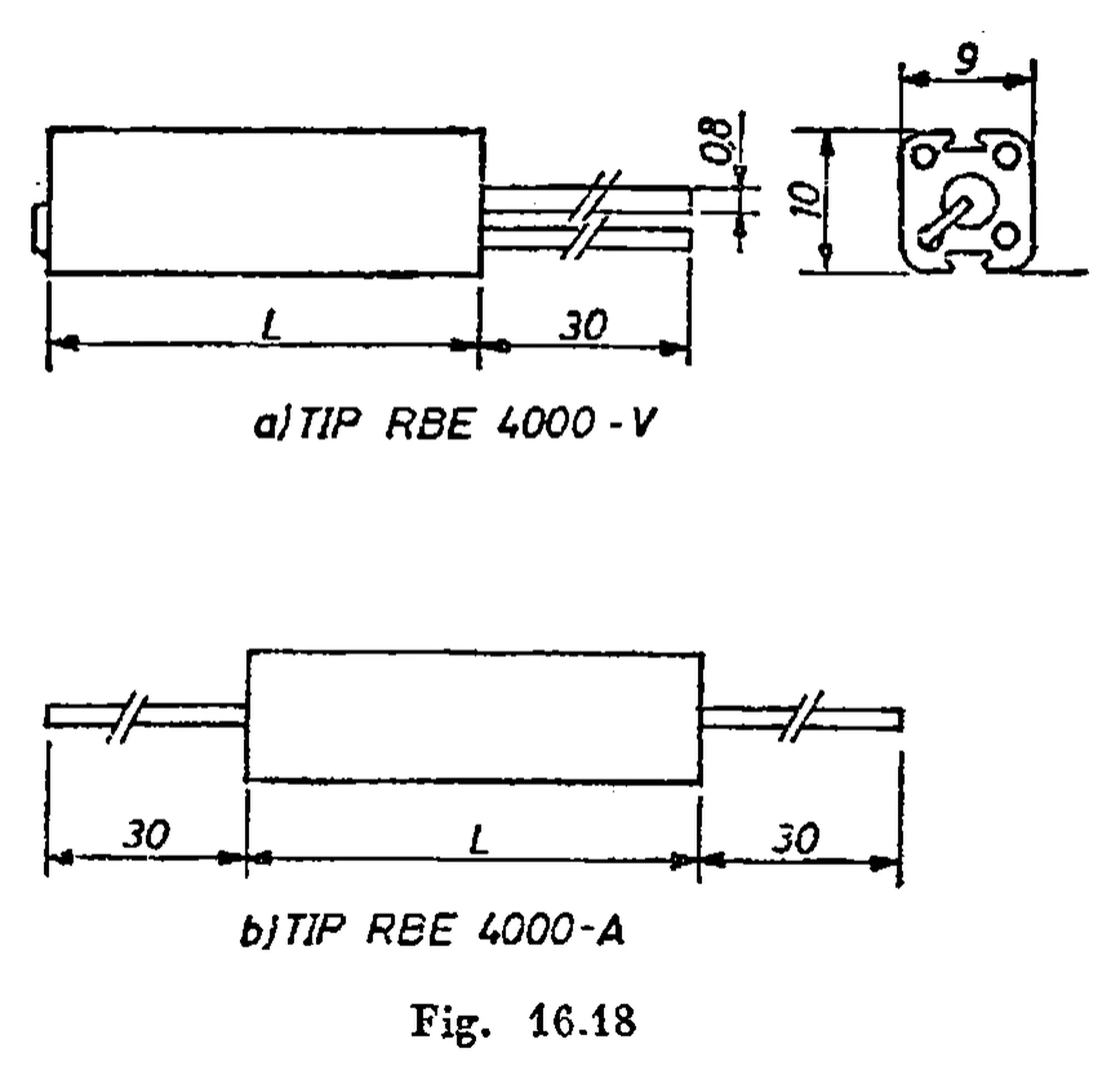

Dimensions in mm (fig. 16.18): maximum length Lmax from the table; body section 9 × 10, leads Ø 0.8, 30 long [1].
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 16.3.16 „Rezistoare bobinate în corp ceramic, seria RBE 4000”, pp. 194–195
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 16.3 „Rezistoare produse în R.S.R.”, 16.3.1 „Codificare – marcare”, p. 184
- [3]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.1.3 „Rezistoare produse în R.S.R.”, 3.1.3.1 „Codificare – marcare”, p. 153
- [4]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, sections VIII.1.2.6 and VIII.2, pp. 410 and 434–435
