IPEE Curtea de Argeș RBP 6000-C, RBR 6000-C

___ __ ______ _ __ / | _____________ / |/ / | | |/ / / /| | / ___/ ___/ _ \/ /|_/ / /| | | / / ___ |/ / / /__/ __/ / / / ___ |/ | /_/ |_/_/ \___/\___/_/ /_/_/ |_/_/|_|

Specifications

Type

wire-wound power, cemented

Resistance (Rn)

1 Ω…510 kΩ

Resistance, min

1 Ω

Resistance, max

510000 Ω

Tolerance

±5 %, ±10 %

Value series

E12, E24

Rated power (Pn)

5–250 W (see Variants)

Temperature coefficient

±200·10⁻⁶/°C (Rn ≥ 30 Ω), ±500·10⁻⁶/°C (Rn < 30 Ω)

Climatic category

40/155/21

Construction

fixed, adjustable (sliding tap), fixed, terminal type A, fixed, terminal type E (see Variants)

Package

tubular, solder lugs (C), flexible leads (A, E)

Max. diameter (Dmax)

10.5–32.2 mm (see Variants)

Max. length (Lmax)

41–270 mm (see Variants)

Min. bore diameter (dmin)

4–15 mm (see Variants)

Application

general use, at high dissipated power

Variants (24)

									Note
RBP 6005C	1 Ω…47 kΩ	1	47000	5	fixed	10.5	41	4
RBR 6005C	1 Ω…47 kΩ	1	47000	5	adjustable (sliding tap)	10.5	41	4
RBP 6010C	1 Ω…56 kΩ	1	56000	10	fixed	10.5	45	4
RBR 6010C	1 Ω…56 kΩ	1	56000	10	adjustable (sliding tap)	10.5	45	4
RBP 6016C	3.9 Ω…62 kΩ	3.9	62000	16	fixed	10.5	52	4
RBR 6016C	3.9 Ω…62 kΩ	3.9	62000	16	adjustable (sliding tap)	10.5	52	4
RBP 6020C	3 Ω…68 kΩ	3	68000	20	fixed	16	52	4
RBR 6020C	3 Ω…68 kΩ	3	68000	20	adjustable (sliding tap)	16	52	4
RBP 6025C	3 Ω…100 kΩ	3	100000	25	fixed	26	54	10	dmin printed „10(4)”
RBR 6025C	3 Ω…100 kΩ	3	100000	25	adjustable (sliding tap)	26	54	10	dmin printed „10(4)”
RBP 6050C	7.5 Ω…300 kΩ	7.5	300000	50	fixed	26	107	10
RBR 6050C	7.5 Ω…300 kΩ	7.5	300000	50	adjustable (sliding tap)	26	107	10
RBP 6075C	10 Ω…330 kΩ	10	330000	75	fixed	26	132	10
RBR 6075C	10 Ω…330 kΩ	10	330000	75	adjustable (sliding tap)	26	132	10
RBP 6100C	15 Ω…510 kΩ	15	510000	100	fixed	26	169	10	code damaged in the 2nd edition
RBR 6100C	15 Ω…510 kΩ	15	510000	100	adjustable (sliding tap)	26	169	10	code damaged in the 2nd edition
RBP 6160C	18 Ω…510 kΩ	18	510000	160	fixed	32.2	169	15	dmin printed „15(10)”
RBR 6160C	18 Ω…510 kΩ	18	510000	160	adjustable (sliding tap)	32.2	169	15	dmin printed „15(10)”
RBP 6200C	24 Ω…510 kΩ	24	510000	200	fixed	32.2	220	15
RBR 6200C	24 Ω…510 kΩ	24	510000	200	adjustable (sliding tap)	32.2	220	15
RBP 6250C	30 Ω…510 kΩ	30	510000	250	fixed	32.2	270	15
RBR 6250C	30 Ω…510 kΩ	30	510000	250	adjustable (sliding tap)	32.2	270	15
RBP 6020A	3 Ω…68 kΩ	3	68000	20	fixed, terminal type A	16	52	15
RBP 6020E	3 Ω…68 kΩ	3	68000	20	fixed, terminal type E	16	52	4	1st edition: „RPB -6020E”

Click a column heading to sort. „+” adds a variant to the comparison (RBP 6000-C, RBR 6000-C).

Description

The RBP 6000-C (fixed) and RBR 6000-C (adjustable, with a sliding tap) are cemented wire-wound power resistors on a tubular body, for general use at high dissipated power [1]. The Agenda radioelectronistului (2nd edition, 1989) prints eleven sizes for both series („RBP(R) 6005C” to „RBP(R) 6250C”), from 5 to 250 W and from 1 Ω to 510 kΩ, and two more fixed types with other terminals, RBP-6020A and RBP-6020E [1].

The Agenda radioelectronistului names IPEE Electro-Argeș of Curtea de Argeș as the producer of all the resistors in its section on resistors made in Romania, in both editions [3][4]. Un secol de electronică în România says that the works, founded in 1972 as ICEP, took over the resistor lines that IPRS Băneasa made under a Thomson-CSF licence: the carbon resistors in 1973 and the wire-wound resistors in 1974 [5].

Coded as [3]:

Part	Meaning
RBP	construction type: fixed wire-wound power resistor (printed „RPB” in the code list)
RBR	construction type: adjustable wire-wound power resistor („rezistor bobinat de putere, reglabil”)
6	package type („tipul capsulei”, 1…6)
005…250	rated power: 5…250 W
C, E, A	constructive variant: terminal types (for the RBP series)

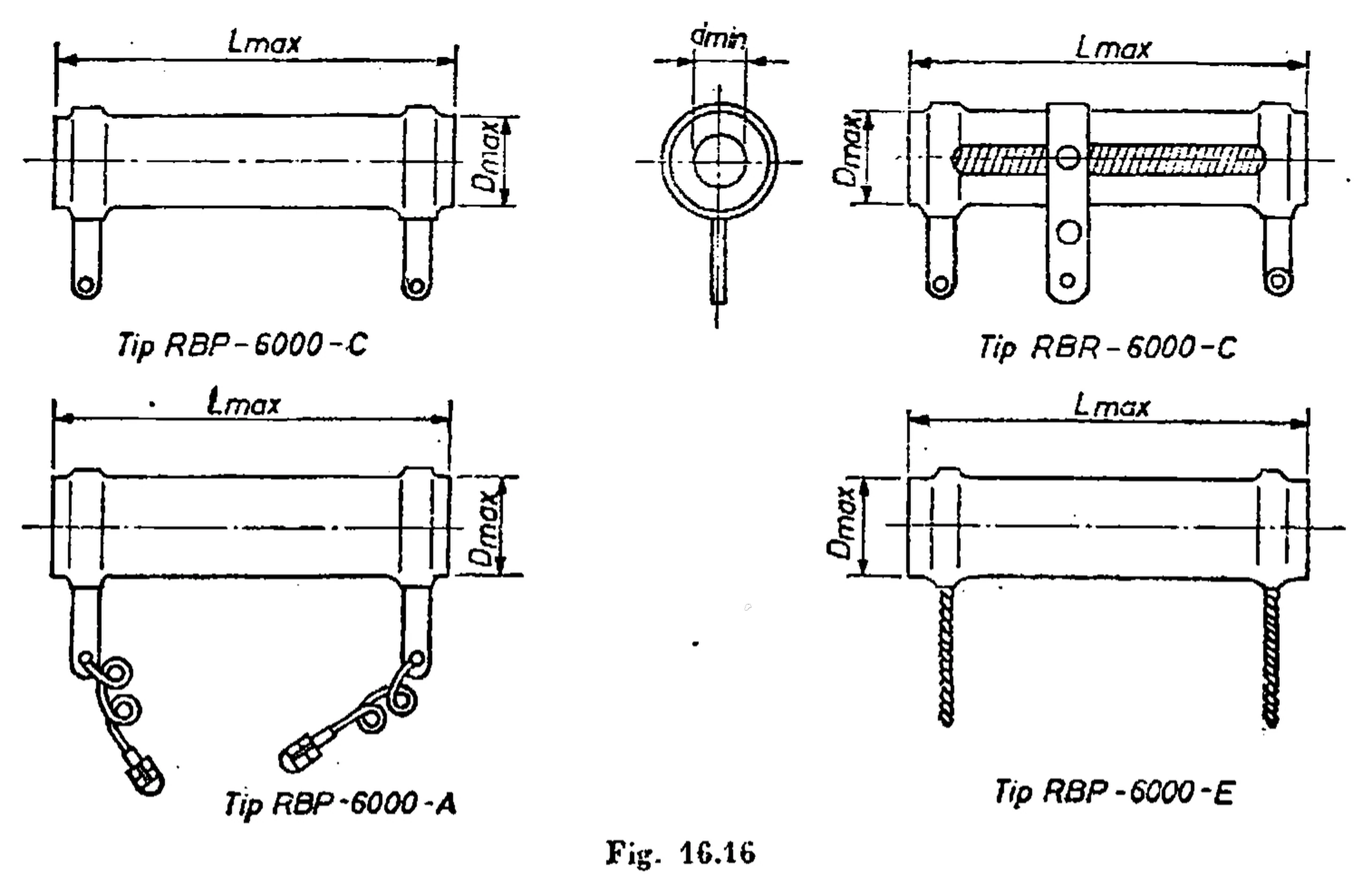

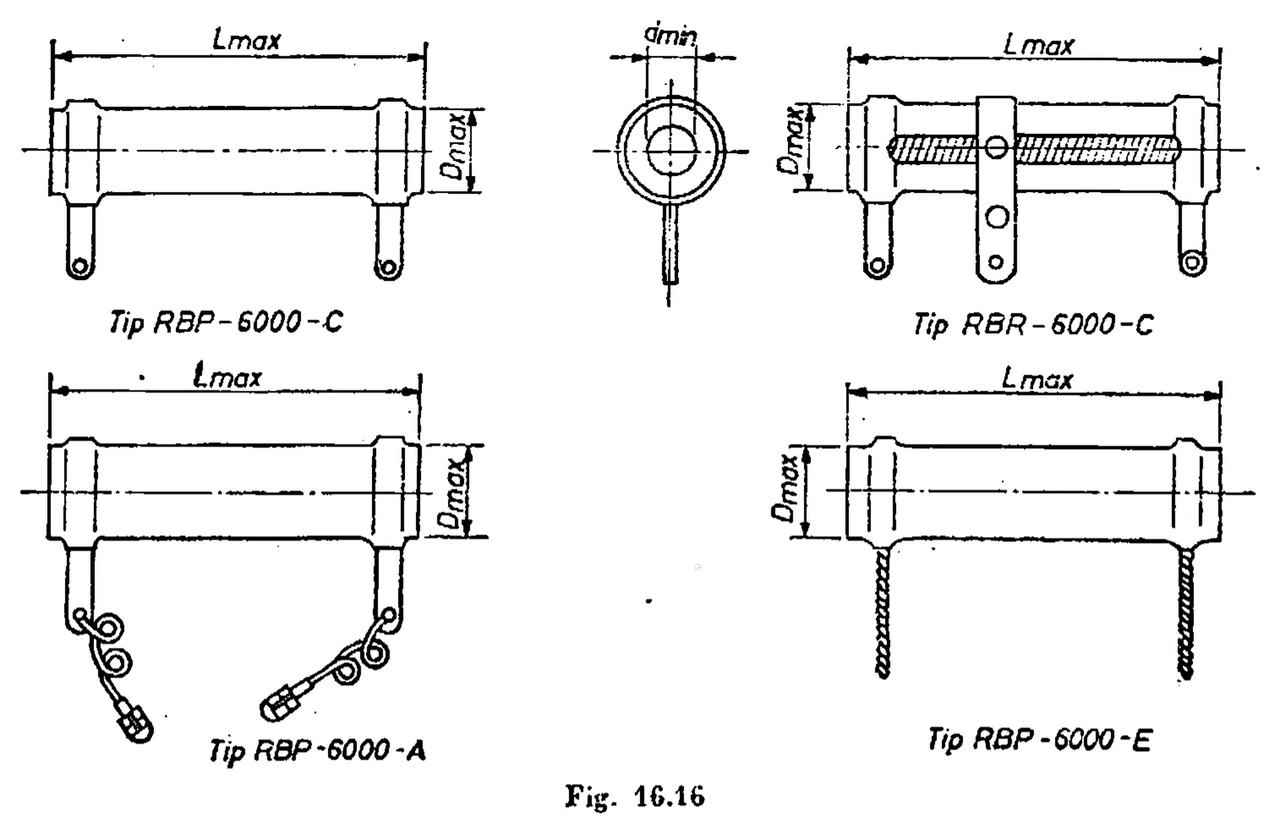

Fig. 16.16 shows the types RBP-6000-C and RBR-6000-C with solder lugs, RBP-6000-A with flexible leads ending in eyelets and RBP-6000-E with flexible stranded leads [1]. Romanian resistors are generally marked in clear, with the series code, the nominal value (100 = 100 Ω, 1 K = 1 kΩ, 1 M = 1 MΩ), the tolerance and the rated power [3].

The 1st edition (1983) calls the series RBP and RBR and has the same table, with the last code printed „RPB -6020E” [2]. The code RBP(R) 6100C is damaged in the 2nd edition and read with the 1st [1][2].

Dimensions in mm (fig. 16.16): maximum length Lmax, maximum diameter Dmax and minimum bore dmin from the table [1].

References

[1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 16.3.14 „Rezistoare bobinate de putere cimentate, seriile RBP 6000-C și RBR 6000-C”, pp. 192–193

[2]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.1.3.14 „Rezistoare bobinate de putere cimentate, seriile RBP și RBR”, pp. 161–162

[3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 16.3 „Rezistoare produse în R.S.R.”, 16.3.1 „Codificare – marcare”, p. 184

[4]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.1.3 „Rezistoare produse în R.S.R.”, 3.1.3.1 „Codificare – marcare”, p. 153

[5]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, sections VIII.1.2.6 and VIII.2, pp. 410 and 434–435
