RBS 1, RBS 2
IPEE Curtea de Argeș
- Manufacturer
- IPEE Curtea de Argeș
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Resistors
- Documentation score
- 1/5
- Last edited
- 16 OCT 2026
Specifications
- Type
- wire-wound, fusible, ceramic body
- Standard
- STAS 9288-77
- Resistance (Rn)
- 0.15 Ω…33 kΩ
- Resistance, min
- 0.15 Ω
- Resistance, max
- 33000 Ω
- Tolerance
- ±5/10 %
- Rated power (Pn)
- 2–10 W (see Variants)
- Climatic category
- 40/200/21
- Max. surface temperature
- 320 °C
- Marking
- in clear
- Package
- ceramic body
- Max. length (Lmax)
- 25–75 mm (see Variants)
- Application
- power resistors with short-circuit protection in electrical and electronic circuits
Sources: [1]
Variants (8)
| Note | Compare | ||||||
|---|---|---|---|---|---|---|---|
| RBS 1-3 | 0.5 Ω…3 kΩ | 0.5 | 3000 | 3 | 25 | ||
| RBS 1-5,5 | 1 Ω…7 kΩ | 1 | 7000 | 5.5 | 38 | ||
| RBS 1-7 | 1 Ω…10 kΩ | 1 | 10000 | 7 | 50 | tolerance printed „5/19” | |
| RBS 1-10 | 1 Ω…15 kΩ | 1 | 15000 | 10 | 75 | ||
| RBS 2-2 | 0.15 Ω…13 kΩ | 0.15 | 13000 | 2 | 25 | ||
| RBS 2-3 | 0.33 Ω…20 kΩ | 0.33 | 20000 | 3 | 38 | ||
| RBS 2-4 | 0.51 Ω…27 kΩ | 0.51 | 27000 | 4 | 50 | ||
| RBS 2-6 | 0.51 Ω…33 kΩ | 0.51 | 33000 | 6 | 75 |
Click a column heading to sort. „+” adds a variant to the comparison (RBS 1, RBS 2).
Description
The RBS 1 and RBS 2 are fusible wire-wound resistors in a ceramic body, made to STAS 9288-77, used as power resistors with short-circuit protection in electrical and electronic circuits [1]. The Agenda radioelectronistului (2nd edition, 1989) lists four codes in each series, RBS 1-3 to RBS 1-10 (3–10 W) and RBS 2-2 to RBS 2-6 (2–6 W), from 0.15 Ω to 33 kΩ, with a maximum surface temperature of 320 °C [1].
The Agenda radioelectronistului names IPEE Electro-Argeș of Curtea de Argeș as the producer of all the resistors in its section on resistors made in Romania [2]. Un secol de electronică în România says that the works, founded in 1972 as ICEP, took over the resistor lines that IPRS Băneasa made under a Thomson-CSF licence: the carbon resistors in 1973 and the wire-wound resistors in 1974 [4].
The letters RBS are not in the book’s code list; the number after the dash is the rated power in watts in the table („RBS 1-5,5” = 5.5 W) [2][1]. They are marked in clear [1]. The series is not in the 1st edition (1983) [3].

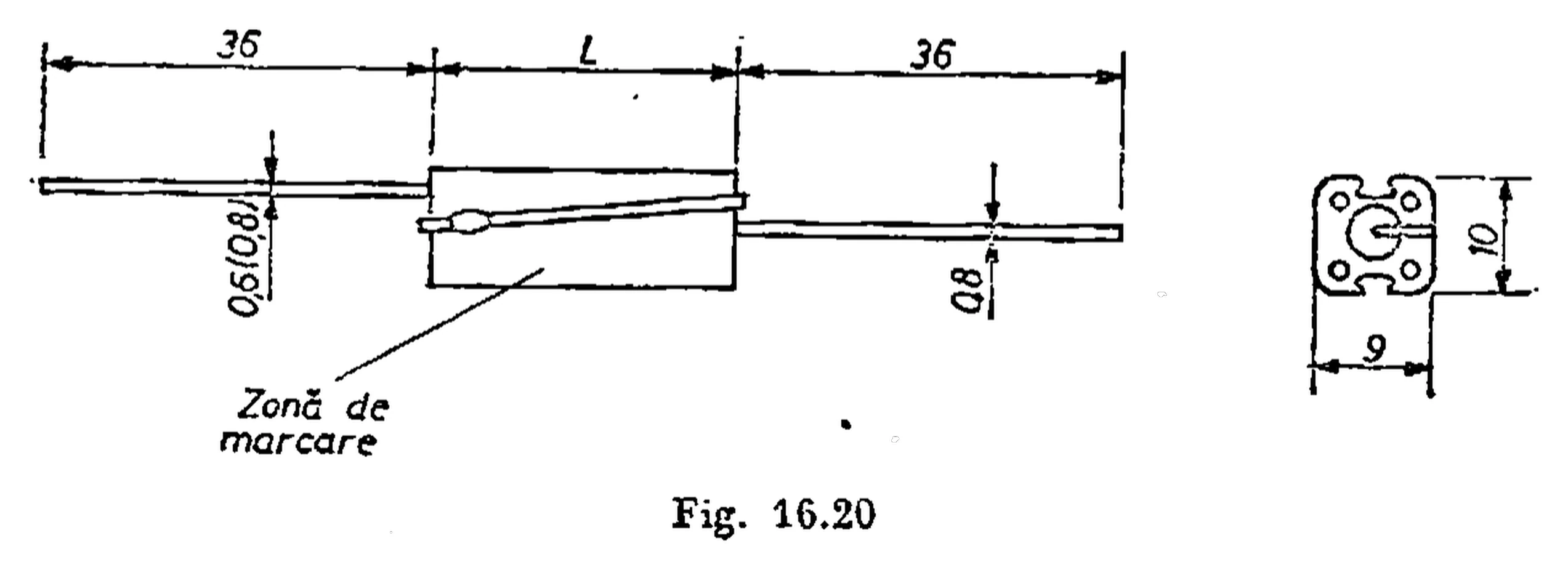

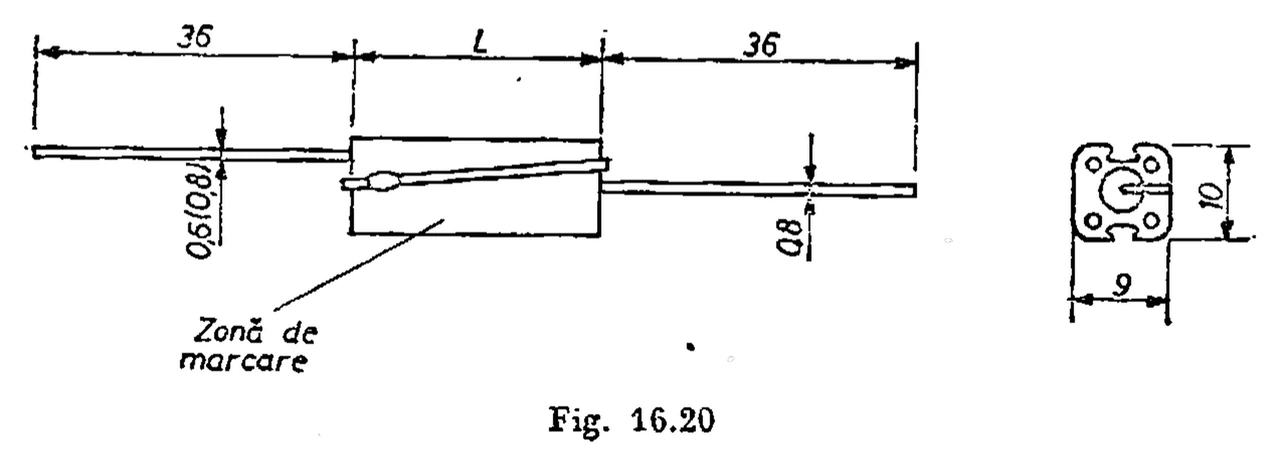

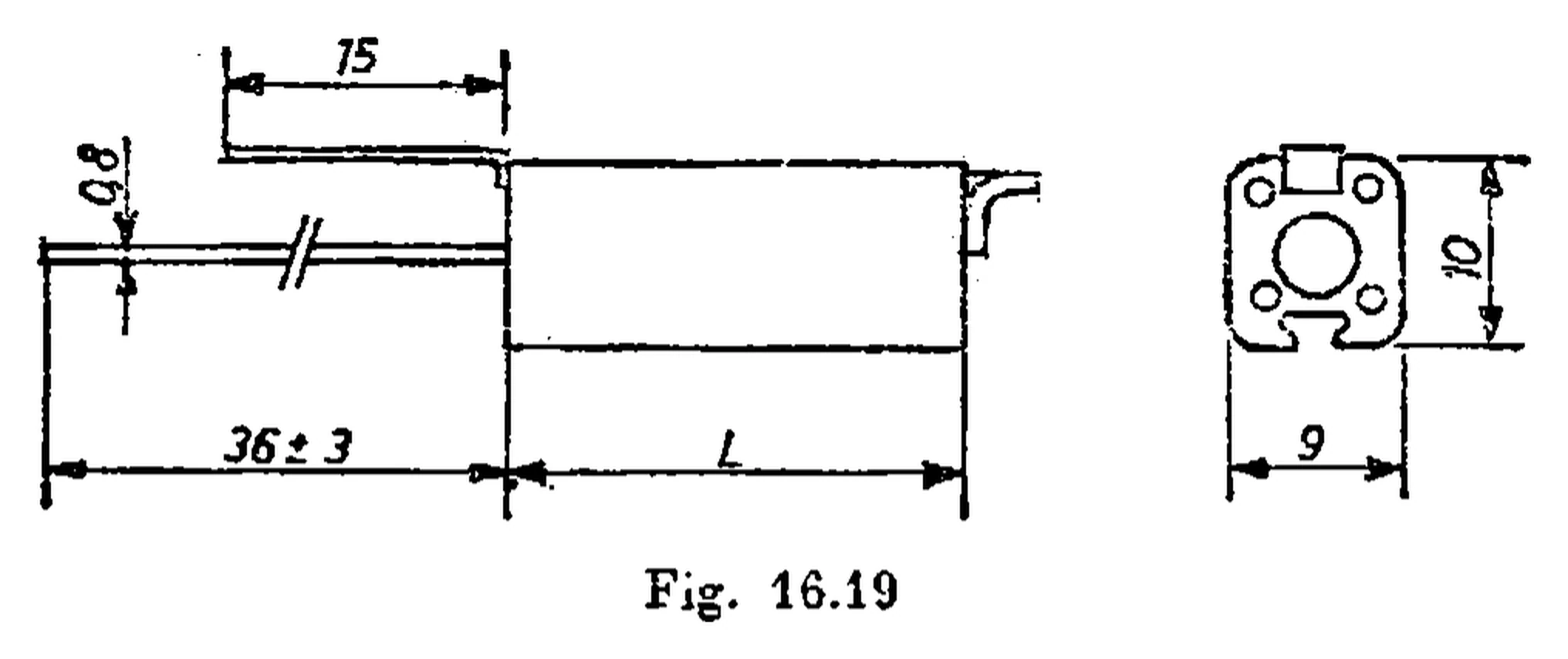

Dimensions in mm: RBS 1 (fig. 16.19) and RBS 2 (fig. 16.20), maximum length Lmax from the table; body section 9 × 10 [1].
Gallery
No image available
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 16.3.17 „Rezistoare bobinate fuzibile în corp ceramic, seriile RBS 1 și RBS 2”, pp. 195–196
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 16.3 „Rezistoare produse în R.S.R.”, 16.3.1 „Codificare – marcare”, p. 184
- [3]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.1.3 „Rezistoare produse în R.S.R.”, 3.1.3.1 „Codificare – marcare”, p. 153
- [4]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, sections VIII.1.2.6 and VIII.2, pp. 410 and 434–435
