RBT 5000-L
IPEE Curtea de Argeș
- Also known as
- RBT-L
- Manufacturer
- IPEE Curtea de Argeș
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Resistors
- Documentation score
- 1/5
- Last edited
- 16 OCT 2026
Specifications
- Type
- wire-wound, ceramic body, high reliability
- Standard
- STAS 9288-77
- Resistance (Rn)
- 1 Ω…68 kΩ
- Resistance, min
- 1 Ω
- Resistance, max
- 68000 Ω
- Tolerance
- ±5/10 %
- Value series
- E12, E24
- Rated power (Pn)
- 3–10 W (see Variants)
- Temperature coefficient
- ±200·10⁻⁶/°C (Rn ≥ 30 Ω), ±500·10⁻⁶/°C (Rn < 30 Ω)
- Insulation resistance (Riz)
- ≤ 100 MΩ (as printed)
- Dielectric strength
- 1500 V DC / 60 s
- Climatic category
- 40/125/21
- Package
- ceramic body, axial leads
- Max. length (Lmax)
- 25–78 mm (see Variants)
- Lead diameter (d)
- 0.8 mm
- Application
- professional electronic circuits (high reliability)
Variants (5)
| Note | Compare | |||||
|---|---|---|---|---|---|---|
| RBT 3003-L | 1 Ω…13 kΩ | 13000 | 3 | 25 | ||
| RBT 3005-L | 1 Ω…20 kΩ | 20000 | 5 | 35 | ||
| RBT 3007-L | 1 Ω…24 kΩ | 24000 | 7 | 40 | ||
| RBT 3010-L | 1 Ω…30 kΩ | 30000 | 10 | 52.5 | ||
| RBT 3016-L | 1 Ω…68 kΩ | 68000 | 10 | 78 | rated power printed 10 W in both editions |
Click a column heading to sort. „+” adds a variant to the comparison (RBT 5000-L).
Description
The RBT 5000-L is a series of high-reliability wire-wound resistors in a ceramic body with axial leads, made to STAS 9288-77 for professional electronic circuits [1]. The Agenda radioelectronistului (2nd edition, 1989) lists five codes, RBT 3003-L to RBT 3016-L, from 3 to 10 W and from 1 Ω to 68 kΩ [1].
The Agenda radioelectronistului names IPEE Electro-Argeș of Curtea de Argeș as the producer of all the resistors in its section on resistors made in Romania, in both editions [3][4]. Un secol de electronică în România says that the works, founded in 1972 as ICEP, took over the resistor lines that IPRS Băneasa made under a Thomson-CSF licence: the carbon resistors in 1973 and the wire-wound resistors in 1974 [5].
Coded as [3]:
| Part | Meaning |
|---|---|
| RBT | construction type: wire-wound resistor in a ceramic body |
| 3 | package type („tipul capsulei”, 1…6) |
| 003…016 | rated power: 3…16 W |
| -L | constructive variant: high reliability |
Romanian resistors are generally marked in clear, with the series code, the nominal value (100 = 100 Ω, 1 K = 1 kΩ, 1 M = 1 MΩ), the tolerance and the rated power [3].
Printed so in both editions: the codes begin with 3 (RBT 3003-L) although the series is called RBT 5000-L (1st edition: RBT-L), RBT 3016-L has a rated power of 10 W, and the insulation resistance is given as „≤ 100 MΩ” [1][2].

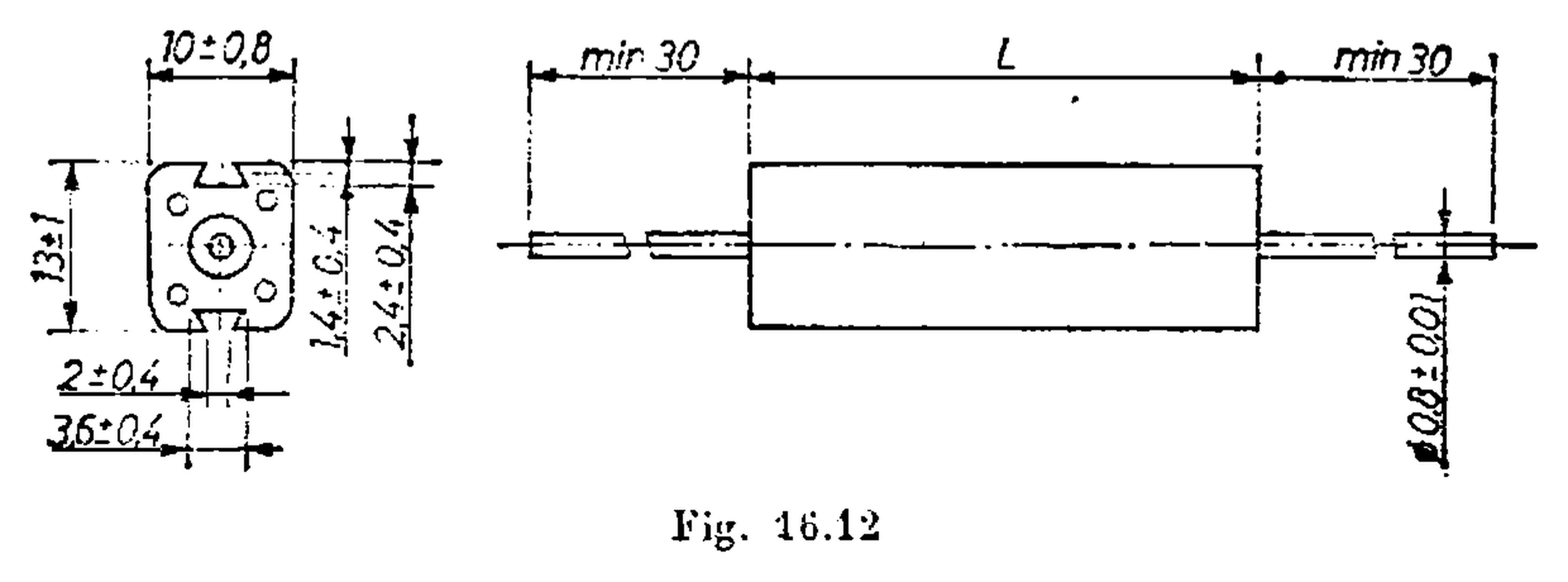

Dimensions in mm (fig. 16.12): maximum length Lmax from the table; body section 10 ± 0.8 × 13 ± 1, leads Ø 0.8 ± 0.01, at least 30 long [1].
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 16.3.11 „Rezistoare bobinate în corp ceramic, seria RBT 5000-L”, p. 190
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.1.3.11 „Rezistoare bobinate în corp ceramic, seria RBT-L”, p. 159
- [3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 16.3 „Rezistoare produse în R.S.R.”, 16.3.1 „Codificare – marcare”, p. 184
- [4]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.1.3 „Rezistoare produse în R.S.R.”, 3.1.3.1 „Codificare – marcare”, p. 153
- [5]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, sections VIII.1.2.6 and VIII.2, pp. 410 and 434–435
