RBT 5000
IPEE Curtea de Argeș
- Also known as
- RBT
- Manufacturer
- IPEE Curtea de Argeș
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Resistors
- Documentation score
- 1/5
- Last edited
- 16 OCT 2026
Specifications
- Type
- wire-wound, ceramic body
- Standard
- STAS 9288-77
- Resistance (Rn)
- 1 Ω…68 kΩ
- Resistance, min
- 1 Ω
- Resistance, max
- 68000 Ω
- Tolerance
- ±5/10 %
- Value series
- E12, E24
- Rated power (Pn)
- 10–16 W (see Variants)
- Temperature coefficient
- ±200·10⁻⁶/°C (Rn ≥ 30 Ω), ±500·10⁻⁶/°C (Rn < 30 Ω)
- Insulation resistance (Riz)
- ≥ 100 MΩ
- Dielectric strength
- 1500 V DC / 60 s
- Climatic category
- 40/125/21
- Construction
- leads on one side (vertical mounting), axial leads (horizontal mounting) (see Variants)
- Package
- ceramic body
- Max. length (Lmax)
- 52.5–78 mm (see Variants)
- Lead diameter (d)
- 0.8 mm
- Application
- general use
Variants (4)
| Compare | ||||||
|---|---|---|---|---|---|---|
| RBT 5010-V | 1 Ω…36 kΩ | 36000 | 10 | leads on one side (vertical mounting) | 52.5 | |
| RBT 5016-V | 1 Ω…68 kΩ | 68000 | 16 | leads on one side (vertical mounting) | 78 | |
| RBT 5010-A | 1 Ω…36 kΩ | 36000 | 10 | axial leads (horizontal mounting) | 52.5 | |
| RBT 5016-A | 1 Ω…68 kΩ | 68000 | 16 | axial leads (horizontal mounting) | 78 |
Click a column heading to sort. „+” adds a variant to the comparison (RBT 5000).
Description
The RBT 5000 is a series of wire-wound resistors in a ceramic body, made to STAS 9288-77 for general use, with the leads on one side (RBT 5000-V) or axial (RBT 5000-A) [1]. The Agenda radioelectronistului (2nd edition, 1989) lists four codes, 10 and 16 W in each version, from 1 Ω to 68 kΩ [1].
The Agenda radioelectronistului names IPEE Electro-Argeș of Curtea de Argeș as the producer of all the resistors in its section on resistors made in Romania, in both editions [3][4]. Un secol de electronică în România says that the works, founded in 1972 as ICEP, took over the resistor lines that IPRS Băneasa made under a Thomson-CSF licence: the carbon resistors in 1973 and the wire-wound resistors in 1974 [5].
Coded as [3]:
| Part | Meaning |
|---|---|
| RBT | construction type: wire-wound resistor in a ceramic body |
| 5 | package type („tipul capsulei”, 1…6) |
| 010, 016 | rated power: 10 and 16 W |
| -V | constructive variant: leads on the same side (vertical mounting) |
| -A | constructive variant: axial leads (horizontal mounting) |
Romanian resistors are generally marked in clear, with the series code, the nominal value (100 = 100 Ω, 1 K = 1 kΩ, 1 M = 1 MΩ), the tolerance and the rated power [3].
The 1st edition (1983) calls the series RBT and gives the same table [2].

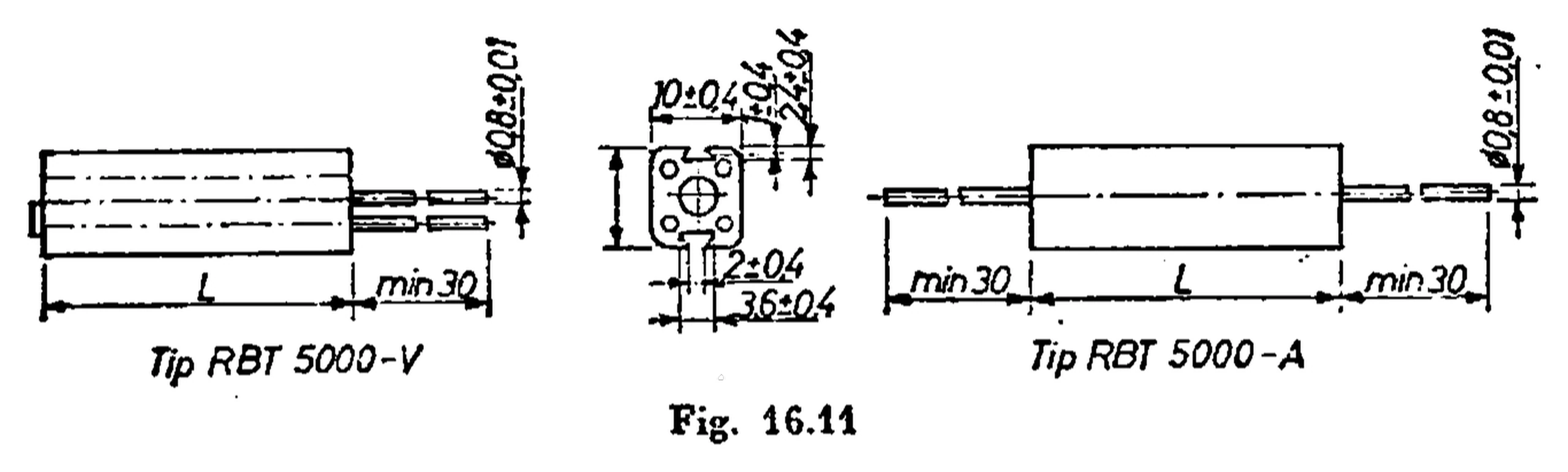

Dimensions in mm (fig. 16.11): maximum length Lmax from the table; body section 10 ± 0.4, leads Ø 0.8 ± 0.01, at least 30 long [1].
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 16.3.10 „Rezistoare bobinate în corp ceramic, seria RBT 5000”, pp. 189–190
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.1.3.10 „Rezistoare bobinate în corp ceramic, seria RBT”, pp. 158–159
- [3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 16.3 „Rezistoare produse în R.S.R.”, 16.3.1 „Codificare – marcare”, p. 184
- [4]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.1.3 „Rezistoare produse în R.S.R.”, 3.1.3.1 „Codificare – marcare”, p. 153
- [5]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, sections VIII.1.2.6 and VIII.2, pp. 410 and 434–435
