RGM 7000
IPEE Curtea de Argeș
- Manufacturer
- IPEE Curtea de Argeș
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Resistors
- Documentation score
- 1/5
- Last edited
- 16 OCT 2026
Specifications
- Type
- wire-wound power, resistor set
- Standard
- NTR-E 1377-80
- Resistance (Rn)
- 1…680 Ω
- Resistance, min
- 1 Ω
- Resistance, max
- 680 Ω
- Tolerance
- ±10 % (±5 % on request)
- Rated power (Pn)
- 600–1000 W (see Variants)
- Limit voltage (Unlim)
- 2500 V
- Temperature coefficient
- ±200 ppm/°C
- Insulation resistance (Riz)
- 2…10 MΩ
- Dielectric strength
- 4500 V rms / 60 s
- Climatic category
- 40/200/21
- Max. surface temperature
- 350 °C
- Construction
- 3 or 4 identical 200 W resistors in parallel, on a frame
- Package
- frame
- Resistive elements
- 3–4 (see Variants)
- Net weight
- 1.9–2.55 kg (see Variants)
- Length (L)
- 275–325 mm (see Variants)
- Application
- power electrical and electronic equipment
Sources: [1]
Variants (3)
| Note | Compare | |||||
|---|---|---|---|---|---|---|
| RGM 7060 | 600 | 3 | 1.9 | 275 | 3 × 200 W; A = 250 mm | |
| RGM 7080 | 800 | 4 | 2.2 | 275 | 4 × 200 W; A = 250 mm | |
| RGM 7100 | 1000 | 4 | 2.55 | 325 | structure printed „4 × 200 W” (= 800 W) for 1000 W; A smudged (reads 300 or 800) |
Click a column heading to sort. „+” adds a variant to the comparison (RGM 7000).
Description
The RGM 7000 is a series of high-power wire-wound resistor sets, made to NTR-E 1377-80: three or four identical 200 W resistors connected in parallel on a frame, from 1 to 680 Ω, rated 600, 800 and 1000 W at 70 °C, for power electrical and electronic equipment [1]. The maximum voltage is 2500 V rms and the maximum surface temperature 350 °C [1].
The Agenda radioelectronistului names IPEE Electro-Argeș of Curtea de Argeș as the producer of all the resistors in its section on resistors made in Romania [2]. Un secol de electronică în România says that the works, founded in 1972 as ICEP, took over the resistor lines that IPRS Băneasa made under a Thomson-CSF licence: the carbon resistors in 1973 and the wire-wound resistors in 1974 [4].
The letters RGM are not in the book’s code list [2]. In the 2nd edition the three codes are partly smudged (read as RGM 7060, 7080 and 7100), and the 1000 W set is given the same structure as the 800 W one, „4 × 200 W” [1]. The series is not in the 1st edition (1983) [3].

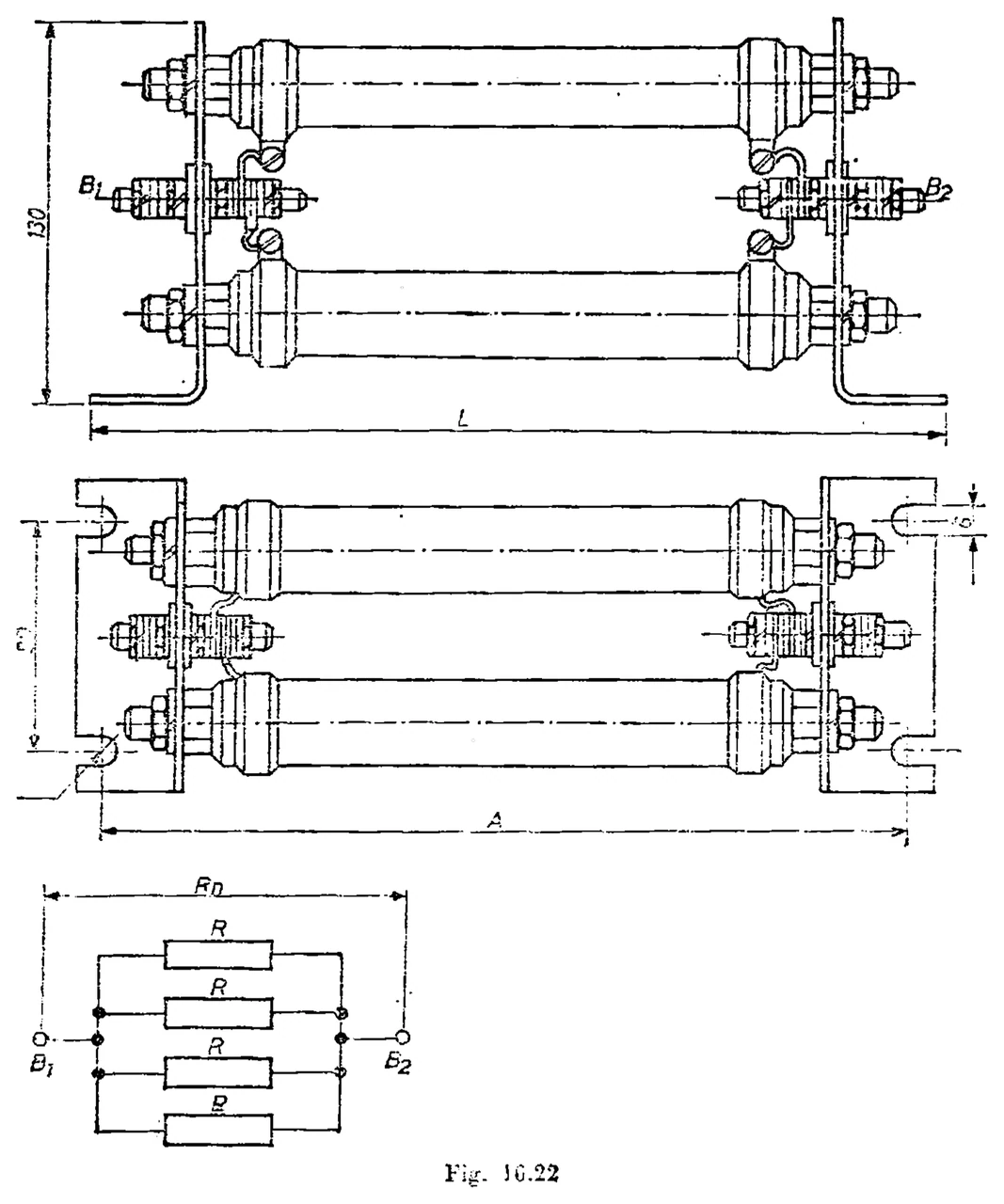

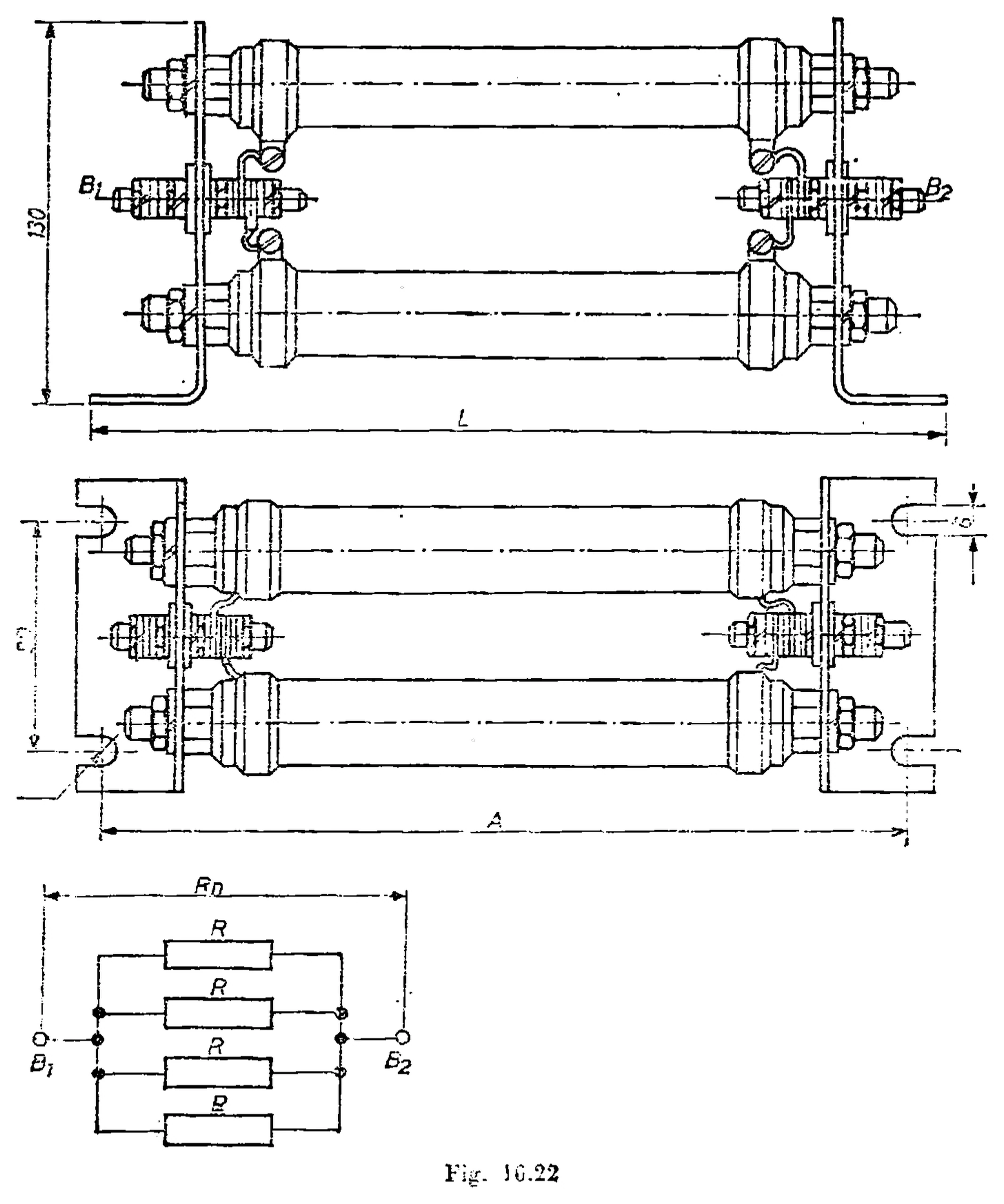

Rated power: total, at 70 °C; maximum voltage in V rms. Dimensions in mm (fig. 16.22): overall length L from the table, distance A between the fixing slots in the notes (250; smudged for RGM 7100), height 130 [1].
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 16.3.19 „Seturi de rezistoare bobinate de mare putere, seria RGM-7000”, pp. 197–198
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 16.3 „Rezistoare produse în R.S.R.”, 16.3.1 „Codificare – marcare”, p. 184
- [3]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.1.3 „Rezistoare produse în R.S.R.”, 3.1.3.1 „Codificare – marcare”, p. 153
- [4]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, sections VIII.1.2.6 and VIII.2, pp. 410 and 434–435
