General view

RMG 2012, RCG 2012

IPEE Curtea de Argeș

Year
Unknown
Category
Components
Type
Resistors
Documentation score
1/5
Last edited
16 OCT 2026

Specifications

Type
nickel film (RMG), carbon film (RCG), with end caps
Standard
STAS 7668-78
Resistance (Rn)
100 Ω…1 MΩ
Resistance, min
100 Ω
Resistance, max
1000000 Ω
Limit voltage (Unlim)
125 V
Temperature coefficient
±10·10⁻⁴/°C (Rn < 100 Ω and Rn > 100 kΩ), ±5·10⁻⁴/°C (100 Ω < Rn ≤ 100 kΩ); positive for RMG, negative for RCG
Noise factor (F)
< 3 µV/V
Climatic category
55/125/04
Package
cylindrical, with end caps, axial leads
Max. diameter (Dmax)
2.2 mm
Max. length (Lmax)
7 mm
Lead diameter (d)
0.6 mm
Application
general use

Sources: [1][2]

Variants (2)

RMG 2012100…330 Ω330
RCG 2012100 Ω…1 MΩ1000000

Click a column heading to sort. „+” adds a variant to the comparison (RMG 2012, RCG 2012).

Description

The RMG 2012 and RCG 2012 are small type II film resistors with end caps („căpăcele”) and axial leads, made to STAS 7668-78 for general use: RMG 2012 (nickel film) from 100 to 330 Ω and RCG 2012 (carbon film) from 100 Ω to 1 MΩ, with a limit voltage of 125 V [1][3].

The Agenda radioelectronistului names IPEE Electro-Argeș of Curtea de Argeș as the producer of all the resistors in its section on resistors made in Romania, in both editions [3][4]. Un secol de electronică în România says that the works, founded in 1972 as ICEP, took over the resistor lines that IPRS Băneasa made under a Thomson-CSF licence: the carbon resistors in 1973 and the wire-wound resistors in 1974 [5].

Coded as [3]:

Part Meaning
RMG construction type: general-use resistor with a nickel film
RCG construction type: general-use resistor with a carbon film
2 package type („tipul capsulei”, 1…6)
012 rated power: 0.125 W

Romanian resistors are generally marked in clear, with the series code, the nominal value (100 = 100 Ω, 1 K = 1 kΩ, 1 M = 1 MΩ), the tolerance [3]. The 1st edition (1983) gives the same data [2].

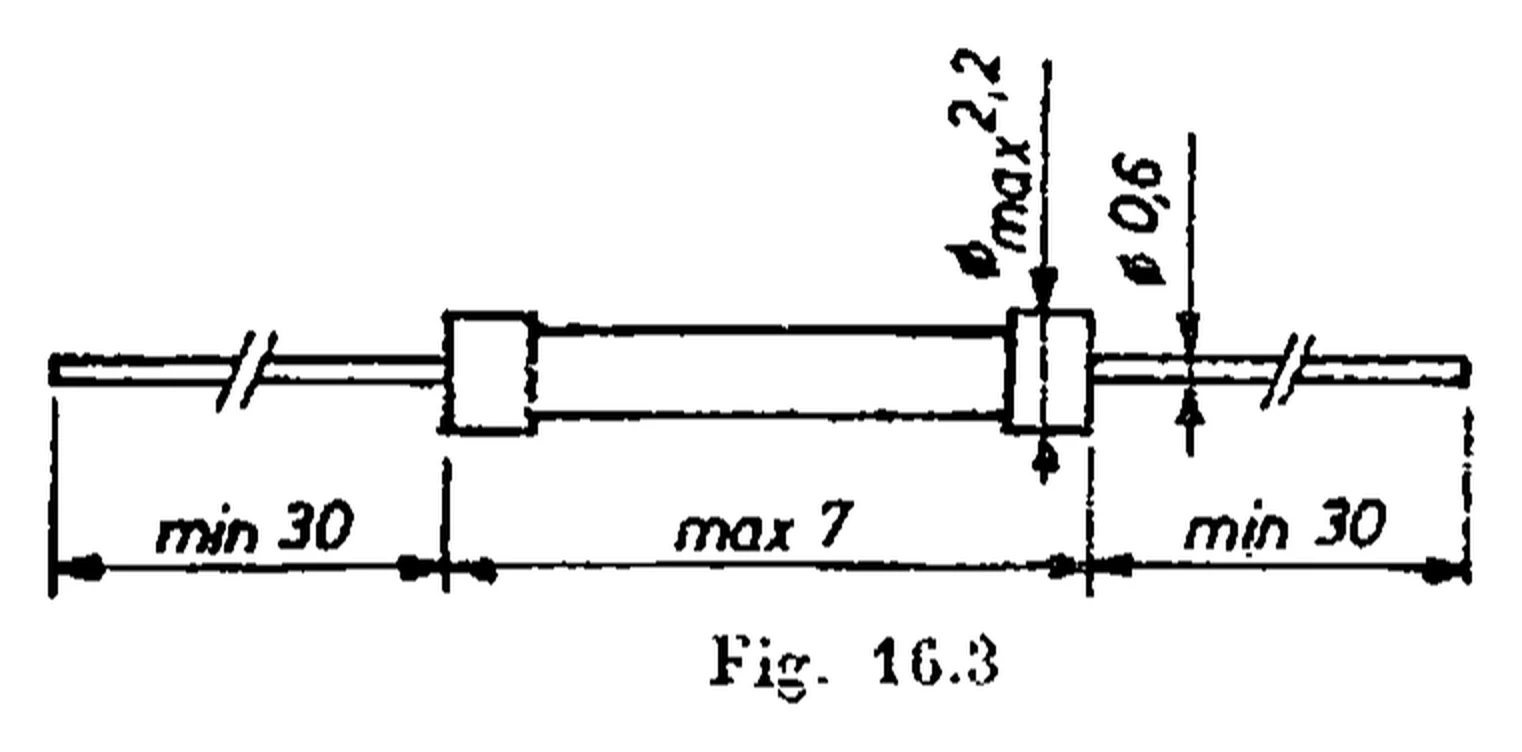

Dimensions in mm (fig. 16.3): body at most 7 long and Ø 2.2, leads Ø 0.6, at least 30 mm long [1].

Gallery

IPEE Curtea de Argeș RMG 2012, RCG 2012: Drawing (fig. 16.3)No image available
Drawing (fig. 16.3)

Documents

No documents available yet.

References

  1. [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 16.3.3 „Rezistoare peliculare cu căpăcele, tip II, seria RMG 2012 și RCG 2012”, p. 185
  2. [2]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.1.3.3 „Rezistoare peliculare cu căpăcele, tip II, seria RMG 2012 și RCG 2012”, p. 154
  3. [3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 16.3 „Rezistoare produse în R.S.R.”, 16.3.1 „Codificare – marcare”, p. 184
  4. [4]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.1.3 „Rezistoare produse în R.S.R.”, 3.1.3.1 „Codificare – marcare”, p. 153
  5. [5]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, sections VIII.1.2.6 and VIII.2, pp. 410 and 434–435
