TG-1100
IPEE Curtea de Argeș
- Manufacturer
- IPEE Curtea de Argeș
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Thermistors
- Documentation score
- 1/5
- Last edited
- 17 OCT 2026
Specifications
- Type
- NTC, general use
- Standard
- STAS 9486-78
- Resistance at 25 °C (R25)
- 10–510 Ω (see Variants)
- Tolerance
- ±20 %, ±10 %
- Temperature coefficient at 25 °C (α25)
- -4.1–-3.3 %/°C (see Variants)
- Tolerance of α25
- ±0.2 %/°C
- Material constant (B)
- 2900–3655 K (see Variants)
- Max. dissipated power (Pd max)
- 0.6–0.75 W (see Variants)
- Dissipation factor (δ)
- 8…14 mW/°C
- Dissipation factor, min
- 8 mW/°C
- Dissipation factor, max
- 14 mW/°C
- Thermal time constant (τ)
- 50–70 s (see Variants)
- Climatic category
- 10/085/04
- Marking
- 6 different values (see Variants)
- Package
- disc, lacquered
- Disc diameter (D)
- 9.5 mm
- Max. thickness (bmax)
- 4 mm
- Lead spacing (d)
- 5.1 mm
- Lead diameter
- 0.6 mm
- Min. lead length
- 45 mm
- Application
- general use
Variants (6)
| Compare | |||||||
|---|---|---|---|---|---|---|---|
| TG1101 | 10 | -3.3 | 2900 | 0.6 | 50 | colour band: black | |
| TG1102 | 12 | -3.3 | 2900 | 0.6 | 60 | colour band: red | |
| TG1105 | 51 | -3.7 | 3300 | 0.75 | 60 | colour band: orange | |
| TG1106 | 62 | -3.7 | 3300 | 0.75 | 60 | colour band: blue | |
| TG1113 | 130 | -3.7 | 3300 | 0.6 | 60 | colour band: brown | |
| TG1150 | 510 | -4.1 | 3655 | 0.75 | 70 | colour band: green |
Click a column heading to sort. „+” adds a variant to the comparison (TG-1100).
Description
The TG-1100 is a series of general-use NTC thermistors in the form of lacquered discs („lăcuite”), made to STAS 9486-78 [1]. The Agenda radioelectronistului (2nd edition, 1989) gives six types, from 10 to 510 Ω at 25 °C, with a resistance tolerance of ±20 % or ±10 %, a dissipation factor of 8…14 mW/°C and climatic category 10/085/04; each type is marked with a coloured band [1].
The Agenda radioelectronistului names IPEE Electro-Argeș of Curtea de Argeș as the producer of the thermistors in its section on thermistors made in Romania, in both editions [3][4]. Un secol de electronică în România says that IPEE Curtea de Argeș was set up in 1973 by moving the lines of „chemical” resistors („rezistențe chimice”), ceramic capacitors and thermistors from IPRS Băneasa, and that the works’ resistor catalogue (in English) covered 16 families of resistors, among them varistors and thermistors [5].

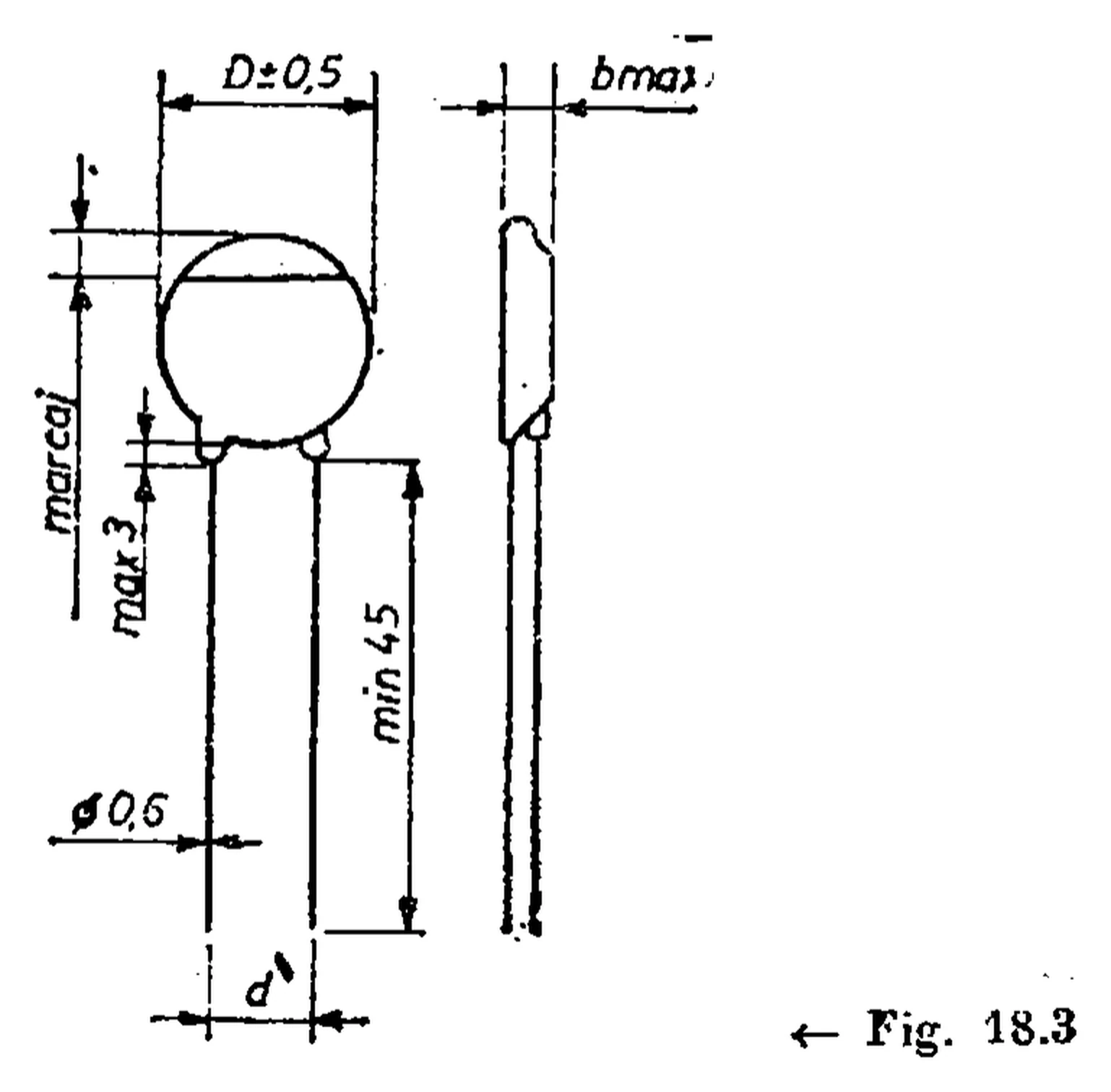

The drawing (fig. 18.3) shows where the marking is on the disc and gives leads of Ø 0.6 mm, at least 45 mm long [1]. The 1st edition (1983) has the same six types with the same values and colours (fig. 3.3.3) [2].
