TG 6000
IPEE Curtea de Argeș
- Manufacturer
- IPEE Curtea de Argeș
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Thermistors
- Documentation score
- 1/5
- Last edited
- 17 OCT 2026
Specifications
- Type
- NTC, general use
- Standard
- STAS 9486-78
- Resistance at 25 °C (R25)
- 10–510 Ω (see Variants)
- Tolerance
- ±20 %
- Temperature coefficient at 25 °C (α25)
- -4.1–-3.3 %/°C (see Variants)
- Tolerance of α25
- ±0.2 %/°C
- Material constant (B)
- 2900–3655 K (see Variants)
- Max. dissipated power (Pd max)
- 0.5–0.75 W (see Variants)
- Dissipation factor (δ)
- 8…14 mW/°C
- Dissipation factor, min
- 8 mW/°C
- Dissipation factor, max
- 14 mW/°C
- Thermal time constant (τ)
- 180–220 s (see Variants)
- Climatic category
- 10/085/04
- Marking
- 6 different values (see Variants)
- Package
- disc, encapsulated
- Lead diameter
- 0.6 mm
- Min. lead length
- 35 mm
- Application
- circuits that need insulation and/or good thermal contact
Variants (6)
| Compare | |||||||
|---|---|---|---|---|---|---|---|
| TG6001 | 10 | -3.3 | 2900 | 0.5 | 220 | coloured resin: black | |
| TG6002 | 12 | -3.3 | 2900 | 0.6 | 220 | coloured resin: red | |
| TG6005 | 51 | -3.7 | 3300 | 0.75 | 220 | coloured resin: orange | |
| TG6006 | 62 | -3.7 | 3300 | 0.75 | 220 | coloured resin: blue | |
| TG6015 | 130 | -3.7 | 3300 | 0.6 | 180 | coloured resin: brown | |
| TG6050 | 510 | -4.1 | 3655 | 0.75 | 220 | coloured resin: green |
Click a column heading to sort. „+” adds a variant to the comparison (TG 6000).
Description
The TG 6000 is a series of general-use NTC thermistors in the form of encapsulated discs („încapsulate”), made to STAS 9486-78 for circuits that need insulation and/or good thermal contact [1]. The Agenda radioelectronistului (2nd edition, 1989) gives six types, from 10 to 510 Ω at 25 °C, with a resistance tolerance of ±20 %, a dissipation factor of 8…14 mW/°C and climatic category 10/085/04; each type is marked by the colour of its resin („rășină colorată”) [1].
The Agenda radioelectronistului names IPEE Electro-Argeș of Curtea de Argeș as the producer of the thermistors in its section on thermistors made in Romania, in both editions [3][4]. Un secol de electronică în România says that IPEE Curtea de Argeș was set up in 1973 by moving the lines of „chemical” resistors („rezistențe chimice”), ceramic capacitors and thermistors from IPRS Băneasa, and that the works’ resistor catalogue (in English) covered 16 families of resistors, among them varistors and thermistors [5].

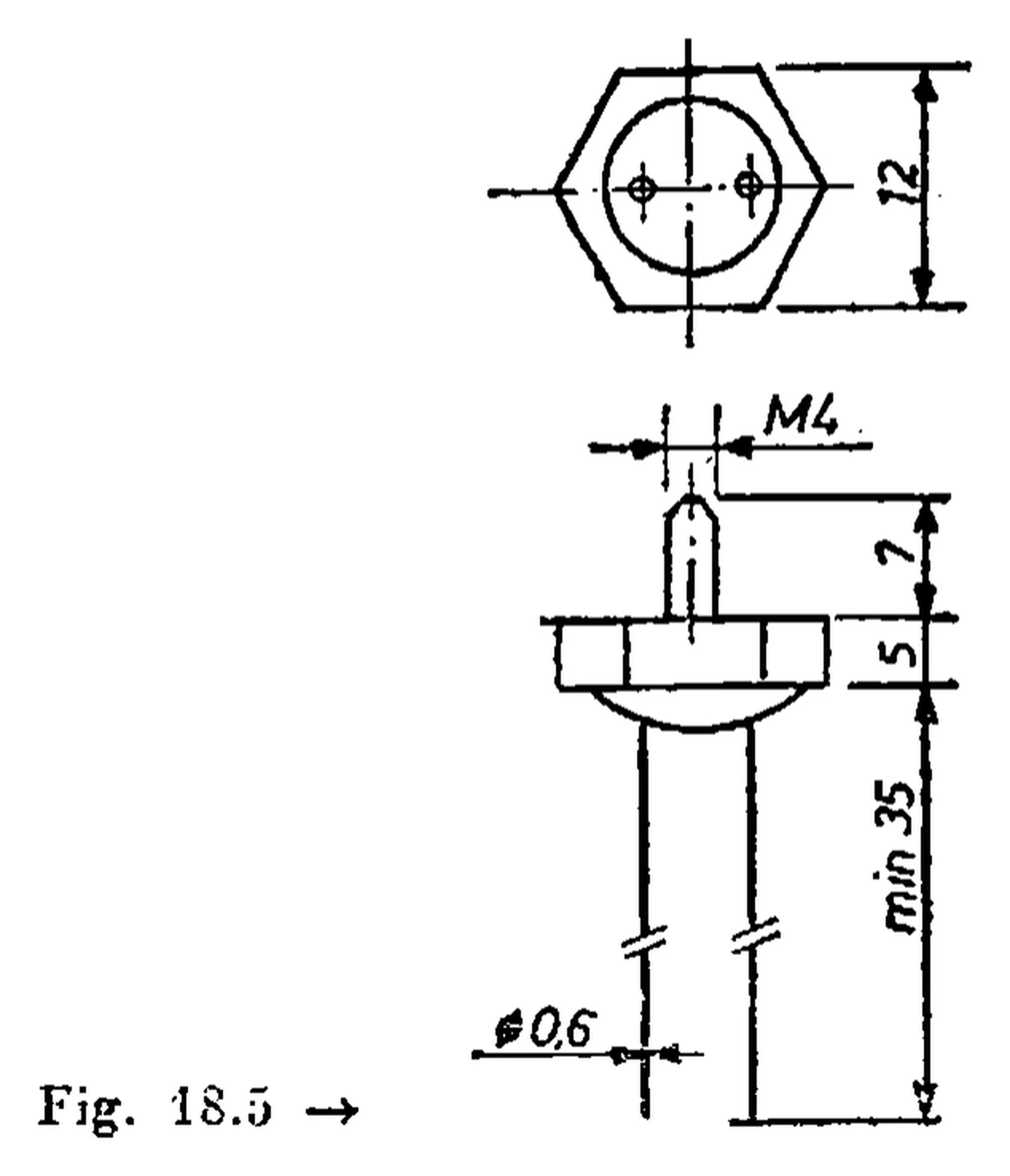

The drawing (fig. 18.5) shows a hexagonal body (12 mm) with an M4 thread and leads of Ø 0.6 mm, at least 35 mm long [1]. The 1st edition (1983) has the same six types with the same values and colours, but heads the power column „nominal dissipated power” („puterea disipată nominală”) instead of „maximum” (fig. 3.3.5) [2][1].
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 18.2.5 „Termistoare CTN, de uz general, disc, încapsulate, seria TG 6000”, pp. 227–228
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.3.2.5 „Termistoare CTN, de uz general, disc, încapsulate, seria TG 6000”, p. 197
- [3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 18.2 „Termistoare produse în R.S.R.”, p. 225
- [4]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.3.2 „Termistoare produse în R.S.R.”, p. 194
- [5]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, sections VIII.1.2.6 and VIII.2.2, pp. 410 and 435
