T3R

IPRS Băneasa

Year
Unknown
Category
Components
Type
Thyristors, diacs & triacs
Documentation score
1/5
Last edited
06 OCT 2026

Specifications

Type
thyristor, fast (R)
Repetitive peak reverse voltage (VRRM)
50–800 V (see Variants)
Max. average on-state current (IT(AV)M)
3 A
Max. repetitive peak on-state current (ITRM)
27 A
Max. surge on-state current (ITSM)
50 A
Max. peak gate power (PGM)
0.5 W
Gate trigger voltage (VGT)
3 V
Gate trigger current (IGT)
50 mA
Turn-on time (ton)
2 µs
Turn-off time (tq)
10 µs
Critical rate of rise of off-state voltage (dV/dt)
50 V/µs
Critical rate of rise of on-state current (di/dt)
50 A/µs
Package
TO-66 (F-22)

Sources: [1]

Variants (6)

T3R-0550
T3R-1100
T3R-2200
T3R-4400
T3R-6600
T3R-8800

Click a column heading to sort. „+” adds a variant to the comparison (T3R).

Description

The T3R is a series of fast silicon thyristors of 3 A listed in the Agenda radioelectronistului (2nd edition, 1989) among the thyristors made in Romania by IPRS Băneasa, in six voltage classes from 50 V (T3R-05) to 800 V (T3R-8) in a TO-66 (F-22) package [1]. The values of each code are in the Variants table.

The Agenda lists the T3R and T3N versions in one row; the values given separately for the R version are IGT = 50 mA and tq = 10 µs [1].

Coded as (IPRS Băneasa code for thyristors) [2]:

Part Meaning
T thyristor
3 on-state current IT = 3 A
R fast (short turn-off time tq)
05…8 repetitive peak reverse voltage VRRM in hundreds of volts (05 = 50 V … 8 = 800 V)

IT(AV)M at Tc = 100 °C; ITRM at Tc = 100 °C; ITSM for 10 ms; VRRM (= VDRM) at Tc = 125 °C; dV/dt at Tc = 125 °C [1].

Gallery

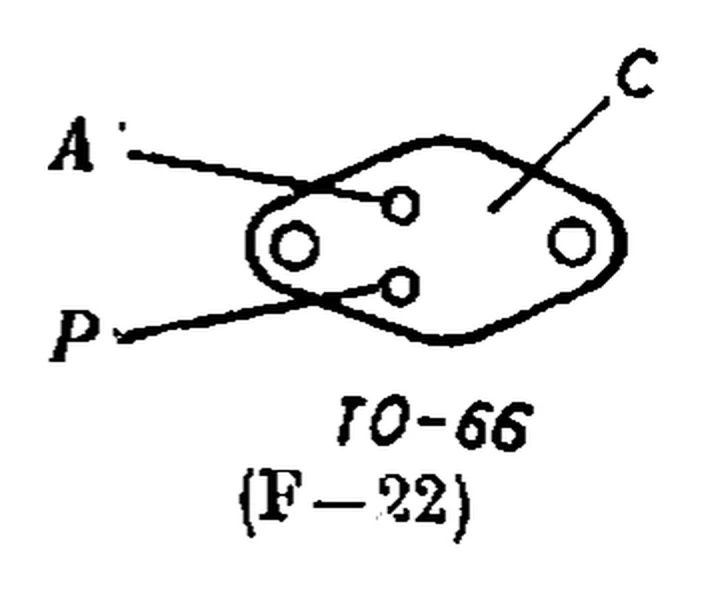

IPRS Băneasa T3R: TO-66 (F-22) thyristor pinout (A = anode, P = gate, C = cathode = case)No image available
