BSV15
IPRS Băneasa
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Transistors
- Documentation score
- 1/5
- Last edited
- 05 OCT 2026
Specifications
- Material
- Si
- Polarity
- PNP
- Max. power dissipation (Pc, Ptot, Pd)
- 3.2 W
- Max. collector–emitter voltage |Vce|
- 40 V
- Max. emitter–base voltage |Veb|
- 5 V
- Max. collector current |Ic|
- 1 A
- Max. junction temperature (Tj)
- 175 °C
- Transition frequency (ft)
- 50 MHz
- DC current gain (hFE), min
- 40
- DC current gain (hFE), max
- 250
- Collector–emitter saturation voltage (Vce sat)
- 1 V
- Turn-on time (ton)
- 500 ns
- Turn-off time (toff)
- 650 ns
- Package

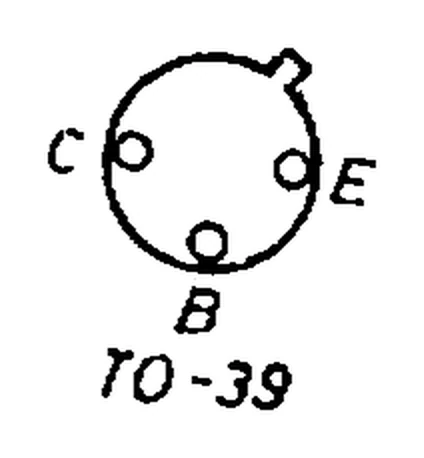

- TO-39
- Application
- switching
Sources: [1]
Description
The BSV15 is a silicon PNP switching transistor listed in the Agenda radioelectronistului (2nd edition, 1989) among the bipolar transistors made in Romania by IPRS Băneasa, in a TO-39 package [1].
Coded as (Pro Electron system) [2]:
| Part | Meaning |
|---|---|
| B | base material with an activation energy of 1.0–1.3 eV, e.g. silicon (1.1 eV) |
| S | low-power switching transistor |
| V15 | serial number for components for professional use: a letter (X, Y, Z…, with no coded meaning) and two digits (10–99) |
hFE (h21E) measured at IC = 100 mA, VCE = 1 V; Vce sat at IC = 500 mA [1].
