VP 11000

IPEE Curtea de Argeș

Also known as
VP 11.000
Year
Unknown
Category
Components
Type
Varistors
Documentation score
1/5
Last edited
17 OCT 2026

Specifications

Type
disc, lacquered
Nominal voltage (Un)
48 V
Max. repetitive voltage (Umax)
145 V
Nominal current (In)
1.7–5 mA (see Variants)
Test current (Itest)
65–152 mA (see Variants)
Rated dissipated power (Pdn)
0.4 W
Class
2–4 (see Variants)
Current asymmetry, max (A)
10 %
Temperature coefficient, max (αT)
0.8 %/°C
Climatic category
40/100/04
Marking
red dot, orange dot, yellow dot (see Variants)
Diameter (D)
12 mm
Thickness
2 mm
Lead diameter
0.8 mm
Min. lead length
50 mm
Application
protection of relay contacts

Sources: [1][2]

Variants (3)

VP 112041.7652red dot
VP 113043913orange dot
VP 1140451524yellow dot

Click a column heading to sort. „+” adds a variant to the comparison (VP 11000).

Description

The VP 11000 is a series of disc varistors protected by lacquering („protejate prin lăcuire”) for the protection of relay contacts [1]. The Agenda radioelectronistului (2nd edition, 1989) gives three types with a nominal voltage Un of 48 V, a maximum repetitive voltage of 145 V, a current asymmetry A of at most 10 %, a temperature coefficient αT of at most 0.8 %/°C, climatic category 40/100/04 and a coloured dot as the marking; they differ in the nominal current at Un (1.7, 3 and 5 mA), the test current and the class [1].

The Agenda radioelectronistului names IPEE Electro-Argeș of Curtea de Argeș as the producer of the varistors in its section on varistors made in Romania, in both editions [3][4]. Un secol de electronică în România says that the works’ resistor catalogue (in English) covered 16 families of resistors, among them varistors and thermistors [5].

Coded as [3]:

Part Meaning
V component type: varistor
G, P, T main field of use: G = low voltage, general use; P = low voltage, for protecting contacts; T = high voltage
1…9 construction type: 1 = disc without leads; 2 = the same, impregnated; 3 = lacquered disc; 4 = the same, impregnated; 5 = cylinder; 6 = the same, lacquered; 7 = bead („perlă”); 8 = the same, lacquered; 9 = washer („șaibă”)
0…6 maximum admissible current (field P): 0 = 0.5 mA, 1 = 2 mA, 2 = 1.7 mA, 3 = 3.0 mA, 4 = 5.0 mA, 5 = 9.0 mA, 6 = 15 mA
1…5 nominal current (fields G, T): 1 = 1 mA, 2 = 2 mA, 3 = 3 mA, 4 = 10 mA, 5 = 100 mA
01, 04, 08, 10, 20 rated dissipated power (Pdn): 0.1, 0.4, 0.8, 1.0 and 2.0 W
(optional) other characteristics: Un = nominal voltage, Uk = classification voltage

The book’s example is „VP 1204 – 48 V”; „1 = 2 mA” is printed so in both editions, between 0.5 and 1.7 mA [3][4]. The book does not explain the codes in its tables digit by digit.

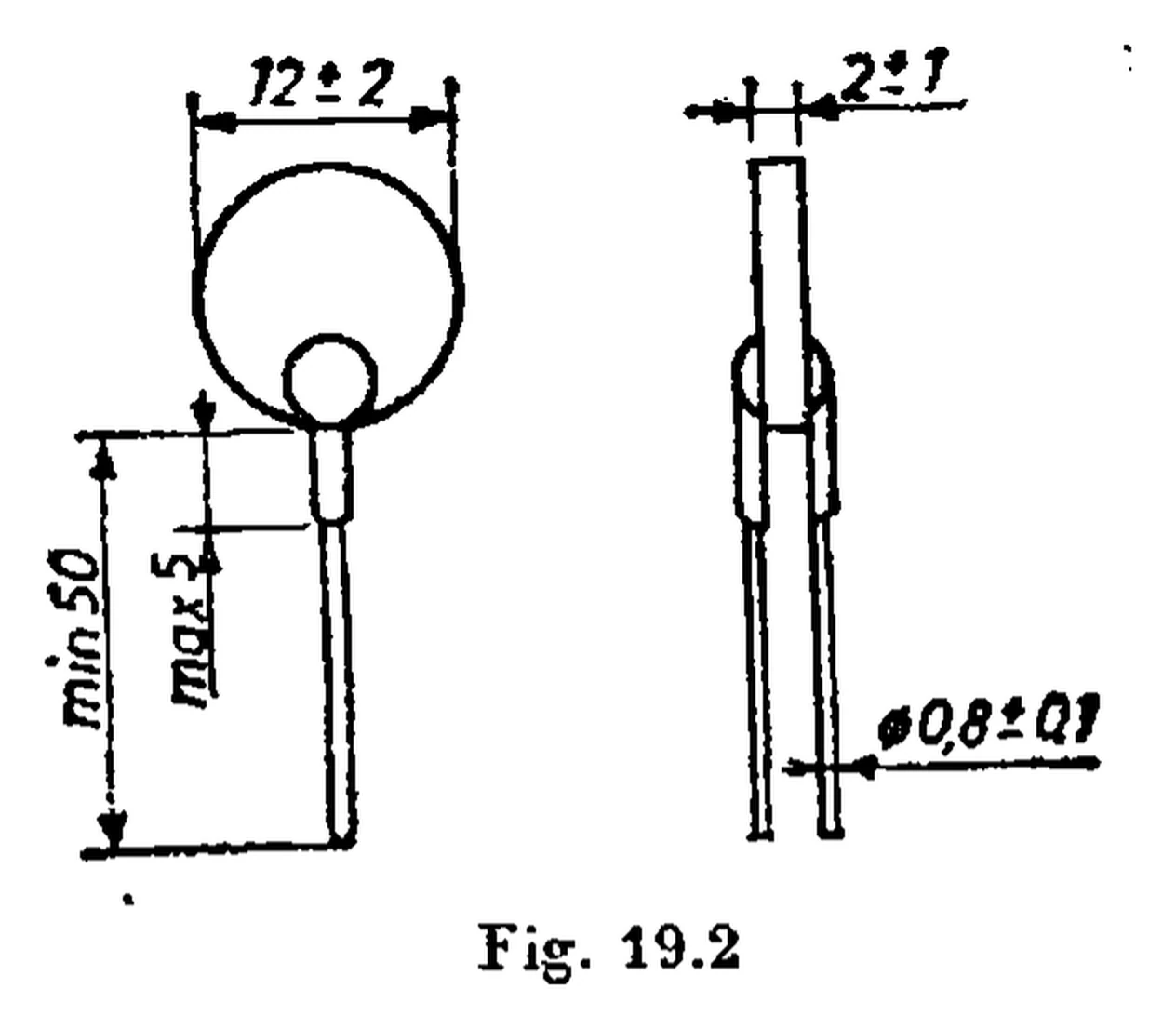

The drawing (fig. 19.2) gives a disc of 12 ± 2 mm, 2 ± 1 mm thick, with leads of Ø 0.8 ± 0.1 mm, at least 50 mm long [1]. The 1st edition (1983) has the same three types with the same values, but gives the marking as „in clear” and has no column of dot colours (fig. 3.4.2) [2].
