Specifications
- Frequency range
- 29.7–47 MHz
- Max. number of channels
- 2/10/16
- Channel spacing
- 25 kHz
- Max. spread between extreme channels
- 400 kHz
- Output power
- 6/12/20 W
- Max. frequency deviation
- ±5 kHz
- Transmitter audio response
- 300–3000 Hz
- Max. transmitter distortion
- 5 %
- Max. spurious emissions: harmonics
- 2.5 µW
- Max. spurious emissions: other
- 0.25 µW
- Sensitivity (SINAD)
- 0.4 µV
- Min. selectivity, 2 signals
- 75 dB
- Min. intermodulation ratio, 3 signals
- 65 dB
- Min. image rejection
- 80 dB
- Receiver audio response
- 300–3000 Hz
- Max. receiver distortion
- 5 %
- AF output power
- 10⁻³ W (600 Ω)
- Max. current, receiving
- 0.2 A
- Max. current, transmitting
- 4 A
- Operating temperature
- −25…+50 °C
- Power supply
- 220 V AC, 50 Hz, or 12 V DC (−15 %…+10 %)
Sources: [1]
Description
The R 8010 is a fixed radiotelephone for the 29.7–47 MHz band, made by IEMI in Bucharest [1].
The Agenda radioelectronistului (2nd edition, 1989) lists the „R-8010” („Radiotelefon fix”, fixed radiotelephone) among the fixed radiotelephones made by IEMI in Bucharest; its values are in the specifications [1]. Its channel cell, printed „2/10/162)”, carries the same note as the mobile R 8110: the band is 29.7–47 MHz and the set has a Z80 microprocessor [1]. Its audio output power is given as 10⁻³ W on 600 Ω [1].

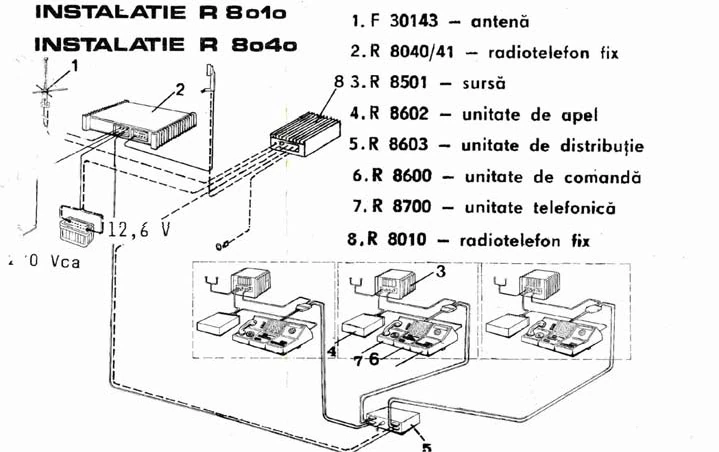

The accessories listed for it are a control unit (R-8609) and an omnidirectional antenna [1].
Gallery
No image availableSchematics
No schematics available yet.
Documents
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, chapter 48 „Principalele caracteristici ale radiotelefoanelor produse în R.S.R.” (producător: I.E.M.I. – București), pp. 698–700
