CAX 12.00, CBX 12.00, CCX 12.00
IPRS Băneasa
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Capacitors
- Documentation score
- 1/5
- Last edited
- 16 OCT 2026
Specifications
- Type
- ceramic disc, type II, high voltage
- Standard
- STAS 9507-82 (1st edition: STAS 9507-74)
- Capacitance (Cn)
- 100…3300 pF
- Capacitance, min
- 100 pF
- Capacitance, max
- 3300 pF
- Tolerance
- ±20 %, −20 %…+80 % (see Variants)
- Rated voltage (Un)
- 1000–3000 V (see Variants)
- Dissipation factor (tan δ)
- < 3.5 %
- Capacitance change with temperature
- −55…+20 %, −70…+30 % (see Variants)
- Climatic category
- 40/085/21
- Package
- disc, radial leads
- Diameter (D)
- 6–11 mm (see Variants)
- Lead spacing
- 7.6–10.6 mm (see Variants)
- Lead diameter (d)
- 0.6 mm
- Application
- general-purpose circuits
Variants (9)
| Note | Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| CAW 12.06 | 100…330 pF | 100 | 330 | ±20 % | 1000 | −55…+20 % | 6 | 7.6 | 2nd edition only | |
| CAX 12.06 | 470…680 pF | 470 | 680 | −20 %…+80 % | 1000 | −70…+30 % | 6 | 7.6 | ||
| CAX 12.08 | 1000 pF | 1000 | 1000 | −20 %…+80 % | 1000 | −70…+30 % | 8 | 7.6 | ||
| CAX 12.11 | 1500…3300 pF | 1500 | 3300 | −20 %…+80 % | 1000 | −70…+30 % | 11 | 10.6 | ||
| CBW 12.06 | 100…470 pF | 100 | 470 | ±20 % | 2000 | −55…+20 % | 6 | 7.6 | 1st edition: CBX 12.06, 220…470 pF | |
| CBX 12.08 | 680…1000 pF | 680 | 1000 | −20 %…+80 % | 2000 | −70…+30 % | 8 | 7.6 | ||
| CBX 12.11 | 1500…2200 pF | 1500 | 2200 | −20 %…+80 % | 2000 | −70…+30 % | 11 | 7.6 | ||
| CCW 12.08 | 100…680 pF | 100 | 680 | ±20 % | 3000 | −55…+20 % | 8 | 10.6 | 1st edition: „CCX 12.8”, 150…680 pF | |
| CCX 12.11 | 1000…1500 pF | 1000 | 1500 | −20 %…+80 % | 3000 | −70…+30 % | 11 | 10.2 | 1st edition prints Un „4” |
Click a column heading to sort. „+” adds a variant to the comparison (CAX 12.00, CBX 12.00, CCX 12.00).
Description
The CAX 12.00, CBX 12.00 and CCX 12.00 are series of type II high-voltage ceramic disc capacitors with radial leads, rated 1, 2 and 3 kV DC, for general-purpose circuits [1]. The Agenda radioelectronistului (2nd edition, 1989) gives them with a W version of each (CAW, CBW, CCW): −20…+80 % and a capacitance change of −70…+30 % from −40 to +85 °C, and for W ±20 % and −55…+20 %; nine rows, 100–3300 pF [1].
The Agenda does not say which works made the series: for the whole section on capacitors made in Romania it lists IPEE Electroargeș of Curtea de Argeș, Tehnoton of Iași, IIS Electronica of Bucharest and IPRS Băneasa as producers, and the 1st edition (1983) names only the first three [3][4]. It is listed here as made by IPRS Băneasa; Un secol de electronică în România says that the ceramic capacitor line of IPRS passed to IPEE Curtea de Argeș in 1973 [5].
Coded as [3]:
| Part | Meaning |
|---|---|
| CAX | construction type: as CLX (undefined temperature coefficient), for a rated voltage of 1 kV |
| COX | the same, 2 kV (printed so in the code list of both editions; the series table uses CBX) |
| CCX | the same, 3 kV |
| 12 | technological family („familia tehnologică”) |
| 06…11 | package code („codul capsulei”) |
The W letter is not in the code list [3].
Marked in clear, the code is followed by the nominal capacitance and the tolerance; the book’s example is „CGA 12.06 — 4,7 ± 0,5” (4.7 pF, tolerance 0.5 pF or %) [3].
The 1st edition (1983) has only the X series (CAX, CBX, CCX), with STAS 9507-74, other ranges and lead spacings; the W versions and CAW 12.06 are new in the 2nd edition [2][1]. The 2nd edition prints the heading „CCX(W, 12 00 (fig. 20 56)” [1].

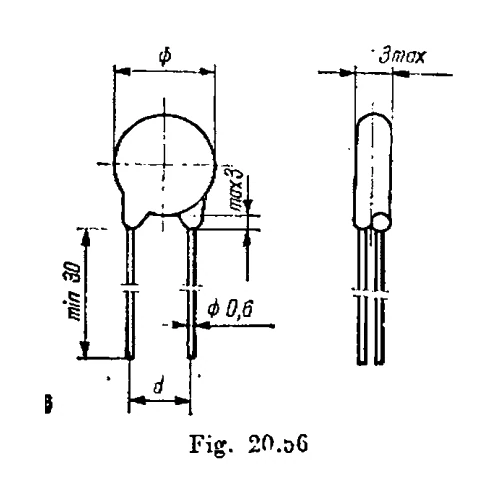

Rated voltages are DC („kVcc”). Dimensions in mm (fig. 20.56): diameter Ø and lead spacing d from the table; thickness max. 3; leads Ø 0.6, at least 30 mm long [1].
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 20.4.4.6 „Condensatoare ceramice disc, tip II, de înaltă tensiune, seriile CAX(W) 12.00; CBX(W) 12.00; CCX(W, 12 00”, p. 297
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.5.4.4.6 „Condensatoare ceramice disc, tip II, de înaltă tensiune, seriile CAX 12.00; CBX 12.00; CCX 12.00”, p. 267
- [3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, sections 20.4 „Condensatoare produse în R.S.R.” (p. 248) and 20.4.4.1 „Codificare – marcare (în clar sau în codul culorilor)” (pp. 291–293)
- [4]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, sections 3.5.4 „Condensatoare produse în R.S.R.” (p. 218) and 3.5.4.4.1 „Codificare – marcare (în clar sau în codul culorilor)” (pp. 261–263)
- [5]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, section VIII.1.2.6, pp. 408–411
