COV 10.00
IPRS Băneasa
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Capacitors
- Documentation score
- 1/5
- Last edited
- 16 OCT 2026
Specifications
- Type
- ceramic tubular, type I
- Capacitance (Cn)
- 1…2.2 pF
- Capacitance, min
- 1 pF
- Capacitance, max
- 2.2 pF
- Tolerance
- ±0.25 pF
- Rated voltage (Un)
- 500 V
- Dissipation factor (tan δ)
- < [(150/C) + 12]·10⁻⁴ (1 MHz)
- Insulation resistance (Ri)
- ≥ 10000 MΩ
- Temperature coefficient (αC)
- +250…−500 (tolerance +250/−500)·10⁻⁶/°C
- Climatic category
- 40/85/21 (as printed)
- Marking
- temperature coefficient: orange
- Package
- tubular, radial leads
- Diameter (D)
- 3 mm
- Length (L)
- 4–7 mm (see Variants)
- Lead spacing
- 5 mm
- Lead diameter (d)
- 0.5 mm
- Application
- radio-frequency circuits
Sources: [1]
Variants (3)
| Note | Compare | |||||
|---|---|---|---|---|---|---|
| COV 10.07 | 1.0; 1.2 pF | 1 | 1.2 | 7 | code printed „COV 1007” | |
| COV 10.06 | 1.0; 1.2 pF | 1 | 1.2 | 6 | code printed „COV 1006” | |
| COV 10.05 | 1.5; 2.2 pF | 1.5 | 2.2 | 4 | code printed „COV 1005” |
Click a column heading to sort. „+” adds a variant to the comparison (COV 10.00).
Description
The COV 10.00 is a series of type I tubular ceramic capacitors with radial leads, rated 500 V DC, for radio-frequency circuits [1]. The Agenda radioelectronistului (2nd edition, 1989) lists three codes, COV 10.05 to COV 10.07, with 1–2.2 pF (series E12/24); the temperature coefficient is marked in orange [1]. The series is not in the 1st edition (1983) [3], and the letters COV are not in the code list [2].
The Agenda does not say which works made the series: for the whole section on capacitors made in Romania it lists IPEE Electroargeș of Curtea de Argeș, Tehnoton of Iași, IIS Electronica of Bucharest and IPRS Băneasa as producers, and the 1st edition (1983) names only the first three [2][3]. It is listed here as made by IPRS Băneasa; Un secol de electronică în România says that the ceramic capacitor line of IPRS passed to IPEE Curtea de Argeș in 1973 [4].
The table prints the codes without a dot („COV 1007”), from the largest to the smallest, and the climatic category as „40/85/21” [1].

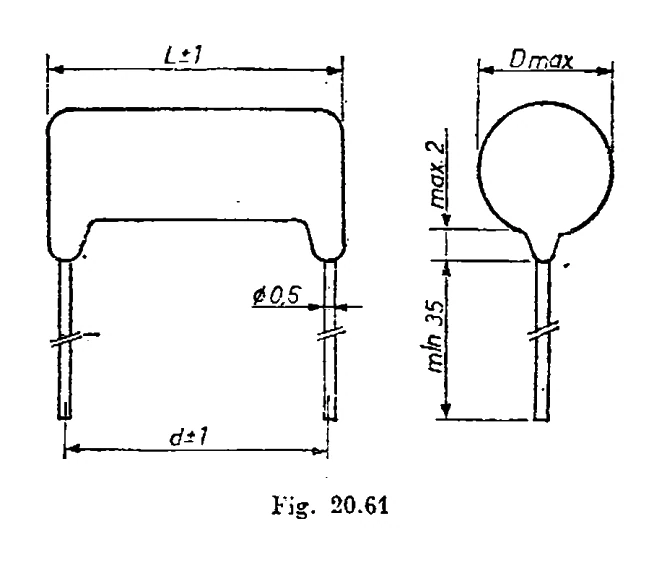

Rated voltages are DC („Vcc”). Dimensions in mm (fig. 20.61): diameter D (Dmax in the drawing), length L ± 1 and lead spacing d ± 1 from the table; leads Ø 0.5, at least 35 mm long [1].
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 20.4.4.11 „Condensatoare ceramice tubulare cu dielectric ceramic tip I, seria COV 10.00”, p. 300
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, sections 20.4 „Condensatoare produse în R.S.R.” (p. 248) and 20.4.4.1 „Codificare – marcare (în clar sau în codul culorilor)” (pp. 291–293)
- [3]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, sections 3.5.4 „Condensatoare produse în R.S.R.” (p. 218) and 3.5.4.4.1 „Codificare – marcare (în clar sau în codul culorilor)” (pp. 261–263)
- [4]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, section VIII.1.2.6, pp. 408–411
