CL 32.00
IPRS Băneasa
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Capacitors
- Documentation score
- 1/5
- Last edited
- 16 OCT 2026
Specifications
- Type
- ceramic plate, type II
- Standard
- STAS 9507-74
- Capacitance (Cn)
- 470…100000 pF
- Capacitance, min
- 470 pF
- Capacitance, max
- 100000 pF
- Tolerance
- −20…+80 / +50 %, ±10 / ±20 % (see Variants)
- Rated voltage (Un)
- 25 V
- Dissipation factor (tan δ)
- ≤ 3.5 %
- Dielectric strength
- 75 V DC
- Capacitance change with temperature
- −70…+30 %, −90…+30 %, ±20 % (see Variants)
- Climatic category
- 40/085/21
- Marking
- colour code
- Package
- rectangular plate, radial leads
- Length (L)
- 6–15 mm (see Variants)
- Lead spacing
- 5.1–7.6 mm (see Variants)
- Lead diameter (d)
- 0.6 mm
- Application
- general-purpose circuits
Variants (10)
| Note | Compare | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| CLX 32.06 | 3300…4700 pF | 3300 | 4700 | −20…+80 / +50 % | −70…+30 % | 6 | 5.1 | series E3, E6 | |
| CLX 32.10 | 5600…10000 pF | 5600 | 10000 | −20…+80 / +50 % | −70…+30 % | 10 | 7.6 | series E3, E6 | |
| CLY 32.06 | 10000 pF | 10000 | 10000 | −20…+80 / +50 % | −90…+30 % | 6 | 5.1 | series E3, E6 | |
| CLY 32.10 | 12000…22000 pF | 12000 | 22000 | −20…+80 / +50 % | −90…+30 % | 10 | 7.6 | series E3, E6 | |
| CLY 32.12 | 33000…47000 pF | 33000 | 47000 | −20…+80 / +50 % | −90…+30 % | 12 | 7.6 | series E3, E6 | |
| CLY 32.15 | 56000…100000 pF | 56000 | 100000 | −20…+80 / +50 % | −90…+30 % | 15 | 7.6 | series E3, E6 | |
| CLZ 32.06 | 470…2200 pF | 470 | 2200 | ±10 / ±20 % | ±20 % | 6 | 5.1 | series E6, E12 | |
| CLZ 32.10 | 2700…6800 pF | 2700 | 6800 | ±10 / ±20 % | ±20 % | 10 | 7.6 | series E6, E12 | |
| CLZ 32.12 | 8200…15000 pF | 8200 | 15000 | ±10 / ±20 % | ±20 % | 12 | 7.6 | series E6, E12 | |
| CLZ 32.15 | 18000…22000 pF | 18000 | 22000 | ±10 / ±20 % | ±20 % | 15 | 7.6 | series E6, E12 |
Click a column heading to sort. „+” adds a variant to the comparison (CL 32.00).
Description
The CL 32.00 is a series of type II ceramic plate capacitors with radial leads, rated 25 V DC, made to STAS 9507-74 for general-purpose circuits; they are marked in colour code [1]. The Agenda radioelectronistului (2nd edition, 1989) gives three groups, CLX, CLY and CLZ, with ten rows and 470–100000 pF [1].
The Agenda does not say which works made the series: for the whole section on capacitors made in Romania it lists IPEE Electroargeș of Curtea de Argeș, Tehnoton of Iași, IIS Electronica of Bucharest and IPRS Băneasa as producers, and the 1st edition (1983) names only the first three [3][4]. It is listed here as made by IPRS Băneasa; Un secol de electronică în România says that the ceramic capacitor line of IPRS passed to IPEE Curtea de Argeș in 1973 [5].
Coded as [3]:
| Part | Meaning |
|---|---|
| CLX | construction type: undefined temperature coefficient, capacitance change −70…+30 % from −40 to +85 °C (relative to 20 °C) |
| CLY | the same, −90…+30 % |
| CLZ | the same, ±20 % |
| 32 | technological family („familia tehnologică”) |
| 06…15 | package code („codul capsulei”) |
In colour code, fig. 20.50 (type I ceramic) shows five marks, a to e, and fig. 20.51 (type II) three marks, a, b and c, the last labelled „Dielectric sau toleranța” (dielectric or tolerance); the book’s colour table [3]:
| Colour | a: temperature coefficient (10⁻⁶/°C) | b, c: digits | d: multiplier | e: tolerance, C > 10 pF | e: tolerance, C ≤ 10 pF |
|---|---|---|---|---|---|
| black | 0 | 0 | 1 | ±20 % | – |
| brown | −33 | 1 | 10 | ±1 % | – |
| red | −75 | 2 | 10² | ±2 % | ±0.25 pF |
| orange | −150 | 3 | 10³ | ±3 % | – |
| yellow | −220 | 4 | 10⁴ | – | – |
| green | −330 | 5 | – | ±5 % | ±0.5 pF |
| blue | −470 | 6 | – | – | – |
| violet | −750 | 7 | – | – | – |
| grey | – | 8 | 10⁻² | – | – |
| white | – | 9 | 10⁻¹ | ±10 % | ±1 pF |
| gold | +100 | – | – | – | – |
The table has tolerances (±10 % for CLZ, „/+50” for CLX and CLY) that the list of characteristics (±20 %, −20…+80 %) does not have [1]. The 1st edition gives other ranges in most rows, ±20 % for CLZ and the lead spacing as 5 and 7.5 mm [2].

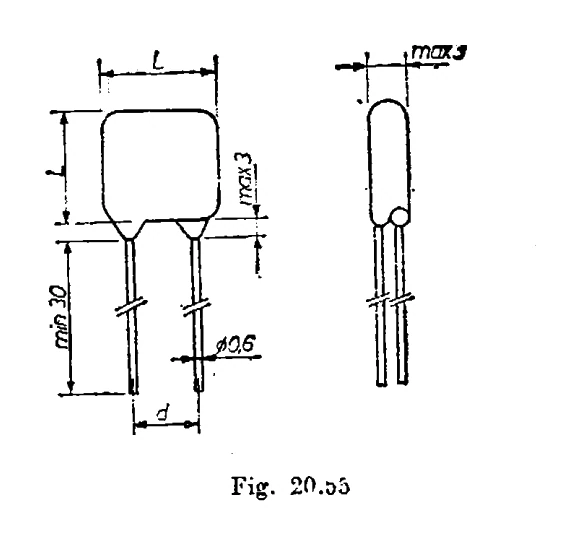

Rated voltages are DC („Vcc”). Dimensions in mm (fig. 20.55): side L (± 1, ± 2 for 15 mm) and lead spacing d from the table; thickness max. 3; leads Ø 0.6, at least 30 mm long [1].
