CTS-M 20.00
IPRS Băneasa
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Capacitors
- Documentation score
- 1/5
- Last edited
- 16 OCT 2026
Specifications
- Type
- solid tantalum, metal–glass feed-through case
- Standard
- CEI 361, 361 C, 325; NID 3412-79
- Capacitance (Cn)
- 1…330 µF
- Capacitance, min
- 1 µF
- Capacitance, max
- 330 µF
- Tolerance
- ±20 %; ±10 %
- Rated voltage (Un)
- 6.3–63 V (see Variants)
- Dissipation factor (tan δ)
- ≤ 0.08 (Cn < 100 µF), ≤ 0.1 (Cn ≥ 100 µF), at 50 Hz, +25 °C
- Leakage current (If)
- ≤ 0.04·CnUn [µF·V] or 1.5 µA, the larger (+25 °C)
- Climatic category
- 55/085/21
- Package
- metal case with glass feed-through, axial leads
- Case size
- 5 different values (see Variants)
- Diameter (D)
- 3.2–8 mm (see Variants)
- Length (L)
- 8–22 mm (see Variants)
- Lead spacing
- 17.78–33.02 mm (see Variants)
- Lead diameter (d)
- 0.5–1 mm (see Variants)
- Application
- general use, at low frequency (professional circuits)
Variants (76)
| Note | Compare | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| CTS-M 20.01 | 6.8 µF | 6.8 | 6.8 | 6.3 | 1 | 3.2 | 8 | 17.78 | 0.5 | ||
| CTS-M 20.02 | 10 µF | 10 | 10 | 6.3 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.03 | 15 µF | 15 | 15 | 6.3 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.04 | 22 µF | 22 | 22 | 6.3 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.05 | 33 µF | 33 | 33 | 6.3 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.06 | 47 µF | 47 | 47 | 6.3 | 3 | 6 | 14 | 25.4 | 0.8 | ||
| CTS-M 20.07 | 68 µF | 68 | 68 | 6.3 | 3 | 6 | 14 | 25.4 | 0.8 | ||
| CTS-M 20.08 | 100 µF | 100 | 100 | 6.3 | 4 | 8 | 14 | 25.4 | 1 | ||
| CTS-M 20.09 | 150 µF | 150 | 150 | 6.3 | 4 | 8 | 14 | 25.4 | 1 | ||
| CTS-M 20.10 | 220 µF | 220 | 220 | 6.3 | 5 | 8 | 22 | 33.02 | 1 | ||
| CTS-M 20.11 | 330 µF | 330 | 330 | 6.3 | 5 | 8 | 22 | 33.02 | 1 | ||
| CTS-M 20.12 | 3.3 µF | 3.3 | 3.3 | 10 | 1 | 3.2 | 8 | 17.78 | 0.5 | ||
| CTS-M 20.13 | 4.7 µF | 4.7 | 4.7 | 10 | 1 | 3.2 | 8 | 17.78 | 0.5 | ||
| CTS-M 20.14 | 6.8 µF | 6.8 | 6.8 | 10 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.15 | 10 µF | 10 | 10 | 10 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.16 | 15 µF | 15 | 15 | 10 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.17 | 22 µF | 22 | 22 | 10 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.18 | 33 µF | 33 | 33 | 10 | 3 | 6 | 14 | 25.4 | 0.8 | ||
| CTS-M 20.19 | 47 µF | 47 | 47 | 10 | 3 | 6 | 14 | 25.4 | 0.8 | ||
| CTS-M 20.20 | 68 µF | 68 | 68 | 10 | 4 | 8 | 14 | 25.4 | 1 | ||
| CTS-M 20.21 | 100 µF | 100 | 100 | 10 | 4 | 8 | 14 | 25.4 | 1 | ||
| CTS-M 20.22 | 150 µF | 150 | 150 | 10 | 5 | 8 | 22 | 33.02 | 1 | ||
| CTS-M 20.23 | 220 µF | 220 | 220 | 10 | 5 | 8 | 22 | 33.02 | 1 | ||
| CTS-M 20.24 | 2.2 µF | 2.2 | 2.2 | 16 | 1 | 3.2 | 8 | 17.78 | 0.5 | ||
| CTS-M 20.25 | 3.3 µF | 3.3 | 3.3 | 16 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.26 | 4.7 µF | 4.7 | 4.7 | 16 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.27 | 6.8 µF | 6.8 | 6.8 | 16 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.28 | 10 µF | 10 | 10 | 16 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.29 | 15 µF | 15 | 15 | 16 | 2 | 5 | 12 | 20.32 | 0.8 | 15 read from the 1st edition (first digit broken in the 2nd) | |
| CTS-M 20.30 | 22 µF | 22 | 22 | 16 | 3 | 6 | 14 | 25.4 | 0.8 | ||
| CTS-M 20.31 | 33 µF | 33 | 33 | 16 | 3 | 6 | 14 | 25.4 | 0.8 | ||
| CTS-M 20.32 | 47 µF | 47 | 47 | 16 | 4 | 8 | 14 | 25.4 | 1 | ||
| CTS-M 20.33 | 68 µF | 68 | 68 | 16 | 4 | 8 | 14 | 25.4 | 1 | ||
| CTS-M 20.34 | 100 µF | 100 | 100 | 16 | 5 | 8 | 22 | 33.02 | 1 | ||
| CTS-M 20.35 | 150 µF | 150 | 150 | 16 | 5 | 8 | 22 | 33.02 | 1 | ||
| CTS-M 20.36 | 1 µF | 1 | 1 | 25 | 1 | 3.2 | 8 | 17.78 | 0.5 | ||
| CTS-M 20.37 | 1.5 µF | 1.5 | 1.5 | 25 | 1 | 3.2 | 8 | 17.78 | 0.5 | ||
| CTS-M 20.38 | 2.2 µF | 2.2 | 2.2 | 25 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.39 | 3.3 µF | 3.3 | 3.3 | 25 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.40 | 4.7 µF | 4.7 | 4.7 | 25 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.41 | 6.8 µF | 6.8 | 6.8 | 25 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.42 | 10 µF | 10 | 10 | 25 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.43 | 15 µF | 15 | 15 | 25 | 3 | 6 | 14 | 25.4 | 0.8 | ||
| CTS-M 20.44 | 22 µF | 22 | 22 | 25 | 4 | 8 | 14 | 25.4 | 1 | ||
| CTS-M 20.45 | 33 µF | 33 | 33 | 25 | 4 | 8 | 14 | 25.4 | 1 | ||
| CTS-M 20.46 | 47 µF | 47 | 47 | 25 | 5 | 8 | 22 | 33.02 | 1 | ||
| CTS-M 20.47 | 68 µF | 68 | 68 | 25 | 5 | 8 | 22 | 33.02 | 1 | ||
| CTS-M 20.48 | 100 µF | 100 | 100 | 25 | 5 | 8 | 22 | 33.02 | 1 | ||
| CTS-M 20.49 | 1.5 µF | 1.5 | 1.5 | 35 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.50 | 2.2 µF | 2.2 | 2.2 | 35 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.51 | 3.3 µF | 3.3 | 3.3 | 35 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.52 | 4.7 µF | 4.7 | 4.7 | 35 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.53 | 6.8 µF | 6.8 | 6.8 | 35 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.54 | 10 µF | 10 | 10 | 35 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.55 | 15 µF | 15 | 15 | 35 | 3 | 6 | 14 | 25.4 | 0.8 | ||
| CTS-M 20.56 | 20 µF | 20 | 20 | 35 | 4 | 8 | 14 | 25.4 | 1 | as printed in both editions | |
| CTS-M 20.57 | 33 µF | 33 | 33 | 35 | 4 | 8 | 14 | 25.4 | 1 | ||
| CTS-M 20.58 | 37 µF | 37 | 37 | 35 | 5 | 8 | 22 | 33.02 | 1 | as printed in both editions | |
| CTS-M 20.59 | 68 µF | 68 | 68 | 35 | 5 | 8 | 22 | 33.02 | 1 | ||
| CTS-M 20.60 | 1.5 µF | 1.5 | 1.5 | 40 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.61 | 2.2 µF | 2.2 | 2.2 | 40 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.62 | 3.3 µF | 3.3 | 3.3 | 40 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.63 | 4.7 µF | 4.7 | 4.7 | 40 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.64 | 6.8 µF | 6.8 | 6.8 | 40 | 3 | 6 | 14 | 25.4 | 0.8 | ||
| CTS-M 20.65 | 10 µF | 10 | 10 | 40 | 4 | 8 | 14 | 25.4 | 1 | ||
| CTS-M 20.66 | 15 µF | 15 | 15 | 40 | 4 | 8 | 14 | 25.4 | 1 | ||
| CTS-M 20.67 | 22 µF | 22 | 22 | 40 | 5 | 8 | 22 | 33.02 | 1 | ||
| CTS-M 20.68 | 33 µF | 33 | 33 | 40 | 5 | 8 | 22 | 33.02 | 1 | ||
| CTS-M 20.69 | 1 µF | 1 | 1 | 63 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.70 | 1.5 µF | 1.5 | 1.5 | 63 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.71 | 2.2 µF | 2.2 | 2.2 | 63 | 2 | 5 | 12 | 20.32 | 0.8 | ||
| CTS-M 20.72 | 3.3 µF | 3.3 | 3.3 | 63 | 3 | 6 | 14 | 25.4 | 0.8 | ||
| CTS-M 20.73 | 4.7 µF | 4.7 | 4.7 | 63 | 3 | 6 | 14 | 25.4 | 0.8 | ||
| CTS-M 20.74 | 6.8 µF | 6.8 | 6.8 | 63 | 4 | 8 | 14 | 25.4 | 1 | ||
| CTS-M 20.75 | 10 µF | 10 | 10 | 63 | 5 | 8 | 22 | 33.02 | 1 | ||
| CTS-M 20.76 | 15 µF | 15 | 15 | 63 | 5 | 8 | 22 | 33.02 | 1 |
Click a column heading to sort. „+” adds a variant to the comparison (CTS-M 20.00).
Description
The CTS-M 20.00 is a series of solid-electrolyte tantalum capacitors in a metal case with a glass feed-through and axial leads, for general use at low frequency in professional circuits, made to CEI 361, 361 C, 325 and NID 3412-79 [1]. The Agenda radioelectronistului (2nd edition, 1989) lists 76 codes, CTS-M 20.01 to CTS-M 20.76, with 1–330 µF at 6.3–63 V, each in one of five case sizes [1].
The Agenda does not say which works made the series: for the whole section on capacitors made in Romania it lists IPEE Electroargeș of Curtea de Argeș, Tehnoton of Iași, IIS Electronica of Bucharest and IPRS Băneasa as producers, and the 1st edition (1983) names only the first three [3][4]. It is listed here as made by IPRS Băneasa.
Coded as [3]:
| Part | Meaning |
|---|---|
| CTS | solid-electrolyte tantalum capacitor („condensator cu tantal, cu electrolit solid”) |
| M | construction variant: metal–glass feed-through case („capsulă de trecere metal-sticlă”) |
| 20 | technological family („familia tehnologică”) |
| 01…76 | package code („codul capsulei”) |
The capacitors are marked in clear; the book’s example „CTS—M 20.05—33/6,3” gives the code, the nominal capacitance (33 µF) and the rated voltage (6.3 V) [3].
The table of case sizes also gives, in mm, the dimension l, the number of modules the capacitor takes on the board and the diameter and type of the insulator [1]:
| Case size | l | Modules on the board | Insulator diameter | Insulator type |
|---|---|---|---|---|
| 1 | 4.32 | 7 | 2.5 | 1 |
| 2 | 4.12 | 8 | 4.3 | 3 |
| 3 | 5.3 | 10 | 5.3 | 4 |
| 4 | 5.2 | 10 | 7.2 | 5 |
| 5 | 5 | 13 | 7.2 | 5 |
Printed so in both editions: 20 µF (CTS-M 20.56) and 37 µF (CTS-M 20.58) [1][2]. The capacitance of CTS-M 20.29, 15 µF, is read from the 1st edition [2]; in the 1st edition the code CTS-M 20.42 has a broken digit and reads „20.12” [2].

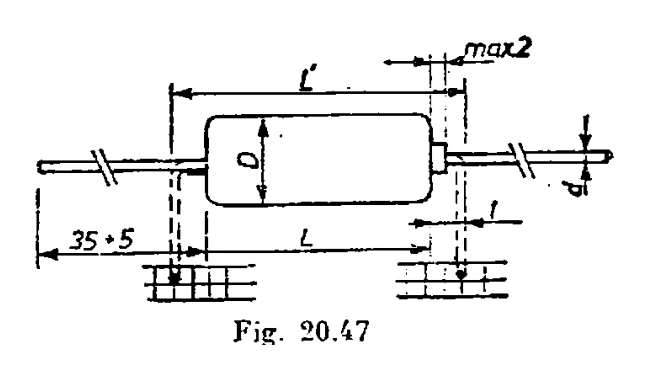

Rated voltages are DC („Vcc”). Dimensions in mm (fig. 20.47): diameter D, length L, lead diameter d and the hole spacing L′ on the board from the table of case sizes; leads 35 ± 5 mm long [1].
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 20.4.3.15 „Condensatoare cu tantal, cu electrolit solid, seria CTS-M 20.00”, pp. 287–289
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.5.4.3.15 „Condensatoare cu tantal, cu electrolit solid, seria CTS-M 20.00”, pp. 257–259
- [3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, sections 20.4 „Condensatoare produse în R.S.R.” (p. 248) and 20.4.3.1 „Codificare – marcare (în clar)” (p. 273)
- [4]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, sections 3.5.4 „Condensatoare produse în R.S.R.” (p. 218) and 3.5.4.3.1 „Codificare – marcare (în clar)” (p. 243)
- [5]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, section VIII.1.2.6, pp. 408–411
