CZ 30.00
IPRS Băneasa
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Capacitors
- Documentation score
- 1/5
- Last edited
- 16 OCT 2026
Specifications
- Type
- ceramic multilayer chip, type II
- Capacitance (Cn)
- 100…1000000 pF
- Capacitance, min
- 100 pF
- Capacitance, max
- 1000000 pF
- Tolerance
- ±5 %, ±10 %, ±20 %
- Rated voltage (Un)
- 50–200 V (see Variants)
- Dissipation factor (tan δ)
- ≤ 3 %
- Dielectric strength
- 2.5 Un
- Capacitance change with temperature
- ±20 %
- Climatic category
- 55/125/56
- Package
- chip (parallelepiped with two soldering bands)
- Length (L)
- 2.03–5.59 mm (see Variants)
- Width
- 1.27–6.35 mm (see Variants)
- Max. height (Hmax)
- 1.27–2.56 mm (see Variants)
Variants (15)
| Compare | ||||||||
|---|---|---|---|---|---|---|---|---|
| CZ 30.02 (50 V) | 100 pF … 15 nF | 100 | 15000 | 50 | 2.03 | 1.27 | 1.27 | |
| CZ 30.02 (100 V) | 100 pF … 6.8 nF | 100 | 6800 | 100 | 2.03 | 1.27 | 1.27 | |
| CZ 30.02 (200 V) | 100 pF … 3.9 nF | 100 | 3900 | 200 | 2.03 | 1.27 | 1.27 | |
| CZ 30.03 (50 V) | 2700 pF … 56 nF | 2700 | 56000 | 50 | 3.18 | 2.14 | 2.04 | |
| CZ 30.03 (100 V) | 2700 pF … 27 nF | 2700 | 27000 | 100 | 3.18 | 2.14 | 2.04 | |
| CZ 30.03 (200 V) | 2700 pF … 18 nF | 2700 | 18000 | 200 | 3.18 | 2.14 | 2.04 | |
| CZ 30.04 (50 V) | 12000 pF … 150 nF | 12000 | 150000 | 50 | 4.32 | 3.18 | 2.28 | |
| CZ 30.04 (100 V) | 12000 pF … 82 nF | 12000 | 82000 | 100 | 4.32 | 3.18 | 2.28 | |
| CZ 30.04 (200 V) | 12000 pF … 47 nF | 12000 | 47000 | 200 | 4.32 | 3.18 | 2.28 | |
| CZ 30.05 (50 V) | 39000 pF … 330 nF | 39000 | 330000 | 50 | 5 | 4.57 | 2.56 | |
| CZ 30.05 (100 V) | 39000 pF … 150 nF | 39000 | 150000 | 100 | 5 | 4.57 | 2.56 | |
| CZ 30.05 (200 V) | 39000 pF … 68 nF | 39000 | 68000 | 200 | 5 | 4.57 | 2.56 | |
| CZ 30.06 (50 V) | 120000 pF … 1000 nF | 120000 | 1000000 | 50 | 5.59 | 6.35 | 2.56 | |
| CZ 30.06 (100 V) | 120000 pF … 470 nF | 120000 | 470000 | 100 | 5.59 | 6.35 | 2.56 | |
| CZ 30.06 (200 V) | 120000 pF … 220 nF | 120000 | 220000 | 200 | 5.59 | 6.35 | 2.56 |
Click a column heading to sort. „+” adds a variant to the comparison (CZ 30.00).
Description
The CZ 30.00 is a series of type II multilayer ceramic „chip” capacitors – a parallelepiped block with two soldering bands to which leads can be attached [1]. The Agenda radioelectronistului (2nd edition, 1989) lists five package codes, CZ 30.02 to CZ 30.06, from 100 pF to 1000 nF, at 50, 100 and 200 V DC; it gives no application [1]. The table gives for each package code the smallest capacitance (in pF) and the largest (in nF) at 50, 100 and 200 V; the page lists one row per code and voltage [1].
The Agenda does not say which works made the series: for the whole section on capacitors made in Romania it lists IPEE Electroargeș of Curtea de Argeș, Tehnoton of Iași, IIS Electronica of Bucharest and IPRS Băneasa as producers, and the 1st edition (1983) names only the first three [3][4]. It is listed here as made by IPRS Băneasa; Un secol de electronică în România says that the ceramic capacitor line of IPRS passed to IPEE Curtea de Argeș in 1973 [5].
Coded as [3]:
| Part | Meaning |
|---|---|
| CZ | multilayer „chip” capacitor, type II |
| 30 | technological family („familia tehnologică”) |
| 02…06 | package code („codul capsulei”) |
The 1st edition (1983) has the same characteristics but other values in the table (largest capacitances in µF), a smaller code, CZ 30.01, and other widths for CZ 30.03, 30.05 and 30.06 [2].

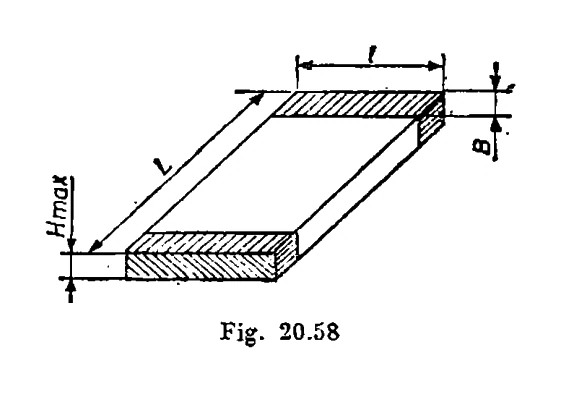

Rated voltages are DC („Vcc”). Dimensions in mm (fig. 20.58): length L ± 0.5, width l ± 0.5 and maximum height Hmax from the table; the soldering bands are B = 0.51 (CZ 30.02) or 0.76 mm (± 0.25) long [1].
