IPRS Băneasa EG 61.00

___ __ ______ _ __ / | _____________ / |/ / | | |/ / / /| | / ___/ ___/ _ \/ /|_/ / /| | | / / ___ |/ / / /__/ __/ / / / ___ |/ | /_/ |_/_/ \___/\___/_/ /_/_/ |_/_/|_|

Specifications

Type

aluminium electrolytic, miniature

Standard

STAS 7675-73

Capacitance (Cn)

4…500 µF

Capacitance, min

4 µF

Capacitance, max

500 µF

Tolerance

−20…+100 %

Rated voltage (Un)

3–50 V (see Variants)

Dissipation factor (tan δ)

≤ 0.4 (Un < 4 V), ≤ 0.3 (Un < 6.3 V), ≤ 0.25 (Un = 10…40 V), at 100 Hz, 20 °C

Leakage current (If)

≤ 0.02·CnUn + 20 µA, at 20 °C (unit printed „µV·V”)

Ripple current (I~)

1.5–64 mA (see Variants)

Climatic category

25/070/21

Package

cylindrical, two leads on one end

Diameter (D)

9.5–12.7 mm (see Variants)

Length (L)

12.7–25.4 mm (see Variants)

Lead spacing

10 mm

Application

coupling, decoupling

Variants (24)

								Note
EG 61.10	120 µF	120	120	3	9	9.5	12.7
EG 61.11 (6 V, 8 µF)	8 µF	8	8	6	1.5	9.5	12.7	printed „S/6” in the 2nd edition (1st edition: 8/6)
EG 61.11 (6 V, 100 µF)	100 µF	100	100	6	9	9.5	12.7
EG 61.12	75 µF	75	75	10	9	9.5	12.7
EG 61.13 (12 V, 25 µF)	25 µF	25	25	12	9	9.5	12.7	one ripple value printed for both capacitances
EG 61.13 (12 V, 50 µF)	50 µF	50	50	12	9	9.5	12.7	one ripple value printed for both capacitances
EG 61.15 (25 V, 4 µF)	4 µF	4	4	25	6.5	9.5	12.7
EG 61.15 (25 V, 12 µF)	12 µF	12	12	25	9	9.5	12.7
EG 61.15 (25 V, 25 µF)	25 µF	25	25	25	9	9.5	12.7
EG 61.16 (40 V, 4.7 µF)	4.7 µF	4.7	4.7	40	6.5	9.5	12.7
EG 61.16 (40 V, 10 µF)	10 µF	10	10	40	9	9.5	12.7
EG 61.20	250 µF	250	250	3	26	12.7	12.7
EG 61.21 (6 V, 150 µF)	150 µF	150	150	6	28	12.7	12.7
EG 61.21 (6 V, 200 µF)	200 µF	200	200	6	37	12.7	12.7
EG 61.22	150 µF	150	150	10	40	12.7	12.7
EG 61.23	100 µF	100	100	12	37	12.7	12.7
EG 61.25	50 µF	50	50	25	40	12.7	12.7
EG 61.27	25 µF	25	25	50	40	12.7	12.7
EG 61.30	500 µF	500	500	3	50	12.7	25.4
EG 61.31	200 µF	200	200	6	37	12.7	25.4
EG 61.32	300 µF	300	300	10	64	12.7	25.4
EG 61.33	200 µF	200	200	12	64	12.7	25.4
EG 61.35	100 µF	100	100	25	64	12.7	25.4
EG 61.37	50 µF	50	50	50	64	12.7	25.4

Click a column heading to sort. „+” adds a variant to the comparison (EG 61.00).

Description

The EG 61.00 is a series of miniature aluminium electrolytic capacitors in a cylindrical case with both leads on one end, 10 mm apart, made to STAS 7675-73 for coupling and decoupling [1]. The Agenda radioelectronistului (2nd edition, 1989) lists 18 package codes, EG 61.10 to EG 61.37, with 4–500 µF at 3–50 V and the maximum ripple current I0 of each value [1].

The Agenda does not say which works made the series: for the whole section on capacitors made in Romania it lists IPEE Electroargeș of Curtea de Argeș, Tehnoton of Iași, IIS Electronica of Bucharest and IPRS Băneasa as producers, and the 1st edition (1983) names only the first three [3][4]. It is listed here as made by IPRS Băneasa; Un secol de electronică în România says that IPRS made seven types of electrolytic capacitors, from 1 µF to 10,000 µF and from 3 V to 450 V [5].

Coded as [3]:

Part	Meaning
EG	construction type: electrolytic capacitor (of high capacitance)
61	technological family („familia tehnologică”)
10…37	package code („codul capsulei”)

The capacitors are marked in clear; the book’s example „EG 52.43—22/16” gives the code, the nominal capacitance (22 µF) and the rated voltage (16 V) [3].

The 2nd edition prints the first value of EG 61.11 as „S/6” (1st edition: 8/6) [1][2]. Both editions give the leakage current in „µV·V” and the lead diameter of the drawing as „ø80” [1][2].

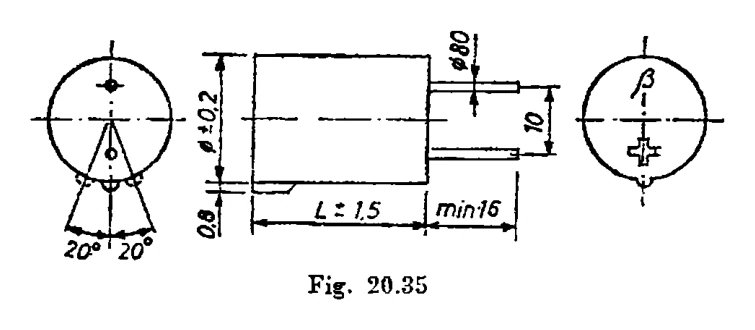

Rated voltages are DC („Vcc”). Dimensions in mm (fig. 20.35): Ø ± 0.2 and L ± 1.5 from the table; leads 10 mm apart, at least 16 mm long [1].
