EG 62.00
IPRS Băneasa
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Capacitors
- Documentation score
- 1/5
- Last edited
- 16 OCT 2026
Specifications
- Type
- aluminium electrolytic, miniature
- Standard
- STAS 7675-73
- Capacitance (Cn)
- 470…1000 µF
- Capacitance, min
- 470 µF
- Capacitance, max
- 1000 µF
- Tolerance
- −20…+50 %; −10…+100 %
- Rated voltage (Un)
- 10–16 V (see Variants)
- Dissipation factor (tan δ)
- ≤ 0.25 (100 Hz, 20 °C)
- Leakage current (If)
- ≤ 0.03·CnUn [µF·V] + 20 µA, at 20 °C
- Ripple current (I~)
- 200–360 mA (see Variants)
- Climatic category
- 25/070/21
- Package
- cylindrical, two leads on one end
- Diameter (D)
- 16–18 mm (see Variants)
- Length (L)
- 32–40.5 mm (see Variants)
- Lead spacing
- 5 mm
- Lead diameter (d)
- 0.5 mm
- Application
- coupling, decoupling, at low voltage
Variants (6)
| Compare | ||||||||
|---|---|---|---|---|---|---|---|---|
| EG 62.44 | 1000 µF | 1000 | 1000 | 16 | 360 | 18 | 40.5 | |
| EG 62.53 (10 V, 680 µF) | 680 µF | 680 | 680 | 10 | 320 | 18 | 32 | |
| EG 62.53 (10 V, 1000 µF) | 1000 µF | 1000 | 1000 | 10 | 300 | 18 | 32 | |
| EG 62.54 (16 V, 680 µF) | 680 µF | 680 | 680 | 16 | 300 | 18 | 32 | |
| EG 62.54 (16 V, 470 µF) | 470 µF | 470 | 470 | 16 | 300 | 18 | 32 | |
| EG 62.73 | 470 µF | 470 | 470 | 10 | 200 | 16 | 32 |
Click a column heading to sort. „+” adds a variant to the comparison (EG 62.00).
Description
The EG 62.00 is a series of aluminium electrolytic capacitors in a cylindrical case with both leads on one end, 5 mm apart, made to STAS 7675-73 for coupling and decoupling at low voltage [1]. The Agenda radioelectronistului (2nd edition, 1989) lists four package codes, EG 62.44 to EG 62.73, with 470–1000 µF at 10 V and 16 V and the maximum ripple current I0 of each value; the 1st edition (1983) has the same table [1][2].
The Agenda does not say which works made the series: for the whole section on capacitors made in Romania it lists IPEE Electroargeș of Curtea de Argeș, Tehnoton of Iași, IIS Electronica of Bucharest and IPRS Băneasa as producers, and the 1st edition (1983) names only the first three [3][4]. It is listed here as made by IPRS Băneasa; Un secol de electronică în România says that IPRS made seven types of electrolytic capacitors, from 1 µF to 10,000 µF and from 3 V to 450 V [5].
Coded as [3]:
| Part | Meaning |
|---|---|
| EG | construction type: electrolytic capacitor (of high capacitance) |
| 62 | technological family („familia tehnologică”) |
| 44, 53, 54, 73 | package code („codul capsulei”) |
The capacitors are marked in clear; the book’s example „EG 52.43—22/16” gives the code, the nominal capacitance (22 µF) and the rated voltage (16 V) [3].

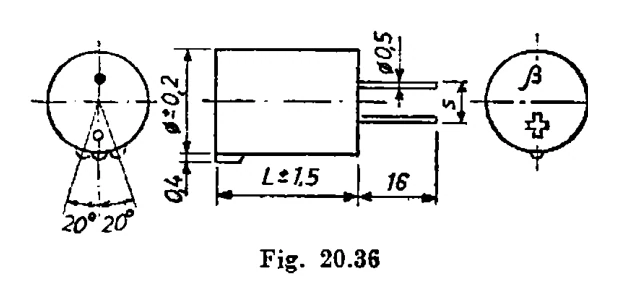

Rated voltages are DC („Vcc”). Dimensions in mm (fig. 20.36): Ø ± 0.2 and L ± 1.5 from the table; leads Ø 0.5, 5 mm apart, 16 mm long [1].
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 20.4.3.4 „Condensatoare electrolitice miniatură seria EG 62.00”, p. 276
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.5.4.3.4 „Condensatoare electrolitice miniatură seria EG 62.00”, p. 246
- [3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, sections 20.4 „Condensatoare produse în R.S.R.” (p. 248) and 20.4.3.1 „Codificare – marcare (în clar)” (p. 273)
- [4]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, sections 3.5.4 „Condensatoare produse în R.S.R.” (p. 218) and 3.5.4.3.1 „Codificare – marcare (în clar)” (p. 243)
- [5]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, section VIII.1.2.6, pp. 408–411
