IPRS Băneasa EG 70.00, EG 72.00, EG 73.00

___ __ ______ _ __ / | _____________ / |/ / | | |/ / / /| | / ___/ ___/ _ \/ /|_/ / /| | | / / ___ |/ / / /__/ __/ / / / ___ |/ | /_/ |_/_/ \___/\___/_/ /_/_/ |_/_/|_|

Specifications

Type

aluminium electrolytic, high capacitance

Standard

STAS 7675-73

Capacitance (Cn)

680…6850 µF

Capacitance, min

680 µF

Capacitance, max

6850 µF

Tolerance

−10…+50 %

Rated voltage (Un)

25–63 V (see Variants)

Dissipation factor (tan δ)

≤ 0.3 (Un = 25 V), ≤ 0.25 (Un = 40…63 V), at 100 Hz, 20 °C

Leakage current (If)

≤ 0.03·CnUn [µF·V] + 20 µA, at 20 °C

Ripple current (I~)

70–1500 mA (see Variants)

Climatic category

40/070/21

Marking

negative terminal marked with paint

Construction

6 different values (see Variants)

Package

cylindrical can (six versions)

Diameter (D)

20–33 mm (see Variants)

Length (L)

35–69 mm (see Variants)

Application

filtering in low-voltage rectifiers

Variants (17)

									Note
EG 70.20	1000 µF	1000	1000	25	600	fig. 20.39 a: axial, flat lugs	20	41
EG 70.21	1000 µF	1000	1000	25	600	fig. 20.39 b: axial, small eyelet lugs	20	41	values printed in one cell with EG 70.20
EG 70.25	680 µF	680	680	63	800	fig. 20.39 a: axial, flat lugs	29	41
EG 70.26	680 µF	680	680	63	800	fig. 20.39 b: axial, small eyelet lugs	29	41	values printed in one cell with EG 70.25
EG 70.27	680 µF	680	680	63	800	fig. 20.39 c: M16 threaded stud and lug	29	43.5
EG 72.40 (680 µF, 400 mA)	680 µF	680	680	25	400	fig. 20.39 d: two lugs on one end	25	42
EG 72.40 (1000 µF, 600 mA)	1000 µF	1000	1000	25	600	fig. 20.39 d: two lugs on one end	25	42
EG 72.40 (1000 µF, 70 mA)	1000 µF	1000	1000	25	70	fig. 20.39 d: two lugs on one end	25	42
EG 72.70 (40 V, 3300 µF)	3300 µF	3300	3300	40	1000	fig. 20.39 e: two lugs on one end, flanged	33	69
EG 72.70 (40 V, 4750 µF)	4750 µF	4750	4750	40	1200	fig. 20.39 e: two lugs on one end, flanged	33	69
EG 72.70 (40 V, 6850 µF)	6850 µF	6850	6850	40	1500	fig. 20.39 e: two lugs on one end, flanged	33	69
EG 73.35 (40 V, 680 µF)	680 µF	680	680	40	500	fig. 20.39 f: base with three pins	30	35
EG 73.35 (40 V, 1000 µF)	1000 µF	1000	1000	40	700	fig. 20.39 f: base with three pins	30	35
EG 73.35 (40 V, 1500 µF)	1500 µF	1500	1500	40	800	fig. 20.39 f: base with three pins	30	35
EG 73.50 (25 V, 1000 µF)	1000 µF	1000	1000	25	600	fig. 20.39 f: base with three pins	30	41
EG 73.50 (25 V, 1500 µF)	1500 µF	1500	1500	25	700	fig. 20.39 f: base with three pins	30	41
EG 73.50 (25 V, 2200 µF)	2200 µF	2200	2200	25	900	fig. 20.39 f: base with three pins	30	41

Click a column heading to sort. „+” adds a variant to the comparison (EG 70.00, EG 72.00, EG 73.00).

Description

The EG 70.00, EG 72.00 and EG 73.00 are series of high-capacitance aluminium electrolytic capacitors, given in one table of the Agenda radioelectronistului (2nd edition, 1989), made to STAS 7675-73 for filtering in low-voltage rectifiers; the negative terminal is marked with paint [1]. The table lists nine codes, EG 70.20 to EG 73.50, with 680–6850 µF at 25–63 V, the maximum ripple current I0 of each value and one of six drawings, a to f [1].

The Agenda does not say which works made the series: for the whole section on capacitors made in Romania it lists IPEE Electroargeș of Curtea de Argeș, Tehnoton of Iași, IIS Electronica of Bucharest and IPRS Băneasa as producers, and the 1st edition (1983) names only the first three [3][4]. It is listed here as made by IPRS Băneasa; Un secol de electronică în România says that IPRS made seven types of electrolytic capacitors, from 1 µF to 10,000 µF and from 3 V to 450 V [5].

Coded as [3]:

Part	Meaning
EG	construction type: electrolytic capacitor (of high capacitance)
70, 72, 73	technological family („familia tehnologică”)
20, 21, 25, 26, 27 (EG 70); 40, 70 (EG 72); 35, 50 (EG 73)	package code („codul capsulei”)

The capacitors are marked in clear; the book’s example „EG 52.43—22/16” gives the code, the nominal capacitance (22 µF) and the rated voltage (16 V) [3].

Values kept as printed in both editions: EG 72.40 has 1000 µF at 25 V twice, with 600 mA and 70 mA, and EG 72.70 has 4750 µF and 6850 µF [1][2]. EG 70.20 and EG 70.21, and EG 70.25 and EG 70.26, share one cell and differ only in the drawing (a or b) [1]. For EG 73.50 the 1st edition prints the third ripple current as „000” (2nd edition: 900) [2][1].

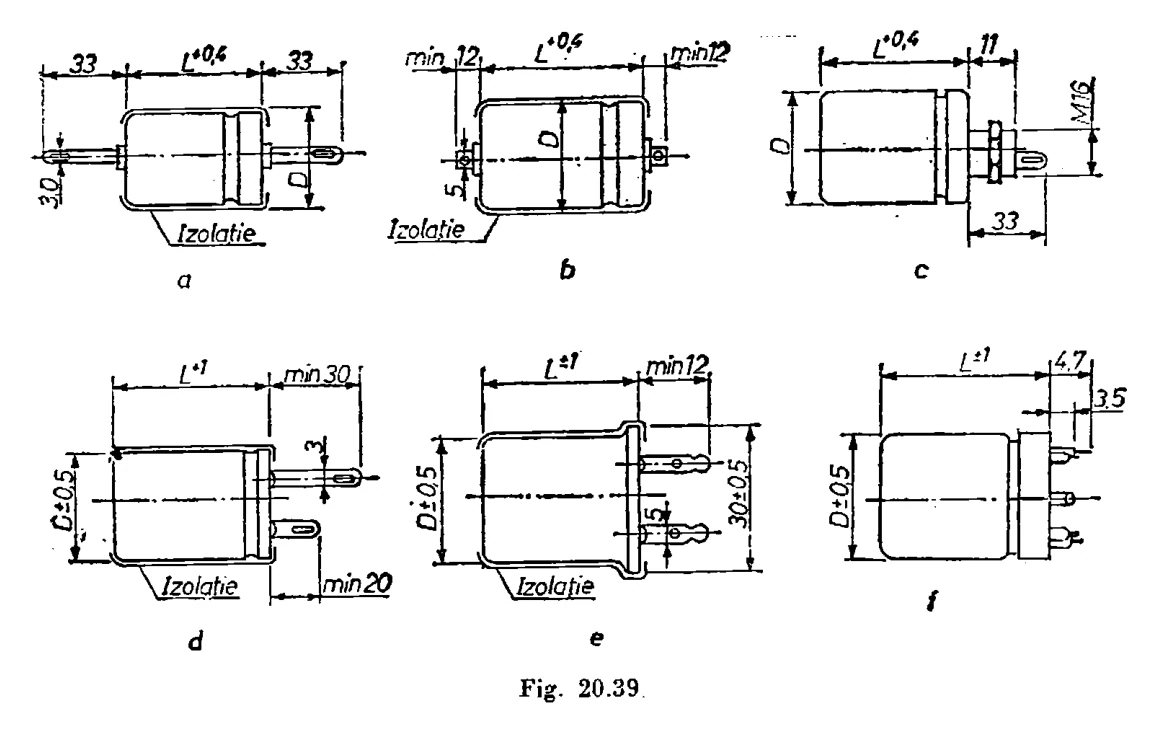

Rated voltages are DC („Vcc”). Dimensions in mm (fig. 20.39 a…f): diameter D and length L from the table; a, b – axial, with insulation; c – M16 threaded stud and one lug on one end; d, e – two lugs on one end, with insulation; f – base with three pins [1].

References

[1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 20.4.3.7 „Condensatoare electrolitice de mare capacitate seriile EG 70.00; EG 72.00 și EG 73.00”, pp. 278–279

[2]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.5.4.3.7 „Condensatoare electrolitice de mare capacitate seriile EG 70.00; EG 72.00 și EG 73.00”, pp. 248–249

[3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, sections 20.4 „Condensatoare produse în R.S.R.” (p. 248) and 20.4.3.1 „Codificare – marcare (în clar)” (p. 273)

[4]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, sections 3.5.4 „Condensatoare produse în R.S.R.” (p. 218) and 3.5.4.3.1 „Codificare – marcare (în clar)” (p. 243)

[5]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, section VIII.1.2.6, pp. 408–411
