EG 74.00
IPRS Băneasa
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Capacitors
- Documentation score
- 1/5
- Last edited
- 16 OCT 2026
Specifications
- Type
- aluminium electrolytic, polarised, high capacitance
- Standard
- STAS 7675-73
- Capacitance (Cn)
- 100…6800 µF
- Capacitance, min
- 100 µF
- Capacitance, max
- 6800 µF
- Tolerance
- −10…+100 %; −10…+50 %
- Rated voltage (Un)
- 16–100 V (see Variants)
- Dissipation factor (tan δ)
- ≤ 0.45 (Un = 16 V), ≤ 0.35 (25 V), ≤ 0.25 (40…63 V), ≤ 0.20 (100 V), at 100 Hz, 20 °C
- Leakage current (If)
- ≤ 0.3·CnUn [µF·V] + 20 µA, at 20 °C (0.3 as printed)
- Ripple current (I~)
- 350–3000 mA (see Variants)
- Climatic category
- 25/070/21
- Package
- cylindrical, axial leads
- Diameter (D)
- 20–30 mm (see Variants)
- Length (L)
- 38–65 mm (see Variants)
- Application
- filtering in low-voltage rectifiers
Variants (27)
| Note | Compare | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| EG 74.73 (25 V) | 680 µF | 680 | 680 | 25 | 680 | 20 | 38 | smudged in the 2nd edition; read with the 1st | |
| EG 74.73 (40 V) | 470 µF | 470 | 470 | 40 | 680 | 20 | 38 | smudged in the 2nd edition; read with the 1st | |
| EG 74.73 (63 V) | 220 µF | 220 | 220 | 63 | 450 | 20 | 38 | smudged in the 2nd edition; read with the 1st | |
| EG 74.73 (100 V) | 100 µF | 100 | 100 | 100 | 350 | 20 | 38 | smudged in the 2nd edition; read with the 1st | |
| EG 74.74 (25 V) | 1000 µF | 1000 | 1000 | 25 | 950 | 20 | 50 | ||
| EG 74.74 (40 V) | 680 µF | 680 | 680 | 40 | 930 | 20 | 50 | ||
| EG 74.74 (63 V) | 330 µF | 330 | 330 | 63 | 650 | 20 | 50 | ||
| EG 74.74 (100 V) | 150 µF | 150 | 150 | 100 | 470 | 20 | 50 | ||
| EG 74.75 (16 V) | 2200 µF | 2200 | 2200 | 16 | 1200 | 25 | 38 | ||
| EG 74.75 (63 V) | 470 µF | 470 | 470 | 63 | 770 | 25 | 38 | ||
| EG 74.76 (25 V) | 1500 µF | 1500 | 1500 | 25 | 1300 | 20 | 65 | ||
| EG 74.76 (40 V) | 1000 µF | 1000 | 1000 | 40 | 1260 | 20 | 65 | ||
| EG 74.76 (100 V) | 220 µF | 220 | 220 | 100 | 560 | 20 | 65 | ||
| EG 74.77 (16 V) | 3300 µF | 3300 | 3300 | 16 | 1800 | 25 | 50 | ||
| EG 74.77 (25 V) | 2200 µF | 2200 | 2200 | 25 | 1600 | 25 | 50 | ||
| EG 74.78 (16 V) | 4700 µF | 4700 | 4700 | 16 | 2500 | 30 | 50 | ||
| EG 74.78 (40 V) | 1500 µF | 1500 | 1500 | 40 | 1700 | 30 | 50 | ||
| EG 74.78 (63 V, 680 µF) | 680 µF | 680 | 680 | 63 | 1050 | 30 | 50 | ||
| EG 74.78 (63 V, 1000 µF) | 1000 µF | 1000 | 1000 | 63 | 1400 | 30 | 50 | ||
| EG 74.78 (100 V) | 330 µF | 330 | 330 | 100 | 800 | 30 | 50 | ||
| EG 74.80 (16 V) | 6800 µF | 6800 | 6800 | 16 | 3000 | 30 | 65 | ||
| EG 74.80 (25 V, 3300 µF) | 3300 µF | 3300 | 3300 | 25 | 2200 | 30 | 65 | ||
| EG 74.80 (25 V, 4700 µF) | 4700 µF | 4700 | 4700 | 25 | 2900 | 30 | 65 | ||
| EG 74.80 (40 V) | 2200 µF | 2200 | 2200 | 40 | 2130 | 30 | 65 | ||
| EG 74.80 (63 V) | 1500 µF | 1500 | 1500 | 63 | 1900 | 30 | 65 | ||
| EG 74.80 (100 V, 470 µF) | 470 µF | 470 | 470 | 100 | 1200 | 30 | 65 | ||
| EG 74.80 (100 V, 680 µF) | 680 µF | 680 | 680 | 100 | 1400 | 30 | 65 |
Click a column heading to sort. „+” adds a variant to the comparison (EG 74.00).
Description
The EG 74.00 is a series of polarised high-capacitance aluminium electrolytic capacitors in a cylindrical case with axial leads, made to STAS 7675-73 for filtering in low-voltage rectifiers [1]. The Agenda radioelectronistului (2nd edition, 1989) lists seven package codes, EG 74.73 to EG 74.80, with 100–6800 µF at 16–100 V and the maximum ripple current I0 of each value [1].
The Agenda does not say which works made the series: for the whole section on capacitors made in Romania it lists IPEE Electroargeș of Curtea de Argeș, Tehnoton of Iași, IIS Electronica of Bucharest and IPRS Băneasa as producers, and the 1st edition (1983) names only the first three [3][4]. It is listed here as made by IPRS Băneasa; Un secol de electronică în România says that IPRS made seven types of electrolytic capacitors, from 1 µF to 10,000 µF and from 3 V to 450 V [5].
Coded as [3]:
| Part | Meaning |
|---|---|
| EG | construction type: electrolytic capacitor (of high capacitance) |
| 74 | technological family („familia tehnologică”) |
| 73…80 | package code („codul capsulei”) |
The capacitors are marked in clear; the book’s example „EG 52.43—22/16” gives the code, the nominal capacitance (22 µF) and the rated voltage (16 V) [3].
Both editions print the leakage-current coefficient as 0.3 (the other EG series have 0.03 or more) [1][2]. Several cells of EG 74.73 are smudged in the 2nd edition and are read with the 1st, which has the same values [1][2]. The drawing gives one lead as „max60±2” [1].

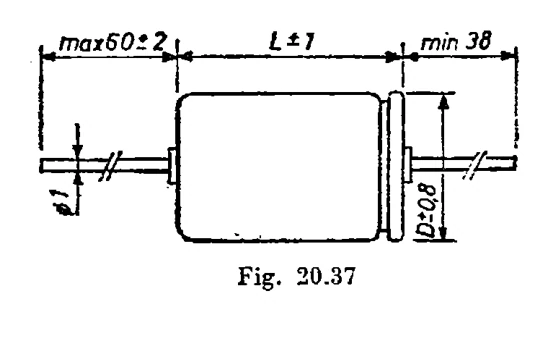

Rated voltages are DC („Vcc”). Dimensions in mm (fig. 20.37): D ± 0.8 and L ± 1 from the table; leads Ø 1, one at least 38 mm long [1].
