MZ 32.00
IPRS Băneasa
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Capacitors
- Documentation score
- 1/5
- Last edited
- 16 OCT 2026
Specifications
- Type
- ceramic multilayer, type II, encapsulated
- Capacitance (Cn)
- 100…1500000 pF
- Capacitance, min
- 100 pF
- Capacitance, max
- 1500000 pF
- Tolerance
- ±5 %, ±10 %, ±20 %
- Rated voltage (Un)
- 25–200 V (see Variants)
- Dielectric strength
- 2.5 Un
- Capacitance change with temperature
- ±20 % (−55…+125 °C)
- Climatic category
- 55/125/56
- Package
- encapsulated, radial leads
- Max. length (Lmax)
- 4–10.5 mm (see Variants)
- Max. height (Hmax)
- 4–10 mm (see Variants)
- Lead spacing
- 2.54–5.08 mm (see Variants)
- Application
- general-purpose miniaturised circuits
Variants (20)
| Note | Compare | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| MZ 32.02 (25 V) | 100 pF … 22 nF | 100 | 22000 | 25 | 4 | 4 | 2.54 | ||
| MZ 32.02 (50 V) | 100 pF … 15 nF | 100 | 15000 | 50 | 4 | 4 | 2.54 | ||
| MZ 32.02 (100 V) | 100 pF … 8.2 nF | 100 | 8200 | 100 | 4 | 4 | 2.54 | ||
| MZ 32.02 (200 V) | 100 pF … 3.9 nF | 100 | 3900 | 200 | 4 | 4 | 2.54 | ||
| MZ 32.03 (25 V) | 3300 pF … 82 nF | 3300 | 82000 | 25 | 6 | 5 | 2.54 | ||
| MZ 32.03 (50 V) | 3300 pF … 56 nF | 3300 | 56000 | 50 | 6 | 5 | 2.54 | ||
| MZ 32.03 (100 V) | 3300 pF … 33 nF | 3300 | 33000 | 100 | 6 | 5 | 2.54 | ||
| MZ 32.03 (200 V) | 3300 pF … 18 nF | 3300 | 18000 | 200 | 6 | 5 | 2.54 | ||
| MZ 32.04 (25 V) | 15000 pF … 220 nF | 15000 | 220000 | 25 | 7.5 | 6.5 | 5.08 | ||
| MZ 32.04 (50 V) | 15000 pF … 120 nF | 15000 | 120000 | 50 | 7.5 | 6.5 | 5.08 | ||
| MZ 32.04 (100 V) | 15000 pF … 82 nF | 15000 | 82000 | 100 | 7.5 | 6.5 | 5.08 | ||
| MZ 32.04 (200 V) | 15000 pF … 56 nF | 15000 | 56000 | 200 | 7.5 | 6.5 | 5.08 | ||
| MZ 32.05 (25 V) | 39000 pF … 470 nF | 39000 | 470000 | 25 | 9 | 7.5 | 5.08 | ||
| MZ 32.05 (50 V) | 39000 pF … 330 nF | 39000 | 330000 | 50 | 9 | 7.5 | 5.08 | ||
| MZ 32.05 (100 V) | 39000 pF … 180 nF | 39000 | 180000 | 100 | 9 | 7.5 | 5.08 | ||
| MZ 32.05 (200 V) | 39000 pF … 100 nF | 39000 | 100000 | 200 | 9 | 7.5 | 5.08 | ||
| MZ 32.06 (25 V) | 82000 pF … 1500 nF | 82000 | 1500000 | 25 | 10.5 | 10 | 5.08 | S printed „5,0З” | |
| MZ 32.06 (50 V) | 82000 pF … 1000 nF | 82000 | 1000000 | 50 | 10.5 | 10 | 5.08 | S printed „5,0З” | |
| MZ 32.06 (100 V) | 82000 pF … 470 nF | 82000 | 470000 | 100 | 10.5 | 10 | 5.08 | S printed „5,0З” | |
| MZ 32.06 (200 V) | 82000 pF … 220 nF | 82000 | 220000 | 200 | 10.5 | 10 | 5.08 | S printed „5,0З” |
Click a column heading to sort. „+” adds a variant to the comparison (MZ 32.00).
Description
The MZ 32.00 is a series of encapsulated type II multilayer ceramic „chip” capacitors with radial leads, for general-purpose miniaturised circuits [1]. The Agenda radioelectronistului (2nd edition, 1989) lists five package codes, MZ 32.02 to MZ 32.06, from 100 pF to 1500 nF, at 25, 50, 100 and 200 V DC; it gives no dissipation factor [1].
The Agenda does not say which works made the series: for the whole section on capacitors made in Romania it lists IPEE Electroargeș of Curtea de Argeș, Tehnoton of Iași, IIS Electronica of Bucharest and IPRS Băneasa as producers, and the 1st edition (1983) names only the first three [3][4]. It is listed here as made by IPRS Băneasa; Un secol de electronică în România says that the ceramic capacitor line of IPRS passed to IPEE Curtea de Argeș in 1973 [5].
Coded as [3]:
| Part | Meaning |
|---|---|
| MZ | multilayer „chip” capacitor, type II, encapsulated |
| 32 | technological family („familia tehnologică”) |
| 02…06 | package code („codul capsulei”) |
The 2nd edition prints the tolerances „± 5 %; + 10 %; + 20 %” and the lead spacing of MZ 32.06 „5,0З”; the 1st edition (1983) has other capacitances (largest in µF) and dimensions and a larger code, MZ 32.07 [1][2].

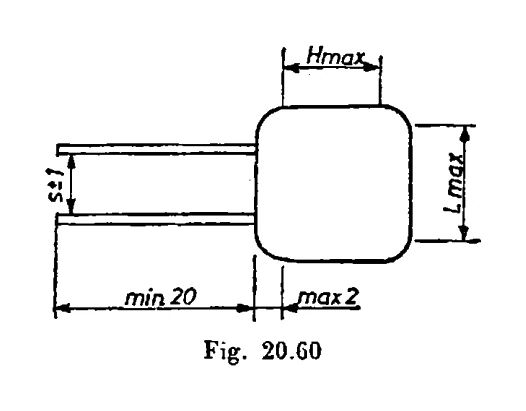

Rated voltages are DC („Vcc”). Dimensions in mm (fig. 20.60): maximum length Lmax, maximum height Hmax and lead spacing S ± 1 from the table; leads at least 20 mm long; the coating may run 2 mm down the leads [1].
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 20.4.4.10 „Condensatoare ceramice multistrat „chip”, tip II, încapsulate, seria MZ 32.00”, p. 299
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.5.4.4.10 „Condensatoare ceramice multistrat „chip”, tip II, încapsulate, seria MZ 32.00”, pp. 269–270
- [3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, sections 20.4 „Condensatoare produse în R.S.R.” (p. 248) and 20.4.4.1 „Codificare – marcare (în clar sau în codul culorilor)” (pp. 291–293)
- [4]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, sections 3.5.4 „Condensatoare produse în R.S.R.” (p. 218) and 3.5.4.4.1 „Codificare – marcare (în clar sau în codul culorilor)” (pp. 261–263)
- [5]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, section VIII.1.2.6, pp. 408–411
