PMP 02.00
IPRS Băneasa
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Capacitors
- Documentation score
- 1/5
- Last edited
- 16 OCT 2026
Specifications
- Type
- metallised polyester
- Standard
- STAS 9085-71
- Capacitance (Cn)
- 0.01…0.33 µF
- Capacitance, min
- 0.01 µF
- Capacitance, max
- 0.33 µF
- Tolerance
- ±10 % (E12), ±20 % (E6)
- Rated voltage (Un)
- 100–500 V (see Variants)
- Dissipation factor (tan δ)
- ≤ 0.01 (1 kHz)
- Dielectric strength
- 2 Un (between terminals)
- Climatic category
- 40/085/21
- Package
- rectangular, radial leads
- Max. length (Lmax)
- 13–18.5 mm (see Variants)
- Max. width (Bmax)
- 5.5–7 mm (see Variants)
- Max. height (Hmax)
- 9.5–12.5 mm (see Variants)
- Lead spacing
- 10–15 mm (see Variants)
- Lead diameter (d)
- 0.8 mm
- Application
- general use
Variants (9)
| Note | Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PMP 02.01 (100 V) | 0.068…0.15 µF | 0.068 | 0.15 | 100 | 13 | 5.5 | 9.5 | 10 | ||
| PMP 02.01 (250 V) | 0.01…0.047 µF | 0.01 | 0.047 | 250 | 13 | 5.5 | 9.5 | 10 | ||
| PMP 02.01 (400 V) | 0.01…0.022 µF | 0.01 | 0.022 | 400 | 13 | 6.5 | 9.5 | 10 | Bmax 6.5 in the 2nd edition, 5.5 in the 1st | |
| PMP 02.01 (500 V) | 0.01…0.018 µF | 0.01 | 0.018 | 500 | 13 | 5.5 | 9.5 | 10 | ||
| PMP 02.02 (100 V) | 0.18…0.22 µF | 0.18 | 0.22 | 100 | 13 | 7 | 11.5 | 10 | ||
| PMP 02.02 (250 V) | 0.056…0.1 µF | 0.056 | 0.1 | 250 | 13 | 7 | 11.5 | 10 | ||
| PMP 02.02 (400 V) | 0.027…0.047 µF | 0.027 | 0.047 | 400 | 13 | 7 | 11.5 | 10 | ||
| PMP 02.02 (500 V) | 0.022…0.033 µF | 0.022 | 0.033 | 500 | 15 | 7 | 11.5 | 10 | Lmax 15 in the 2nd edition, 13 in the 1st | |
| PMP 02.03 | 0.27…0.33 µF | 0.27 | 0.33 | 100 | 18.5 | 7 | 12.5 | 15 | printed „POMP 02.03” in both editions |
Click a column heading to sort. „+” adds a variant to the comparison (PMP 02.00).
Description
The PMP 02.00 is a series of metallised polyester capacitors in a rectangular case with two radial leads, made to STAS 9085-71 for general use [1]. The Agenda radioelectronistului (2nd edition, 1989) lists three package codes, PMP 02.01 to PMP 02.03, with 0.01–0.33 µF at 100–500 V [1].
The Agenda does not say which works made the series: for the whole section on capacitors made in Romania it lists IPEE Electroargeș of Curtea de Argeș, Tehnoton of Iași, IIS Electronica of Bucharest and IPRS Băneasa as producers, and the 1st edition (1983) names only the first three [3][4]. It is listed here as made by IPRS Băneasa; Un secol de electronică în România says that the metallised polyester capacitor line of IPRS passed to IPEE Curtea de Argeș in 1982 [5].
Coded as [3]:
| Part | Meaning |
|---|---|
| PMP | construction type (structure, dielectric, terminals): metallised polyester capacitor |
| 02 | technological family („familia tehnologică”) |
| 01…03 | package code („codul capsulei”) |
The capacitors are marked in clear; the book’s example „PMP 09.02 — 0,047/400” gives the code, the nominal capacitance in µF and the rated voltage in V [3].
Both editions print the third code as „POMP 02.03” [1][2]. The 2nd edition gives a maximum width of 6.5 mm for PMP 02.01 at 400 V (5.5 mm in the other rows of the package and in the 1st edition) and a maximum length of 15 mm for PMP 02.02 at 500 V (13 mm in the 1st edition); the values are kept as printed [1][2]. Its heading spells the dielectric „poliestier” [1].

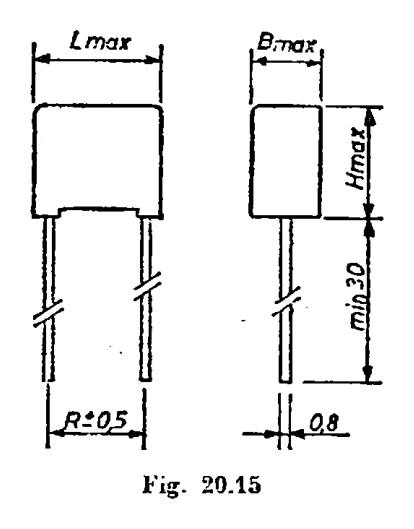

Rated voltages are DC („Vcc”). Dimensions in mm: the table gives Bmax, Hmax, Lmax and the lead spacing „Rmax”, which fig. 20.15 marks as R ± 0.5; leads Ø 0.8, at least 30 mm long [1].
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 20.4.2.2 „Condensatoare cu poliestier metalizat, seria PMP 02.00”, pp. 259–260
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.5.4.2.2 „Condensatoare cu poliester metalizat, seria PMP 02.00”, pp. 229–230
- [3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, sections 20.4 „Condensatoare produse în R.S.R.” (p. 248) and 20.4.2.1 „Codificare – marcare (în clar)” (p. 259)
- [4]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, sections 3.5.4 „Condensatoare produse în R.S.R.” (p. 218) and 3.5.4.2.1 „Codificare – marcare (în clar)” (p. 229)
- [5]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, section VIII.1.2.6, pp. 408–411
