IPRS Băneasa PMP 06.00

___ __ ______ _ __ / | _____________ / |/ / | | |/ / / /| | / ___/ ___/ _ \/ /|_/ / /| | | / / ___ |/ / / /__/ __/ / / / ___ |/ | /_/ |_/_/ \___/\___/_/ /_/_/ |_/_/|_|

Specifications

Type

metallised polyester

Standard

STAS 9085-71

Capacitance (Cn)

0.0027…6.8 µF

Capacitance, min

0.0027 µF

Capacitance, max

6.8 µF

Tolerance

±5 % (E24), ±10 % (E12), ±20 % (E6)

Rated voltage (Un)

100–630 V (see Variants)

Max. peak AC voltage

63–220 V (see Variants)

Category voltage (Uc)

Un (up to +85 °C)

Dissipation factor (tan δ)

≤ 8·10⁻³ (Cn < 3.9 µF), ≤ 10·10⁻³ (Cn ≥ 3.9 µF), at 1 kHz

Temperature coefficient (αC)

(400 ± 200)·10⁻⁶/°C

Climatic category

40/100/21

Package

rectangular, radial leads

Max. length (Lmax)

13–31.5 mm (see Variants)

Max. width (Bmax)

5.5–17 mm (see Variants)

Max. height (Hmax)

10.5–24.5 mm (see Variants)

Lead spacing

10–27.5 mm (see Variants)

Lead diameter (d)

0.8 mm

Application

general use; professional circuits

Variants (23)

										Note
PMP 06.01 (100 V)	0.0027…0.12 µF	0.0027	0.12	100	63	13	5.5	10.5	10	1st edition: 0.027…0.12 µF; Bmax 4.5
PMP 06.01 (250 V)	0.0027…0.068 µF	0.0027	0.068	250	160	13	5.5	10.5	10	1st edition: Bmax 4.5
PMP 06.01 (400 V)	0.0027…0.022 µF	0.0027	0.022	400	200	13	5.5	10.5	10	1st edition: Bmax 4.5, Lmax 14
PMP 06.01 (630 V)	0.0027…0.012 µF	0.0027	0.012	630	220	13	5.5	10.5	10	1st edition: Bmax 4.5
PMP 06.02 (100 V)	0.15…0.22 µF	0.15	0.22	100	63	13	7	11.5	10	1st edition: Bmax 5.5
PMP 06.02 (250 V)	0.075…0.1 µF	0.075	0.1	250	160	13	7	11.5	10	1st edition: 0.082…0.21 µF; Bmax 5.5, Lmax 14
PMP 06.02 (400 V)	0.022…0.039 µF	0.022	0.039	400	200	13	7	11.5	10	1st edition: 0.027…0.039 µF; Bmax 5.5
PMP 06.02 (630 V)	0.015…0.022 µF	0.015	0.022	630	220	13	7	11.5	10	1st edition: Bmax 5.5, Lmax 14
PMP 06.03 (100 V)	0.27…1.2 µF	0.27	1.2	100	63	18	10	15.5	15	1st edition: 0.27…1 µF; Bmax 8.5
PMP 06.03 (250 V)	0.12…0.47 µF	0.12	0.47	250	160	18	10	15.5	15	1st edition: 0.1…0.47 µF; Bmax 8.5
PMP 06.03 (400 V)	0.047…0.22 µF	0.047	0.22	400	200	18	10	15.5	15	1st edition: 0.047…0.18 µF; Bmax 8.5
PMP 06.03 (630 V)	0.027…0.068 µF	0.027	0.068	630	220	18	10	15.5	15	1st edition: Bmax 8.5
PMP 06.04 (100 V)	1.2…3.3 µF	1.2	3.3	100	63	25	12.5	20.5	22.5	1st edition: Bmax 10.5
PMP 06.04 (250 V)	0.47…1.2 µF	0.47	1.2	250	160	25	12.5	20.5	22.5	1st edition: Bmax 10.5
PMP 06.04 (400 V)	0.22…0.56 µF	0.22	0.56	400	200	25	12.5	20.5	22.5	1st edition: Bmax 10.5
PMP 06.04 (630 V)	0.075…0.27 µF	0.075	0.27	630	220	25	12.5	20.5	22.5	1st edition: 0.082…0.27 µF; Bmax 10.5
PMP 06.05 (100 V)	3.9…5.6 µF	3.9	5.6	100	63	31.5	14	21	27.5	1st edition: 3.9…4.7 µF; Hmax 24.5
PMP 06.05 (250 V)	1.5…2.2 µF	1.5	2.2	250	160	31.5	14	21	27.5	1st edition: Hmax 24.5
PMP 06.05 (400 V)	0.68…0.82 µF	0.68	0.82	400	200	31.5	14	21	27.5	1st edition: Hmax 24.5
PMP 06.05 (630 V)	0.33…0.47 µF	0.33	0.47	630	220	31.5	14	21	27.5	1st edition: Hmax 24.5
PMP 06.06 (100 V)	5.6…6.8 µF	5.6	6.8	100	63	31.5	17	24.5	27.5	1st edition: Bmax 16, Hmax 28.5, Lmax 35, R 32
PMP 06.06 (250 V)	2.7…3.3 µF	2.7	3.3	250	160	31.5	17	24.5	27.5	2nd edition only
PMP 06.06 (400 V)	0.1…1.5 µF	0.1	1.5	400	200	31.5	17	24.5	27.5	1st edition: 0.1…1.0 µF; Bmax 16, Hmax 28.5, Lmax 35, R 32

Click a column heading to sort. „+” adds a variant to the comparison (PMP 06.00).

Description

The PMP 06.00 is a series of metallised polyester capacitors in a rectangular case with two radial leads, made to STAS 9085-71 for general use and professional circuits [1]. The Agenda radioelectronistului (2nd edition, 1989) lists six package codes, PMP 06.01 to PMP 06.06, with 0.0027–6.8 µF at 100–630 V; for each rated voltage it also gives the maximum peak AC voltage, and it gives no dielectric strength [1].

The Agenda does not say which works made the series: for the whole section on capacitors made in Romania it lists IPEE Electroargeș of Curtea de Argeș, Tehnoton of Iași, IIS Electronica of Bucharest and IPRS Băneasa as producers, and the 1st edition (1983) names only the first three [3][4]. It is listed here as made by IPRS Băneasa; Un secol de electronică în România says that the metallised polyester capacitor line of IPRS passed to IPEE Curtea de Argeș in 1982 [5].

Coded as [3]:

Part	Meaning
PMP	construction type (structure, dielectric, terminals): metallised polyester capacitor
06	technological family („familia tehnologică”)
01…06	package code („codul capsulei”)

The capacitors are marked in clear; the book’s example „PMP 09.02 — 0,047/400” gives the code, the nominal capacitance in µF and the rated voltage in V [3].

The 1st edition (1983) differs in many cells: other capacitance ranges in several rows, smaller maximum widths for PMP 06.01–06.04, a greater height for PMP 06.05, larger dimensions for PMP 06.06 and no 250 V row for PMP 06.06; the notes in the table give its values [2]. For PMP 06.02 at 250 V it prints 0.082…0.21 µF, where the 2nd edition has 0.075…0.1 µF [1][2].

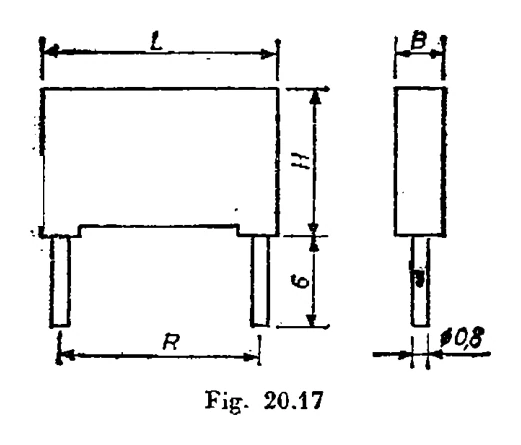

Rated voltages are DC („Vcc”). Dimensions in mm (fig. 20.17): Bmax, Hmax, Lmax and the lead spacing R from the table; leads Ø 0.8, 6 mm long [1].

References

[1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 20.4.2.4 „Condensatoare cu poliester metalizat, seria PMP 06.00”, pp. 261–262

[2]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.5.4.2.4 „Condensatoare cu poliester metalizat, seria PMP 06.00”, pp. 231–232

[3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, sections 20.4 „Condensatoare produse în R.S.R.” (p. 248) and 20.4.2.1 „Codificare – marcare (în clar)” (p. 259)

[4]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, sections 3.5.4 „Condensatoare produse în R.S.R.” (p. 218) and 3.5.4.2.1 „Codificare – marcare (în clar)” (p. 229)

[5]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, section VIII.1.2.6, pp. 408–411
