General view

PMP 07.00

IPRS Băneasa

Year
Unknown
Category
Components
Type
Capacitors
Documentation score
1/5
Last edited
16 OCT 2026

Specifications

Type
metallised polyester
Standard
STAS 9085-71
Capacitance (Cn)
0.022…2.2 µF
Capacitance, min
0.022 µF
Capacitance, max
2.2 µF
Tolerance
±20 % (E6)
Rated voltage (Un)
250–400 V (see Variants)
Category voltage (Uc)
Un
Dissipation factor (tan δ)
≤ 0.01 (50 Hz for Cn ≥ 1 µF, 1 kHz for Cn < 1 µF)
Dielectric strength
2 Un (between terminals, +20 °C)
Climatic category
10/085/04
Package
cylindrical, rounded ends, axial leads
Diameter (D)
9–17 mm (see Variants)
Length (L)
17–40 mm (see Variants)
Lead diameter (d)
0.8 mm
Application
general use

Sources: [1][2]

Variants (10)

Note
PMP 07.01 (250 V)0.047 µF0.0470.047250917
PMP 07.01 (400 V)0.1…0.022 µF0.0220.1400917range printed „0,1…0,022” in both editions
PMP 07.02 (250 V)0.068…0.15 µF0.0680.15250920
PMP 07.02 (400 V)0.033…0.047 µF0.0330.047400920
PMP 07.03 (250 V)0.22…0.047 µF0.0470.222501226range printed „0,22…0,047” (1st edition: 0.22…0.47)
PMP 07.03 (400 V)0.068…0.22 µF0.0680.224001226
PMP 07.04 (250 V)0.68…1.5 µF0.681.52501626
PMP 07.04 (400 V)0.33…0.68 µF0.330.684001626
PMP 07.05 (250 V)2.2 µF2.22.22501740
PMP 07.05 (400 V)1.0 µF114001740

Click a column heading to sort. „+” adds a variant to the comparison (PMP 07.00).

Description

The PMP 07.00 is a series of metallised polyester capacitors in a cylindrical case with rounded ends and axial leads, made to STAS 9085-71 for general use [1]. The Agenda radioelectronistului (2nd edition, 1989) lists five package codes, PMP 07.01 to PMP 07.05, with 0.022–2.2 µF at 250 V and 400 V [1].

The Agenda does not say which works made the series: for the whole section on capacitors made in Romania it lists IPEE Electroargeș of Curtea de Argeș, Tehnoton of Iași, IIS Electronica of Bucharest and IPRS Băneasa as producers, and the 1st edition (1983) names only the first three [3][4]. It is listed here as made by IPRS Băneasa; Un secol de electronică în România says that the metallised polyester capacitor line of IPRS passed to IPEE Curtea de Argeș in 1982 [5].

Coded as [3]:

Part Meaning
PMP construction type (structure, dielectric, terminals): metallised polyester capacitor
07 technological family („familia tehnologică”)
01…05 package code („codul capsulei”)

The capacitors are marked in clear; the book’s example „PMP 09.02 — 0,047/400” gives the code, the nominal capacitance in µF and the rated voltage in V [3].

Two ranges are printed with the larger value first: „0,1…0,022” µF for PMP 07.01 at 400 V (in both editions) and „0,22…0,047” µF for PMP 07.03 at 250 V, where the 1st edition has 0.22…0.47 µF; they are kept as printed, and the minimum and maximum columns of the table simply sort the two printed numbers [1][2].

Rated voltages are DC („Vcc”). Dimensions in mm (fig. 20.18): D ± 0.5, L ± 1; leads Ø 0.8, at least 45 mm long on each side [1].

Gallery

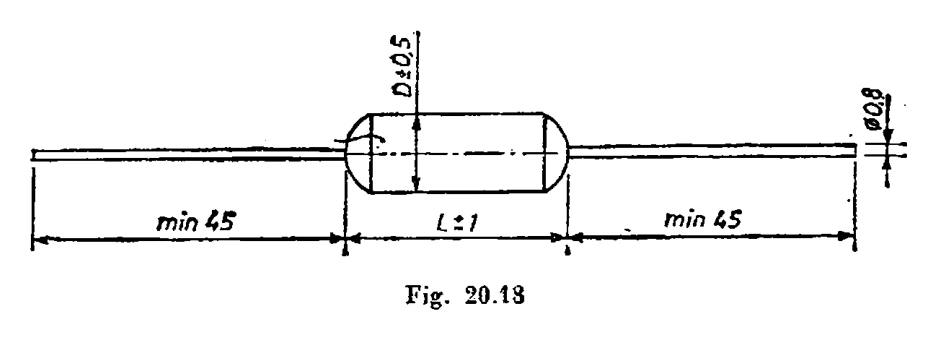

IPRS Băneasa PMP 07.00: Drawing (fig. 20.18)No image available
Drawing (fig. 20.18)

Documents

No documents available yet.

References

  1. [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 20.4.2.5 „Condensatoare cu poliester metalizat, seria PMP 07.00”, pp. 262–263
  2. [2]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.5.4.2.5 „Condensatoare cu poliester metalizat, seria PMP 07.00”, pp. 232–233
  3. [3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, sections 20.4 „Condensatoare produse în R.S.R.” (p. 248) and 20.4.2.1 „Codificare – marcare (în clar)” (p. 259)
  4. [4]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, sections 3.5.4 „Condensatoare produse în R.S.R.” (p. 218) and 3.5.4.2.1 „Codificare – marcare (în clar)” (p. 229)
  5. [5]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, section VIII.1.2.6, pp. 408–411
