PMP 11.00
IPRS Băneasa
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Capacitors
- Documentation score
- 1/5
- Last edited
- 16 OCT 2026
Specifications
- Type
- metallised polyester
- Standard
- STAS 9085-71
- Capacitance (Cn)
- 0.1…2.2 µF
- Capacitance, min
- 0.1 µF
- Capacitance, max
- 2.2 µF
- Tolerance
- ±10 % (E12), ±20 % (E6)
- Rated voltage (Un)
- 100–250 V (see Variants)
- Dissipation factor (tan δ)
- ≤ 0.01 (1 kHz)
- Dielectric strength
- 2 Un (between terminals)
- Climatic category
- 40/085/21
- Package
- reduced size, oval section, axial leads
- Length (L)
- 20–30 mm (see Variants)
- Height (H)
- 6 mm (see Variants)
- Max. height (Hmax)
- 7.5–12 mm (see Variants)
- Thickness
- 4 mm (see Variants)
- Max. thickness
- 5.5–9.5 mm (see Variants)
- Lead diameter (d)
- 0.8 mm
- Application
- general use
Variants (4)
| Note | Compare | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PMP 11.00 | 0.22 µF | 0.22 | 0.22 | 100 | 20 | 6 | — | 4 | — | ||
| PMP 11.20 (100 V) | 0.27…0.82 µF | 0.27 | 0.82 | 100 | 20 | — | 7.5 | — | 5.5 | H 6.5…7.5, P 4.5…5.5 mm | |
| PMP 11.20 (250 V) | 0.1…2.2 µF | 0.1 | 2.2 | 250 | 20 | — | 12 | — | 9.5 | H 7.5…12, P 4.5…9.5 mm | |
| PMP 11.30 | 1…2.2 µF | 1 | 2.2 | 100 | 30 | — | 9.5 | — | 7.5 | H 7.5…9.5, P 5.5…7.5 mm |
Click a column heading to sort. „+” adds a variant to the comparison (PMP 11.00).
Description
The PMP 11.00 is a series of reduced-size („cu gabarit redus”) metallised polyester capacitors with a body of oval section and axial leads, made to STAS 9085-71 for general use [1]. The Agenda radioelectronistului (2nd edition, 1989) lists three package codes, PMP 11.00, PMP 11.20 and PMP 11.30, with 0.1–2.2 µF at 100 V and 250 V; the 1st edition (1983) has the same table [1][2].
The Agenda does not say which works made the series: for the whole section on capacitors made in Romania it lists IPEE Electroargeș of Curtea de Argeș, Tehnoton of Iași, IIS Electronica of Bucharest and IPRS Băneasa as producers, and the 1st edition (1983) names only the first three [3][4]. It is listed here as made by IPRS Băneasa; Un secol de electronică în România says that the metallised polyester capacitor line of IPRS passed to IPEE Curtea de Argeș in 1982 [5].
Coded as [3]:
| Part | Meaning |
|---|---|
| PMP | construction type (structure, dielectric, terminals): metallised polyester capacitor |
| 11 | technological family („familia tehnologică”) |
| 00, 20, 30 | package code („codul capsulei”) |
The capacitors are marked in clear; the book’s example „PMP 09.02 — 0,047/400” gives the code, the nominal capacitance in µF and the rated voltage in V [3].
For PMP 11.20 and PMP 11.30 the table gives the height H and the thickness P as ranges; the page lists their maximum values, with the printed ranges in the notes [1].

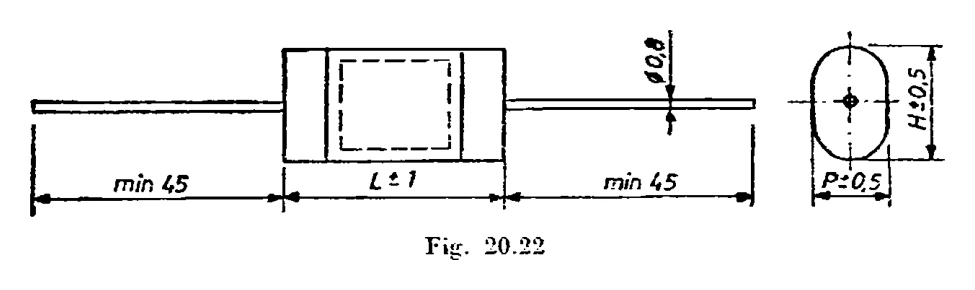

The voltage column is headed „Un [V]”, without saying DC or AC. Dimensions in mm (fig. 20.22): length L ± 1, height H ± 0.5, thickness P ± 0.5; leads Ø 0.8, at least 45 mm long on each side [1].
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 20.4.2.9 „Condensatoare poliester metalizat cu gabarit redus, seria PMP 11.00”, p. 265
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.5.4.2.9 „Condensatoare poliester metalizat cu gabarit redus, seria PMP 11.00”, p. 235
- [3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, sections 20.4 „Condensatoare produse în R.S.R.” (p. 248) and 20.4.2.1 „Codificare – marcare (în clar)” (p. 259)
- [4]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, sections 3.5.4 „Condensatoare produse în R.S.R.” (p. 218) and 3.5.4.2.1 „Codificare – marcare (în clar)” (p. 229)
- [5]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, section VIII.1.2.6, pp. 408–411
