General view

PS 00.10

IPRS Băneasa

Year
Unknown
Category
Components
Type
Capacitors
Documentation score
1/5
Last edited
16 OCT 2026

Specifications

Type
polystyrene
Standard
STAS 9067-71
Capacitance (Cn)
47…100000 pF
Capacitance, min
47 pF
Capacitance, max
100000 pF
Tolerance
±2.5 % (E48), ±5 % (E24), ±10 % (E12), ±20 % (E6)
Rated voltage (Un)
25–1000 V (see Variants)
Category voltage
22–870 V (see Variants)
Dissipation factor (tan δ)
≤ 10·10⁻⁴ (1 MHz, Cn ≤ 1000 pF), ≤ 5·10⁻⁴ (1 kHz, Cn > 1000 pF)
Dielectric strength
2 Un (between terminals)
Temperature coefficient (αC)
(−60…−220)·10⁻⁶/°C
Climatic category
10/070/04
Marking
6 different values (see Variants)
Package
cylindrical, axial leads
Max. diameter (Dmax)
5.1–32 mm (see Variants)
Length (L)
8–32 mm (see Variants)
Lead diameter (d)
0.4–0.6 mm (see Variants)
Lead length (l)
35–42 mm (see Variants)
Application
general use and professional circuits

Sources: [1][2]

Variants (25)

Note
PS 00.11 (25 V)100…1000 pF10010002522blue5.180.435
PS 00.11 (63 V)150…820 pF1508206355yellow5.580.435
PS 00.11 (160 V)47…560 pF47560160140red5.980.435
PS 00.12 (25 V)1001…2000 pF100120002522blue6110.435
PS 00.12 (63 V)821…2000 pF82120006355yellow8.7110.435
PS 00.12 (160 V)561…2000 pF5612000160140red8.8110.435
PS 00.12 (250 V)68…400 pF68400250220green5.9110.435
PS 00.12 (630 V)47…510 pF47510630550black8.3110.435
PS 00.13 (25 V)2001…30000 pF2001300002522blue12.5160.540
PS 00.13 (63 V)2001…1000 pF100020016355yellow10160.540upper limit printed „1.000” (1st edition: 10.000)
PS 00.13 (160 V)2001…4700 pF20014700160140red8.9160.540
PS 00.13 (250 V, 401…1500 pF)401…1500 pF4011500250220green7.1160.540
PS 00.13 (250 V, 1501…5000 pF)1501…5000 pF15015000250220green10.3160.540
PS 00.13 (630 V, 511…1200 pF)511…1200 pF5111200630500black9.4160.540Uc printed 500 (1st edition: 550)
PS 00.13 (630 V, 1201…2700 pF)1201…2700 pF12012700630550black10160.540
PS 00.14 (25 V)30001…100000 pF300011000002522blue18220.540
PS 00.14 (63 V)10001…25000 pF10001250006355yellow11.2220.540
PS 00.14 (160 V)4701…15000 pF470115000160140red11.5220.540
PS 00.14 (250 V)5001…12000 pF500112000250220green13.5220.540
PS 00.14 (630 V)2701…10000 pF270110000630550black14.7220.540
PS 00.14 (1000 V)1500…3900 pF150039001000870black + in clear13.1220.540
PS 00.15 (160 V)15000…25000 pF1500025000160140red15320.642lower limit 15.000 (1st edition: 15.001)
PS 00.15 (250 V)12001…25000 pF1200125000250220green16320.642
PS 00.15 (630 V)10001…25000 pF1000125000630550black16.5320.642
PS 00.15 (1000 V)3901…25000 pF3901250001000870black + in clear32320.642Dmax printed 32 in both editions

Click a column heading to sort. „+” adds a variant to the comparison (PS 00.10).

Description

The PS 00.10 is a series of polystyrene capacitors in a cylindrical case with axial leads, made to STAS 9067-71 for general use and professional circuits [1]. The Agenda radioelectronistului (2nd edition, 1989) lists five package codes, PS 00.11 to PS 00.15, with 47–100000 pF at 25–1000 V, and the category voltage Uc of each row [1].

The Agenda does not say which works made the series: for the whole section on capacitors made in Romania it lists IPEE Electroargeș of Curtea de Argeș, Tehnoton of Iași, IIS Electronica of Bucharest and IPRS Băneasa as producers, and the 1st edition (1983) names only the first three [3][4]. It is listed here as made by IPRS Băneasa; Un secol de electronică în România says that the polystyrene capacitor line of IPRS passed to IPEE Curtea de Argeș in 1980 [5].

Coded as [3]:

Part Meaning
PS construction type (structure, dielectric, terminals): PS (PSC) – polystyrene capacitor with axial leads (or leads for printed-circuit mounting)
00 technological family („familia tehnologică”)
11…15 package code („codul capsulei”)

The nominal capacitance and the tolerance are marked in clear, the rated voltage by a colour on the end next to the lead connected to the outer electrode: 25 V blue, 63 V yellow, 160 V red, 250 V green, 630 V black, 1000 V black and in clear [3]. The 2nd edition repeats the colour list in the section of the series; the 1st edition gives it only in the codification subsection [1][2].

Some cells are printed oddly and kept as printed: for PS 00.13 at 63 V the range reads „2.001 … 1.000” pF (1st edition: 2.001…10.000), the first PS 00.13 row at 630 V has Uc = 500 V (550 V in the 1st edition and in the other 630 V rows), PS 00.15 at 160 V starts at 15.000 pF (1st edition: 15.001), and PS 00.15 at 1000 V has a maximum diameter of 32 mm, as long as the body, in both editions [1][2]. The 2nd edition heads the rated-voltage column „Uc [Vcc]” (1st edition: Un) and spells the heading „terminare axiale” [1][2].

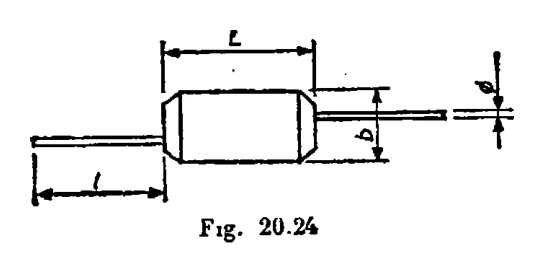

Rated voltages are DC („Vcc”). Dimensions in mm (fig. 20.24): length L ± 2, maximum diameter Dmax, minimum lead length lmin and lead diameter ø from the table [1].
