PS 06.20
IPRS Băneasa
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Capacitors
- Documentation score
- 1/5
- Last edited
- 16 OCT 2026
Specifications
- Type
- polystyrene
- Standard
- STAS 9067-71
- Capacitance (Cn)
- 1201…25000 pF
- Capacitance, min
- 1201 pF
- Capacitance, max
- 25000 pF
- Tolerance
- ±2.5 % (E48), ±5 % (E24), ±10 % (E12), ±20 % (E6)
- Rated voltage (Un)
- 160–630 V (see Variants)
- Category voltage
- 140–550 V (see Variants)
- Dissipation factor (tan δ)
- ≤ 10·10⁻⁴ (1 MHz, Cn ≤ 1000 pF), ≤ 5·10⁻⁴ (1 kHz, Cn > 1000 pF)
- Dielectric strength
- 2 Un (between terminals)
- Temperature coefficient (αC)
- (−60…−220)·10⁻⁶/°C
- Climatic category
- 10/070/21
- Marking
- red, black (see Variants)
- Package
- cylindrical, both leads on one end (printed-circuit mounting)
- Max. diameter (Dmax)
- 8.9–16.5 mm (see Variants)
- Length (L)
- 16–32 mm (see Variants)
- Lead diameter (d)
- 0.5–0.6 mm (see Variants)
- Lead length (l)
- 40–42 mm (see Variants)
- Application
- general use and professional circuits
Variants (6)
| Compare | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PS 06.23 (160 V) | 2001…4700 pF | 2001 | 4700 | 160 | 140 | red | 8.9 | 16 | 0.5 | 40 | |
| PS 06.23 (630 V) | 1201…2700 pF | 1201 | 2700 | 630 | 550 | black | 10 | 16 | 0.5 | 40 | |
| PS 06.24 (160 V) | 4701…15000 pF | 4701 | 15000 | 160 | 140 | red | 11.5 | 22 | 0.5 | 40 | |
| PS 06.24 (630 V) | 2701…10000 pF | 2701 | 10000 | 630 | 550 | black | 14.7 | 22 | 0.5 | 40 | |
| PS 06.25 (160 V) | 15001…25000 pF | 15001 | 25000 | 160 | 140 | red | 15 | 32 | 0.6 | 42 | |
| PS 06.25 (630 V) | 10001…25000 pF | 10001 | 25000 | 630 | 550 | black | 16.5 | 32 | 0.6 | 42 |
Click a column heading to sort. „+” adds a variant to the comparison (PS 06.20).
Description
The PS 06.20 is a series of polystyrene capacitors with both leads on one end, for printed-circuit mounting („terminale de implantare”), made to STAS 9067-71 for general use and professional circuits [1]. The Agenda radioelectronistului (2nd edition, 1989) lists three package codes, PS 06.23 to PS 06.25, with 1201–25000 pF at 160 V and 630 V, and the category voltage Uc of each row [1].
The Agenda does not say which works made the series: for the whole section on capacitors made in Romania it lists IPEE Electroargeș of Curtea de Argeș, Tehnoton of Iași, IIS Electronica of Bucharest and IPRS Băneasa as producers, and the 1st edition (1983) names only the first three [3][4]. It is listed here as made by IPRS Băneasa; Un secol de electronică în România says that the polystyrene capacitor line of IPRS passed to IPEE Curtea de Argeș in 1980 [5].
Coded as [3]:
| Part | Meaning |
|---|---|
| PS | construction type (structure, dielectric, terminals): PS (PSC) – polystyrene capacitor with axial leads (or leads for printed-circuit mounting) |
| 06 | technological family („familia tehnologică”) |
| 23…25 | package code („codul capsulei”) |
The nominal capacitance and the tolerance are marked in clear, the rated voltage by a colour on the end next to the lead connected to the outer electrode: 25 V blue, 63 V yellow, 160 V red, 250 V green, 630 V black, 1000 V black and in clear [3].
The 1st edition has the same table, but gives the length tolerance as ± 2 mm (2nd edition: ± 3) [1][2].

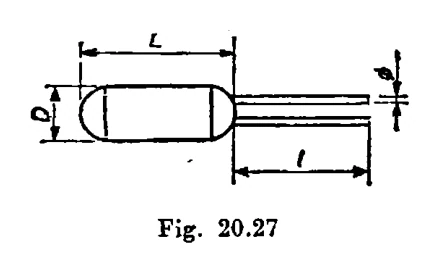

Rated voltages are DC („Vcc”). Dimensions in mm (fig. 20.27): length L ± 3, maximum diameter Dmax, minimum lead length lmin and lead diameter ø from the table [1].
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 20.4.2.14 „Condensatoare cu polistiren cu terminale de implantare, seria PS 06.20”, p. 269
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.5.4.2.14 „Condensatoare cu polistiren cu terminale de implantare, seria PS 06.20”, p. 239
- [3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, sections 20.4 „Condensatoare produse în R.S.R.” (p. 248) and 20.4.2.1 „Codificare – marcare (în clar)” (p. 259)
- [4]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, sections 3.5.4 „Condensatoare produse în R.S.R.” (p. 218) and 3.5.4.2.1 „Codificare – marcare (în clar)” (p. 229)
- [5]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, section VIII.1.2.6, pp. 408–411
