General view

TBA540

IPRS Băneasa

Year
Unknown
Category
Components
Type
Integrated circuits
Documentation score
1/5
Last edited
06 OCT 2026

Specifications

Function
PAL subcarrier regeneration circuit
Package
plastic 16

Sources: [1]

Description

The TBA540 is a PAL subcarrier regeneration circuit, an analog integrated circuit listed in the Agenda radioelectronistului (2nd edition, 1989) among the integrated circuits made in Romania by IPRS Băneasa, in a plastic 16 package [1]. Its pinout is in the Gallery.

Coded as (Pro Electron system) [2]:

Part Meaning
T analog circuit
B serial letter (no meaning, except H = hybrid circuit)
A temperature range not defined
540 serial number

Gallery

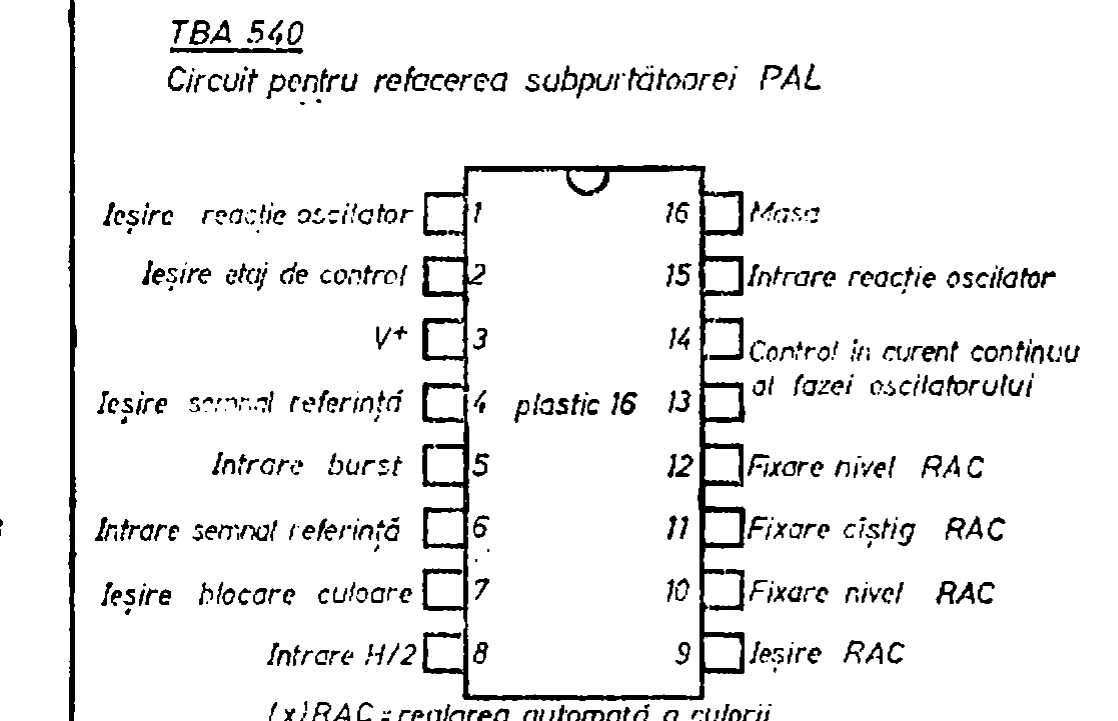

IPRS Băneasa TBA540: PinoutNo image available
Pinout

Documents

No documents available yet.

Used in (2)

Telecolor 5601ElectronicaTelevision sets · 1988 · Romania
Telecolor 5602ElectronicaTelevision sets · 1988 · Romania

Show them in the Archive →

References

  1. [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 35.1 „Circuite integrate analogice – producător: IPRS-Băneasa”, p. 592
  2. [2]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 34.1 „Codul european PRO-ELECTRON”, p. 573
