General view

P slide potentiometers

Electronica

Year
Unknown
Category
Components
Type
Potentiometers
Documentation score
1/5
Last edited
16 OCT 2026

Specifications

Type
slide
Standard
STAS 9614/2-74
Construction
single, tandem (see Variants)
Resistance (Rn)
100 Ω…5 MΩ
Resistance, min
100 Ω
Resistance, max
5000000 Ω
Law (taper)
lin, log
Tolerance
±20 % (Rn ≤ 250 kΩ), ±30 % (Rn > 250 kΩ)
Rated power (Pdn)
0.25 W
Rated power, log
0.125 W
Limit voltage (Unlim)
250 V
Limit voltage, log
200 V
Tandem tracking
≤ 4 dB (see Variants)
Useful travel
23–58 mm (see Variants)
Mechanical endurance
≥ 10 000 operations
Mechanical endurance, min
10000 operations
Climatic category
10/055/10
Marking
in clear
Application
radio and TV receivers

Sources: [1][2]

Variants (13)

Note
P-22254singlelin 100 Ω…5 MΩ5000000lin—40——fig. 17.5 a
P-22093singlelin 100 Ω…5 MΩ; log 1 kΩ…1 MΩ5000000——58——fig. 17.5 b
P-22321singlelin 100 Ω…5 MΩ; log 1 kΩ…1 MΩ5000000——58——fig. 17.5 c; versions —, A
P-45355singlelin 100 Ω…5 MΩ5000000lin—231000 operations1000fig. 17.5 d
P-35497singlelin 100 Ω…5 MΩ; log 1 kΩ…1 MΩ5000000——30——fig. 17.5 e
P-35027singlelin 100 Ω…2.5 MΩ; log 1 kΩ…1 MΩ2500000——40——fig. 17.5 f; versions —, A (A = classic wiring); printed in one row with P-35028: lin range on the line of P-35027, log range on the line of P-35028
P-35028singlelin 100 Ω…2.5 MΩ; log 1 kΩ…1 MΩ2500000——40——fig. 17.5 g; versions —, A, B, C (as printed for the row: A = classic wiring, B, C = printed wiring); printed in one row with P-35027: lin range on the line of P-35027, log range on the line of P-35028
P-35030singlelin 100 Ω…2.5 MΩ; log 1 kΩ…1 MΩ2500000——58——fig. 17.5 h; versions —, A (A = printed wiring); code read from the 1st edition (in the 2nd it looks like „P-35080”); printed in one row with P-34864: lin range on the line of P-35030, log range on the line of P-34864
P-34864singlelin 100 Ω…2.5 MΩ; log 1 kΩ…1 MΩ2500000——58——fig. 17.5 i; versions —, A (A = printed wiring); printed in one row with P-35030: lin range on the line of P-35030, log range on the line of P-34864
P-35032tandemlin 100 Ω…2.5 MΩ; log 1 kΩ…1 MΩ2500000—≤ 4 dB58——fig. 17.5 j; versions —, A (A = classic wiring); printed in one row with P-35031: lin range on the line of P-35032, log range on the line of P-35031
P-35031tandemlin 100 Ω…2.5 MΩ; log 1 kΩ…1 MΩ2500000—≤ 4 dB58——fig. 17.5 k; printed in one row with P-35032: lin range on the line of P-35032, log range on the line of P-35031
P-34865tandemlin 100 Ω…2.5 MΩ; log 1 kΩ…1 MΩ2500000—≤ 4 dB40——fig. 17.5 l; versions —, A (A = classic wiring); printed in one row with P-35029: lin range on the line of P-34865, log range on the line of P-35029
P-35029tandemlin 100 Ω…2.5 MΩ; log 1 kΩ…1 MΩ2500000—≤ 4 dB40——fig. 17.5 l; versions —, A (A = classic wiring); printed in one row with P-34865: lin range on the line of P-34865, log range on the line of P-35029

Click a column heading to sort. „+” adds a variant to the comparison (P slide potentiometers).

Description

The P slide potentiometers („potențiometre rectilinii”) are slide potentiometers made to STAS 9614/2-74 for radio and TV receivers, single and tandem, with useful travels of 23 to 58 mm, linear (100 Ω to 5 MΩ) and logarithmic (1 kΩ to 1 MΩ), rated 0.25 W linear and 0.125 W logarithmic [1]. The Agenda radioelectronistului (2nd edition, 1989) lists 13 codes, P-22254 to P-35029 [1].

The Agenda radioelectronistului names IPEE Electro-Argeș of Curtea de Argeș and IIS Electronica of Bucharest as the producers of the potentiometers in its section on potentiometers made in Romania, in both editions, without saying which works made which type; they are listed here under Electronica [3][4]. Electronica românească. O istorie trăită, vol. I, says that Electronica imported in 1969 a production line for film potentiometers from Siemens (West Germany), and that it made single potentiometers with or without a mains switch, tandem and push-button potentiometers, defined by its internal norm NID 2195-67 [5].

The book does not explain the codes [1]. In four rows of the table two codes are printed together, one on the line of the linear range and one on the line of the logarithmic range; the page gives both codes the values of the row [1].

The 1st edition (1983) has the same table; the code P-35030, which in the 2nd edition looks like „P-35080”, is read from it [2][1].

Resistance in the E6 series. Rated power and limit voltage: linear / logarithmic law. Dimensions in mm: see the drawings (fig. 17.5 a…l); on the last page of drawings only the letter l is printed, so the two drawings before it are j and k by their order, and the second of them (a tandem) has a 0…40 mm scale although the table gives fig. k a travel of 58 mm [1].

Gallery

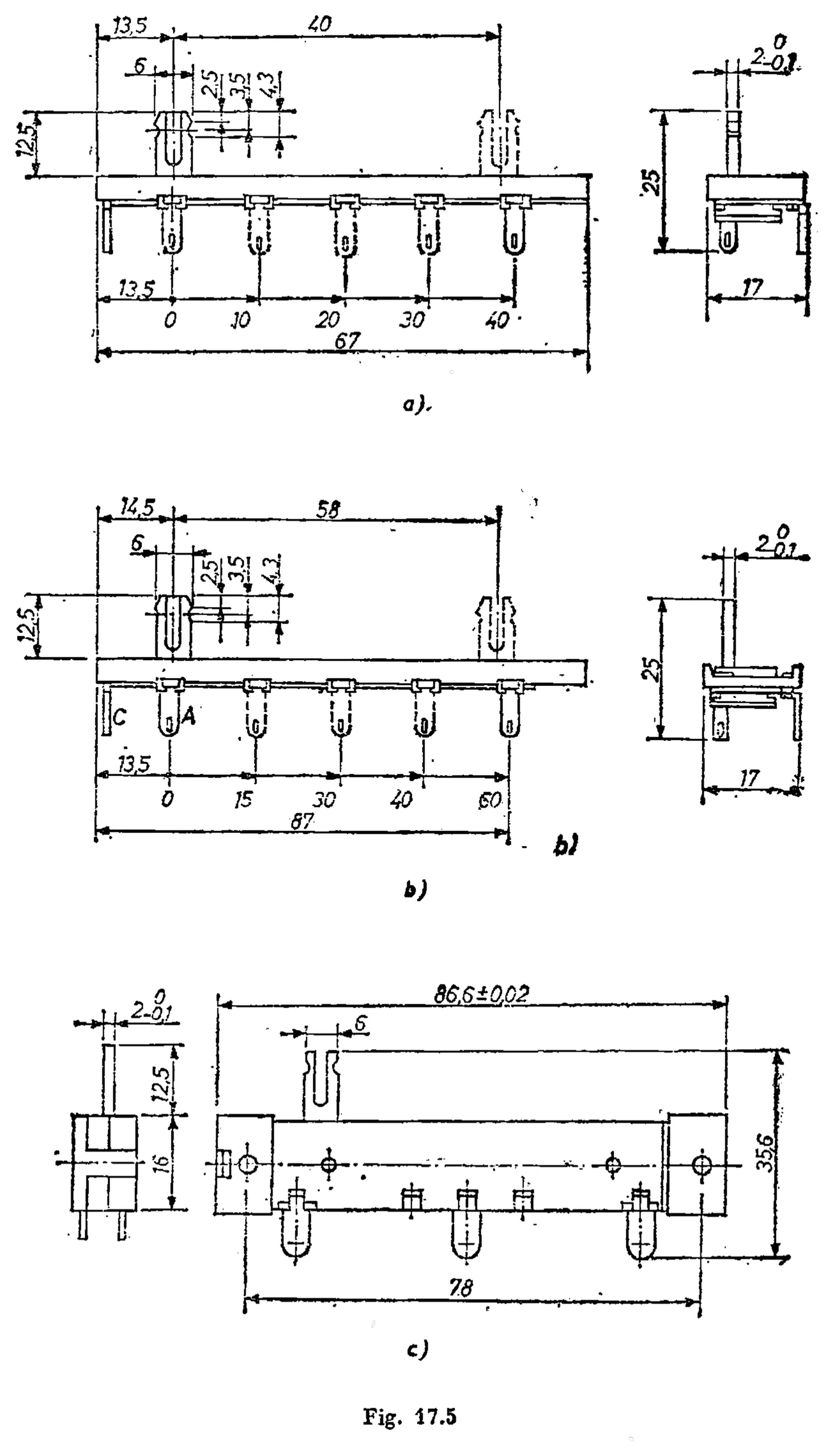

Electronica P slide potentiometers: Drawings (fig. 17.5 a…c)No image available
Drawings (fig. 17.5 a…c)

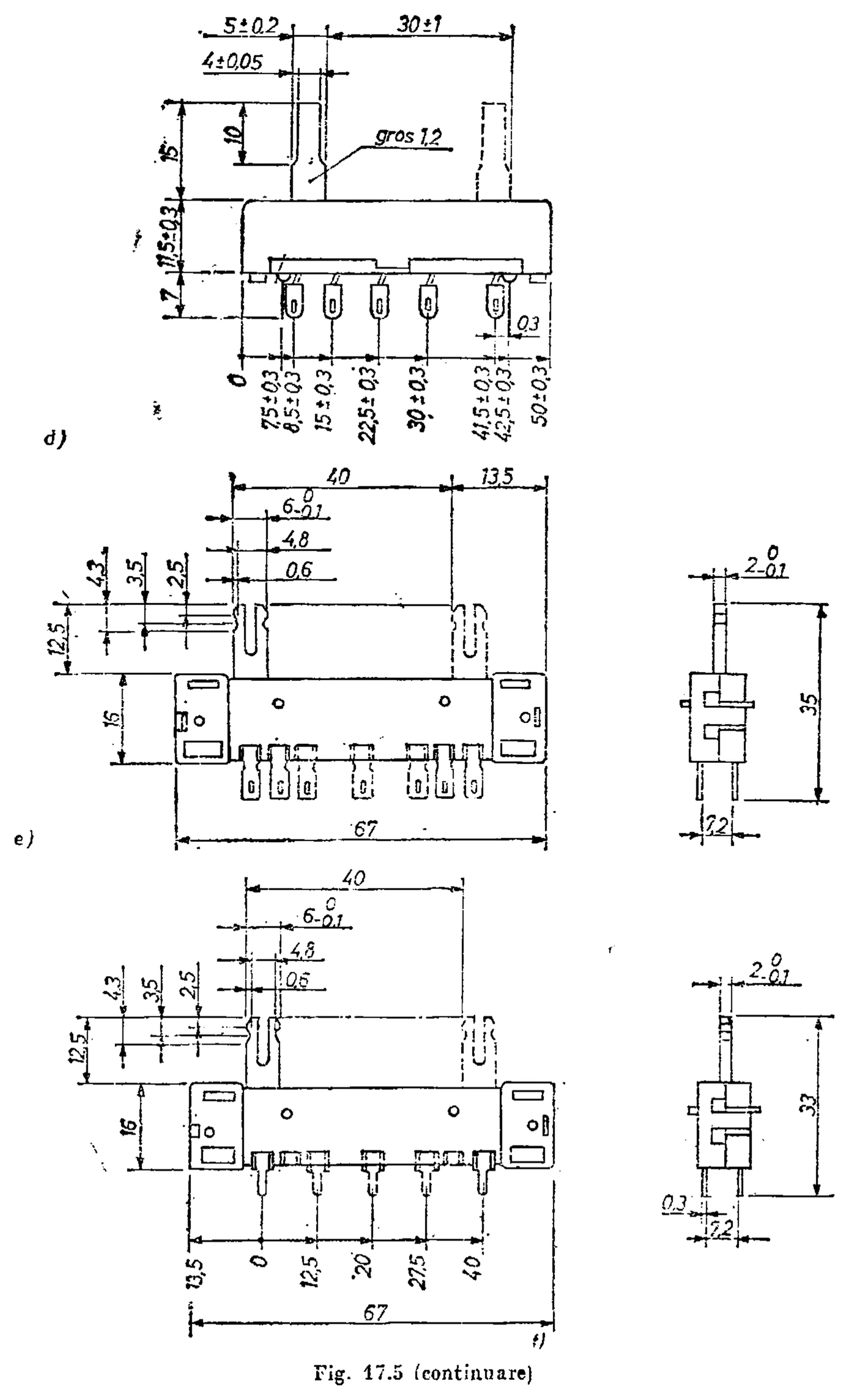

Electronica P slide potentiometers: Drawings (fig. 17.5 d…f)No image available
Drawings (fig. 17.5 d…f)

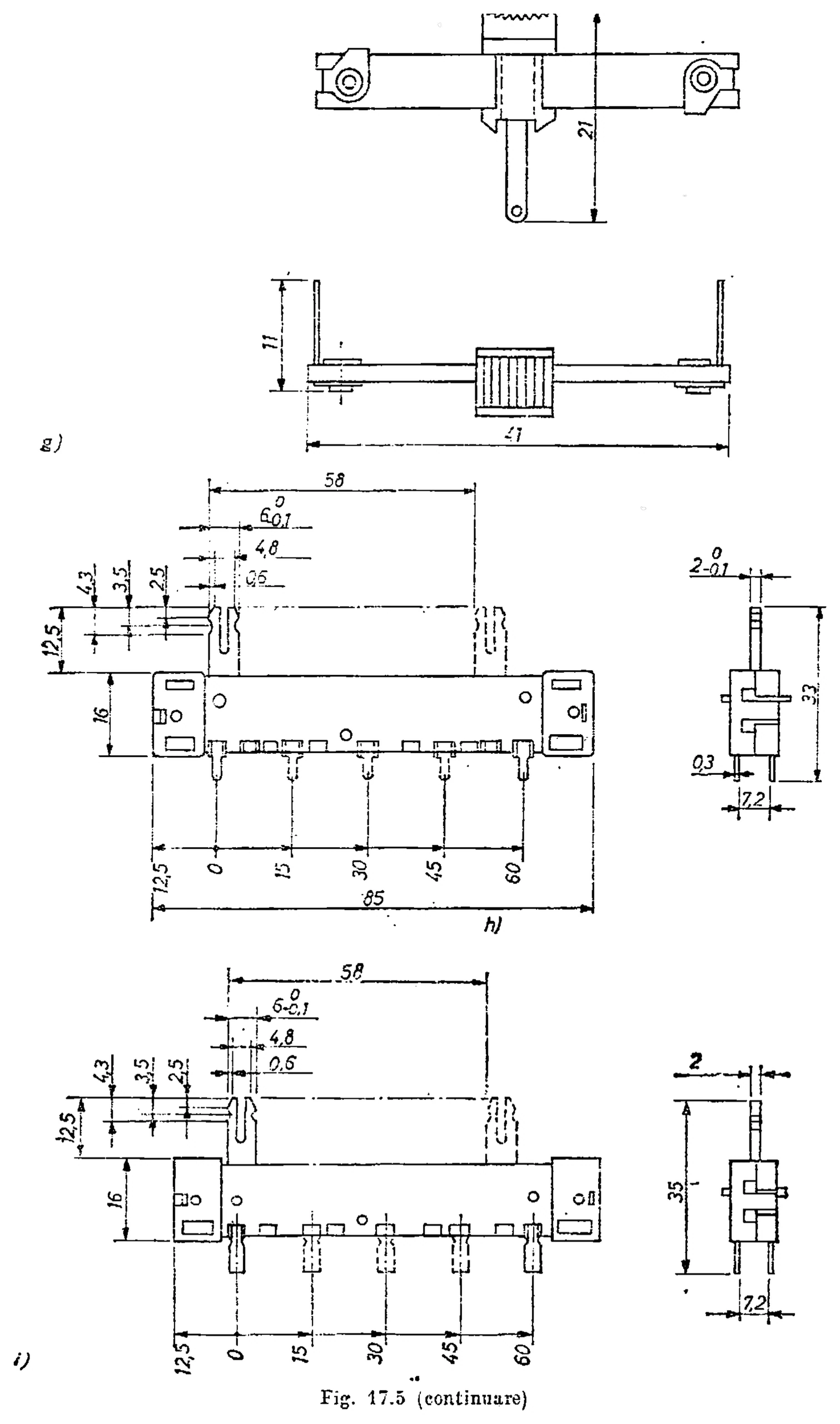

Electronica P slide potentiometers: Drawings (fig. 17.5 g…i)No image available
Drawings (fig. 17.5 g…i)

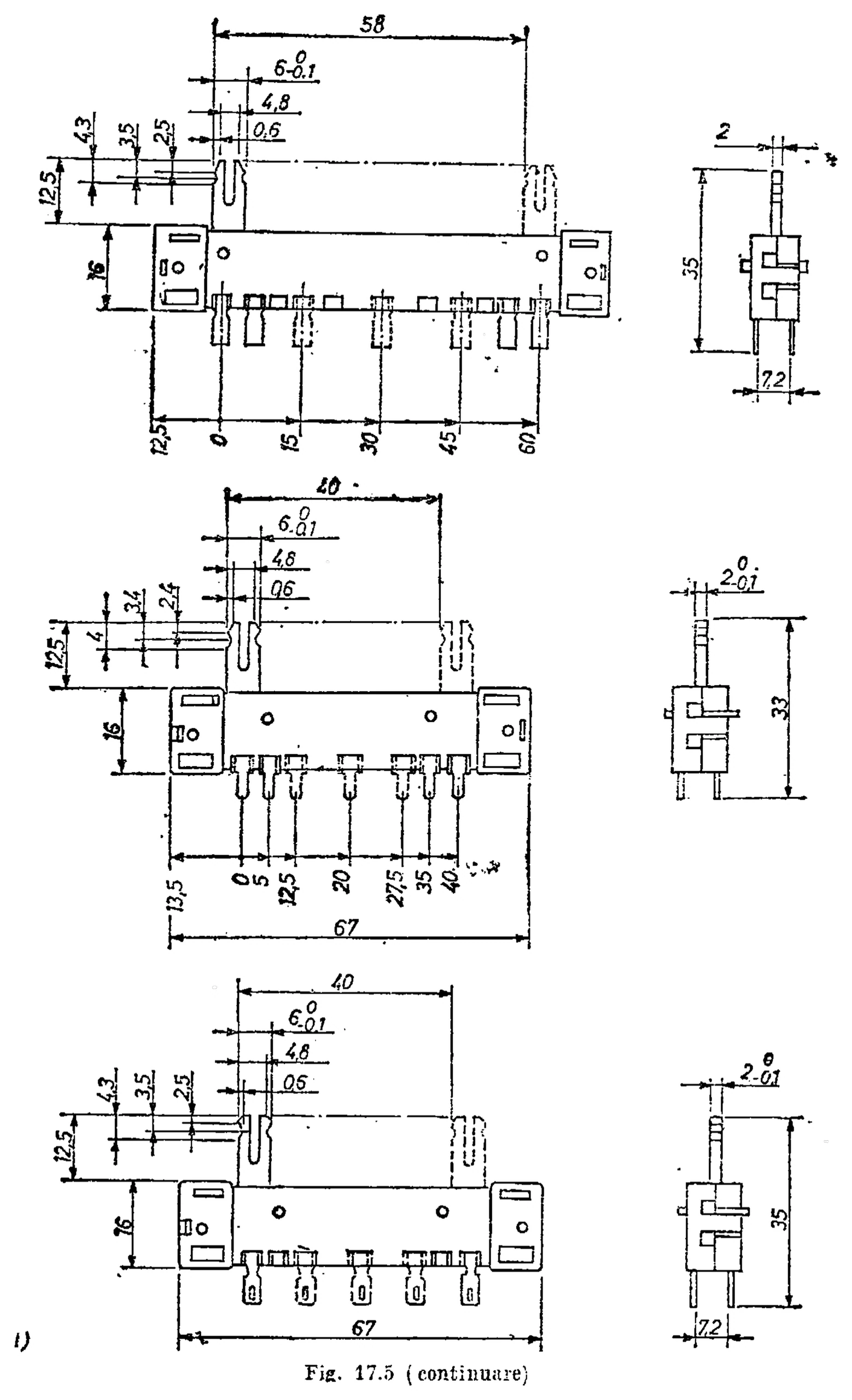

Electronica P slide potentiometers: Drawings (fig. 17.5 j…l)No image available
