2N3955

ICCE

Year
Unknown
Category
Components
Type
Transistors
Documentation score
1/5
Last edited
05 OCT 2026

Specifications

Material
Si
Polarity
N-channel
Structure / technology
JFET, dual
Max. gate–source voltage |Vgs|
50 V
Gate–source cut-off / threshold voltage (Vgs off, Vgs th)
> −1 V
Zero-gate-voltage drain current (Idss)
0.5…5 mA
Gate leakage current (Igss)
−0.1 nA
Forward transconductance (gm, gfs)
1 mA/V
Package
TO-99 / MP48

Sources: [1]

Description

The 2N3955 is a silicon dual N-channel junction field-effect transistor listed in the Agenda radioelectronistului (2nd edition, 1989) among the field-effect transistors made in Romania by ICCE (marked in the Agenda as a CCSIT-CE component), in a TO-99 / MP48 package [1].

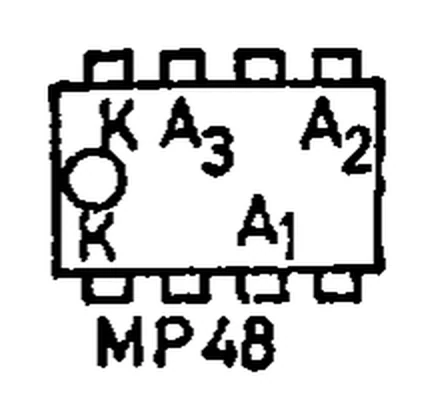

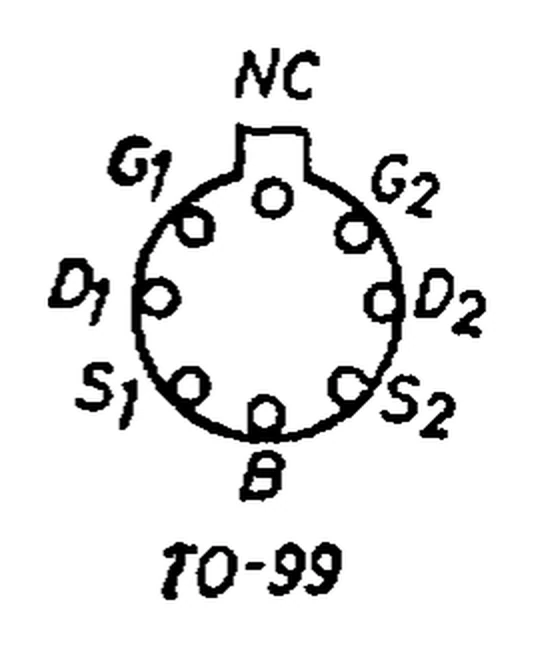

In the package column, next to the three dual transistors 2N5912, 2N3955 and 2N5545, the table prints a TO-99 drawing and a drawing of an MP48 package (leads marked K, A1–A3), without saying which belongs to which transistor [1]. The gate leakage current of the 2N3955 is printed as „0,1 –” nA.
