General view

HA 25.00

IPRS Băneasa

Year
Unknown
Category
Components
Type
Capacitors
Documentation score
1/5
Last edited
16 OCT 2026

Specifications

Type
oil-impregnated paper, for AC
Standard
STAS 9190-73
Capacitance (Cn)
2…7.5 µF
Capacitance, min
2 µF
Capacitance, max
7.5 µF
Tolerance
±10 %
Rated AC voltage (Un~)
250–600 V (see Variants)
Climatic category
10/070/21
Package
cylindrical can, two solder tags on one end
Diameter (D)
40 mm
Max. length (Lmax)
65–115 mm (see Variants)
Application
general use, in AC circuits

Sources: [1][2]

Variants (21)

HA 25.75 (250 V AC)3.5; 4 µF3.5425065
HA 25.75 (400 V AC)2.5 µF2.52.540065
HA 25.75 (600 V AC)2.0 µF2260065
HA 25.76 (250 V AC)4.5 µF4.54.525075
HA 25.76 (400 V AC)3.15; 3.25; 3.45 µF3.153.4540075
HA 25.76 (500 V AC)2.0 µF2250075
HA 25.77 (250 V AC)5.0 µF5525081
HA 25.77 (400 V AC)3.6; 3.7; 3.75 µF3.63.7540081
HA 25.78 (250 V AC)5.5 µF5.55.525083
HA 25.78 (400 V AC)4.2 µF4.24.240083
HA 25.78 (500 V AC)2.5 µF2.52.550083
HA 25.794 µF4440087
HA 25.80 (250 V AC)6.3 µF6.36.325093
HA 25.80 (400 V AC)4.5 µF4.54.540093
HA 25.81 (250 V AC)7 µF77250105
HA 25.81 (400 V AC)5 µF55400105
HA 25.81 (500 V AC)3.15 µF3.153.15500105
HA 25.81 (600 V AC)2.5 µF2.52.5600105
HA 25.82 (250 V AC)7.5 µF7.57.5250115
HA 25.82 (400 V AC)5.8 µF5.85.8400115
HA 25.82 (500 V AC)3.7 µF3.73.7500115

Click a column heading to sort. „+” adds a variant to the comparison (HA 25.00).

Description

The HA 25.00 is a series of oil-impregnated paper capacitors for alternating current, in a cylindrical can 40 mm in diameter with two solder tags on one end, made to STAS 9190-73 for general use in AC circuits [1]. The Agenda radioelectronistului (2nd edition, 1989) lists eight package codes, HA 25.75 to HA 25.82, with 2–7.5 µF at 250–600 V AC; the 1st edition (1983) has the same table [1][2].

The Agenda does not say which works made the series: for the whole section on capacitors made in Romania it lists IPEE Electroargeș of Curtea de Argeș, Tehnoton of Iași, IIS Electronica of Bucharest and IPRS Băneasa as producers, and the 1st edition (1983) names only the first three [3][4]. It was made by IPRS Băneasa, which also designed the HPA and HSA paper capacitors put into production in 1972 [5].

Coded as [3]:

Part Meaning
HA construction type (structure, use): oil-impregnated or waxed paper capacitor, for alternating current
25 technological family („familia tehnologică”)
75…82 package code („codul capsulei”)

The capacitors are marked in clear with the climatic category and the other characteristics – nominal capacitance, tolerance and rated voltage; the book’s example is an HMC 33 02 marked „0,25 µF ± 20% 150 Vcc” and „10/070/74” [3].

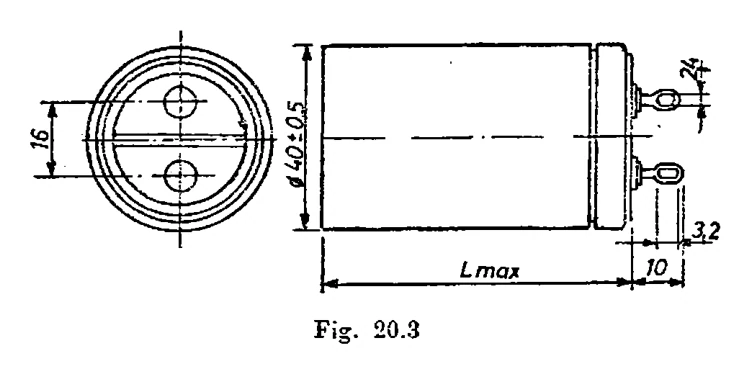

The table gives the maximum length Lmax of each package; the diameter, 40 ± 0.5 mm, is given in fig. 20.3, where the two solder tags are 16 mm apart [1].

Gallery

IPRS Băneasa HA 25.00: Drawing (fig. 20.3)No image available
Drawing (fig. 20.3)

Documents

No documents available yet.

References

  1. [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 20.4.1.3 „Condensatoare cu hîrtie uleiată pentru curent alternativ, seria HA 25.00”, p. 250
  2. [2]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.5.4.1.3 „Condensatoare cu hîrtie uleiată pentru curent alternativ, seria HA 25.00”, p. 220
  3. [3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, sections 20.4 „Condensatoare produse în R.S.R.” and 20.4.1.1 „Codificare – marcare (în clar)”, p. 248
  4. [4]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, sections 3.5.4 „Condensatoare produse în R.S.R.” and 3.5.4.1.1 „Codificare – marcare (în clar)”, p. 218
  5. [5]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, section VIII.1.2.6, pp. 408–411
