IPRS Băneasa HC 24.00

___ __ ______ _ __ / | _____________ / |/ / | | |/ / / /| | / ___/ ___/ _ \/ /|_/ / /| | | / / ___ |/ / / /__/ __/ / / / ___ |/ | /_/ |_/_/ \___/\___/_/ /_/_/ |_/_/|_|

Specifications

Type

oil-impregnated paper

Standard

STAS 7669-74

Capacitance (Cn)

0.01…0.68 µF

Capacitance, min

0.01 µF

Capacitance, max

0.68 µF

Tolerance

±20 % (±10 % or ±5 % on request)

Rated voltage (Un)

400–1300 V (see Variants)

Category voltage (Uc)

0.6 Un

Dissipation factor (tan δ)

≤ 0.01 (1 kHz, +20 °C)

Dielectric strength

2 Un

Climatic category

25/085/21

Package

tubular, plastic sleeve, axial leads

Diameter (D)

10–20 mm (see Variants)

Length (L)

26–53 mm (see Variants)

Lead diameter (d)

0.8 mm

Application

coupling, decoupling, filters

Variants (27)

							Note
HC 24.16 (400 V)	0.01; 0.015; 0.022 µF	0.01	0.022	400	10	26
HC 24.16 (630 V)	0.01 µF	0.01	0.01	630	10	26
HC 24.16 (1000 V)	0.01 µF	0.01	0.01	1000	10	26
HC 24.21 (400 V)	0.033 µF	0.033	0.033	400	12	26
HC 24.21 (630 V)	0.015; 0.022 µF	0.015	0.022	630	12	26
HC 24.21 (1000 V)	0.015 µF	0.015	0.015	1000	12	26
HC 24.23 (400 V)	0.047; 0.068 µF	0.047	0.068	400	12	34
HC 24.23 (630 V)	0.047; 0.033 µF	0.033	0.047	630	12	34
HC 24.23 (1000 V)	0.022 µF	0.022	0.022	1000	12	34
HC 24.28 (400 V)	0.1 µF	0.1	0.1	400	14	34	printed „HA 24.28” in the 2nd edition; the 1st edition prints the voltage as „4000”
HC 24.28 (630 V)	0.068 µF	0.068	0.068	630	14	34	printed „HA 24.28” in the 2nd edition
HC 24.28 (1000 V)	0.033; 0.047 µF	0.033	0.047	1000	14	34	printed „HA 24.28” in the 2nd edition
HC 24.30 (400 V)	0.15 µF	0.15	0.15	400	14	39
HC 24.30 (630 V)	0.1 µF	0.1	0.1	630	14	39
HC 24.35 (400 V)	0.22 µF	0.22	0.22	400	16	39
HC 24.35 (630 V)	0.15 µF	0.15	0.15	630	16	39
HC 24.35 (1000 V)	0.068 µF	0.068	0.068	1000	16	39
HC 24.35 (1300 V)	0.47; 0.56 µF	0.47	0.56	1300	16	39	as printed in both editions
HC 24.47 (400 V)	0.33 µF	0.33	0.33	400	18	39
HC 24.47 (630 V)	0.22 µF	0.22	0.22	630	18	39
HC 24.47 (1000 V)	0.1 µF	0.1	0.1	1000	18	39
HC 24.48 (400 V)	0.47 µF	0.47	0.47	400	18	53
HC 24.48 (630 V)	0.33 µF	0.33	0.33	630	18	53
HC 24.48 (1000 V)	0.15 µF	0.15	0.15	1000	18	53
HC 24.55 (400 V)	0.68 µF	0.68	0.68	400	20	53
HC 24.55 (630 V)	0.47 µF	0.47	0.47	630	20	53
HC 24.55 (1000 V)	0.22 µF	0.22	0.22	1000	20	53

Click a column heading to sort. „+” adds a variant to the comparison (HC 24.00).

Description

The HC 24.00 is a series of oil-impregnated paper capacitors for direct current, in a tubular case with a plastic sleeve and axial leads, made to STAS 7669-74 for coupling, decoupling and filter circuits [1]. The Agenda radioelectronistului (2nd edition, 1989) lists nine package codes, HC 24.16 to HC 24.55, with 0.01–0.68 µF at 400–1300 V [1].

The Agenda does not say which works made the series: for the whole section on capacitors made in Romania it lists IPEE Electroargeș of Curtea de Argeș, Tehnoton of Iași, IIS Electronica of Bucharest and IPRS Băneasa as producers, and the 1st edition (1983) names only the first three [3][4]. It was made by IPRS Băneasa, which also designed the HPA and HSA paper capacitors put into production in 1972 [5].

Coded as [3]:

Part	Meaning
HC	construction type (structure, use): oil-impregnated or waxed paper capacitor, for direct current
24	technological family („familia tehnologică”)
16…55	package code („codul capsulei”)

The capacitors are marked in clear with the climatic category and the other characteristics – nominal capacitance, tolerance and rated voltage; the book’s example is an HMC 33 02 marked „0,25 µF ± 20% 150 Vcc” and „10/070/74” [3].

In the 2nd edition the code of the 0.033–0.1 µF package is printed „HA 24.28”; the 1st edition has „HC 24.28”, and HA is the letter code of the paper capacitors for alternating current, so the row is listed here as HC 24.28 [1][2]. In the same row the 1st edition prints the voltage of the 0.1 µF capacitor as „4000” (2nd edition: 400) [2]. For HC 24.35 both editions give 0.47 and 0.56 µF at 1300 V – more than the 0.22 µF of the same package at 400 V; the values are kept as printed [1][2].

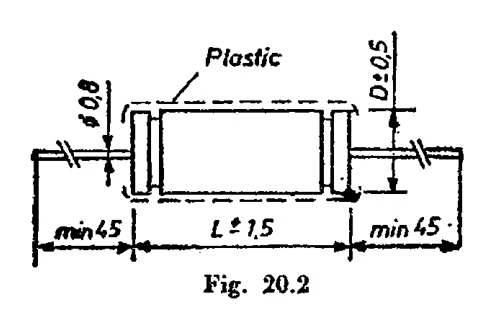

Rated voltages are DC („Vcc”). Dimensions in mm (fig. 20.2): D ± 0.5, L ± 1.5; leads Ø 0.8, at least 45 mm long on each side [1].

References

[1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 20.4.1.2 „Condensatoare cu hîrtie uleiată seria HC 24.00”, pp. 248–249

[2]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.5.4.1.2 „Condensatoare cu hîrtie uleiată seria HC 24.00”, pp. 218–219

[3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, sections 20.4 „Condensatoare produse în R.S.R.” and 20.4.1.1 „Codificare – marcare (în clar)”, p. 248

[4]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, sections 3.5.4 „Condensatoare produse în R.S.R.” and 3.5.4.1.1 „Codificare – marcare (în clar)”, p. 218

[5]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, section VIII.1.2.6, pp. 408–411
