HC 33.00
IPRS Băneasa
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Capacitors
- Documentation score
- 1/5
- Last edited
- 16 OCT 2026
Specifications
- Type
- waxed paper
- Standard
- STAS 7669-74
- Capacitance (Cn)
- 0.001…0.47 µF
- Capacitance, min
- 0.001 µF
- Capacitance, max
- 0.47 µF
- Tolerance
- ±20 %
- Rated voltage (Un)
- 400–1000 V (see Variants)
- Category voltage (Uc)
- 0.6 Un
- Dissipation factor (tan δ)
- ≤ 0.01 (1 kHz, +20 °C)
- Dielectric strength
- 2.5 Un
- Climatic category
- 10/070/04
- Package
- tubular, axial leads
- Diameter (D)
- 9.5–19 mm (see Variants)
- Length (L)
- 22–60 mm (see Variants)
- Lead diameter (d)
- 0.8–1 mm (see Variants)
- Lead length (l)
- 40–55 mm (see Variants)
- Application
- coupling, decoupling, filters
Variants (16)
| Note | Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| HC 33.01 (400 V) | 0.0010; 0.0015; 0.0022 µF | 0.001 | 0.0022 | 400 | 9.5 | 22 | 0.8 | 40 | ||
| HC 33.01 (630 V) | 0.0010; 0.0015; 0.0022 µF | 0.001 | 0.0022 | 630 | 9.5 | 22 | 0.8 | 40 | ||
| HC 33.01 (1000 V) | 0.0010 µF | 0.001 | 0.001 | 1000 | 9.5 | 22 | 0.8 | 40 | ||
| HC 33.02 (400 V) | 0.0033; 0.0017; 0.0068; 0.01; 0.015 µF | 0.0017 | 0.015 | 400 | 12.5 | 22 | 0.8 | 40 | 0.0017 as printed in the 2nd edition (1st edition: 0.0047) | |
| HC 33.02 (630 V) | 0.0033; 0.0017; 0.0068; 0.01; 0.015 µF | 0.0017 | 0.015 | 630 | 12.5 | 22 | 0.8 | 40 | 0.0017 as printed in the 2nd edition (1st edition: 0.0047) | |
| HC 33.02 (1000 V) | 0.0017 µF | 0.0017 | 0.0017 | 1000 | 12.5 | 22 | 0.8 | 40 | as printed in the 2nd edition (1st edition: 0.0047 µF) | |
| HC 33.03 (400 V) | 0.022; 0.033; 0.047; 0.068 µF | 0.022 | 0.068 | 400 | 12.5 | 35 | 0.8 | 40 | ||
| HC 33.03 (630 V) | 0.022; 0.015 µF | 0.015 | 0.022 | 630 | 12.5 | 35 | 0.8 | 40 | ||
| HC 33.04 (400 V) | 0.1 µF | 0.1 | 0.1 | 400 | 14.5 | 35 | 0.8 | 40 | ||
| HC 33.04 (630 V) | 0.033 µF | 0.033 | 0.033 | 630 | 14.5 | 35 | 0.8 | 40 | ||
| HC 33.05 (400 V) | 0.15 µF | 0.15 | 0.15 | 400 | 14.5 | 47.5 | 1 | 55 | ||
| HC 33.05 (630 V) | 0.047; 0.068; 0.1 µF | 0.047 | 0.1 | 630 | 14.5 | 47.5 | 1 | 55 | ||
| HC 33.07 (400 V) | 0.22; 0.33 µF | 0.22 | 0.33 | 400 | 17.5 | 47.5 | 1 | 55 | ||
| HC 33.07 (630 V) | 0.15 µF | 0.15 | 0.15 | 630 | 17.5 | 47.5 | 1 | 55 | ||
| HC 33.09 (400 V) | 0.47 µF | 0.47 | 0.47 | 400 | 19 | 60 | 1 | 55 | ||
| HC 33.09 (630 V) | 0.22; 0.33 µF | 0.22 | 0.33 | 630 | 19 | 60 | 1 | 55 |
Click a column heading to sort. „+” adds a variant to the comparison (HC 33.00).
Description
The HC 33.00 is a series of waxed-paper capacitors for direct current, in a tubular case with axial leads, made to STAS 7669-74 for coupling, decoupling and filter circuits [1]. The Agenda radioelectronistului (2nd edition, 1989) lists seven package codes, HC 33.01 to HC 33.09, with 0.001–0.47 µF at 400–1000 V [1].
The Agenda does not say which works made the series: for the whole section on capacitors made in Romania it lists IPEE Electroargeș of Curtea de Argeș, Tehnoton of Iași, IIS Electronica of Bucharest and IPRS Băneasa as producers, and the 1st edition (1983) names only the first three [3][4]. It was made by IPRS Băneasa, which also designed the HPA and HSA paper capacitors put into production in 1972 [5].
Coded as [3]:
| Part | Meaning |
|---|---|
| HC | construction type (structure, use): oil-impregnated or waxed paper capacitor, for direct current |
| 33 | technological family („familia tehnologică”) |
| 01…09 | package code („codul capsulei”) |
The capacitors are marked in clear with the climatic category and the other characteristics – nominal capacitance, tolerance and rated voltage; the book’s example is an HMC 33 02 marked „0,25 µF ± 20% 150 Vcc” and „10/070/74” [3].
For the HC 33.02 package the 2nd edition prints the second capacitance as „0,0017” µF (and the only one at 1000 V likewise); the 1st edition prints 0.0047 µF, which fits between its neighbours 0.0033 and 0.0068 µF. The page keeps the value of the 2nd edition [1][2]. Both editions give 0.015 µF at 630 V in two packages, HC 33.02 and HC 33.03 [1][2].

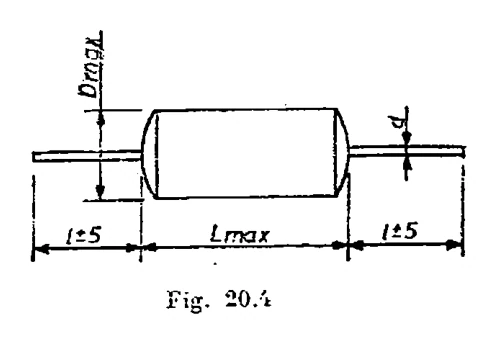

Rated voltages are DC („Vcc”). Dimensions in mm: the table gives D, L, the lead diameter d and the lead length l; fig. 20.4 marks D and L as maximum values and l as ± 5 mm [1].
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 20.4.1.4 „Condensatoare cu hîrtie cerată seria HC 33.00”, p. 251
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.5.4.1.4 „Condensatoare cu hîrtie cerată seria HC 33.00”, p. 221
- [3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, sections 20.4 „Condensatoare produse în R.S.R.” and 20.4.1.1 „Codificare – marcare (în clar)”, p. 248
- [4]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, sections 3.5.4 „Condensatoare produse în R.S.R.” and 3.5.4.1.1 „Codificare – marcare (în clar)”, p. 218
- [5]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, section VIII.1.2.6, pp. 408–411
