HS 65.00
IPRS Băneasa
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Capacitors
- Documentation score
- 1/5
- Last edited
- 16 OCT 2026
Specifications
- Type
- paper, for automotive equipment
- Capacitance (Cn)
- 0.22…0.27 µF
- Capacitance, min
- 0.22 µF
- Capacitance, max
- 0.27 µF
- Tolerance
- ±15 %
- Dissipation factor (tan δ)
- ≤ 0.01 (+25 °C, 1 kHz)
- Dielectric strength
- 1000 V AC (+20 °C, 5 s)
- Climatic category
- 40/085/21
- Construction
- 7 different values (see Variants)
- Package
- cylindrical, wire lead with lug, with or without clamp
- Diameter (D)
- 17.5 mm
- Max. length (Lmax)
- 38.5 mm
- Lead length (l)
- 45–275 mm (see Variants)
- Application
- automotive ignition installations and interference suppression
Variants (12)
| Note | Compare | ||||||
|---|---|---|---|---|---|---|---|
| HS 65.10 | 0.22 µF | 0.22 | 0.22 | without clamp, with lug (fig. 20.13 a) | 45 | ||
| HS 65.11 | 0.22 µF | 0.22 | 0.22 | with type A clamp and lug (fig. 20.13 b) | 45 | ||
| HS 65.13 | 0.22 µF | 0.22 | 0.22 | with type A clamp, without lug (fig. 20.13 b) | 45 | ||
| HS 65.20 | 0.22 µF | 0.22 | 0.22 | without clamp, with lug (fig. 20.13 a) | 75 | ||
| HS 65.21 | 0.22 µF | 0.22 | 0.22 | with type A clamp and lug (fig. 20.13 b) | 75 | ||
| HS 65.22 | 0.22 µF | 0.22 | 0.22 | with type B clamp and lug (fig. 20.13 c) | 75 | ||
| HS 65.24 | 0.22 µF | 0.22 | 0.22 | with type B clamp, without lug (fig. 20.13 c) | 75 | 2nd edition only | |
| HS 65.30 | 0.22 µF | 0.22 | 0.22 | without clamp, with lug (fig. 20.13 a) | 110 | ||
| HS 65.41 | 0.22 µF | 0.22 | 0.22 | with type A clamp, with lug (fig. 20.13 b) | 275 | ||
| HS 65.43 | 0.22 µF | 0.22 | 0.22 | with type A clamp, without lug (fig. 20.13 b) | 275 | ||
| HS 65.50 | 0.22 µF | 0.22 | 0.22 | without clamp, without lug (fig. 20.13 a) | 90 | 2nd edition only | |
| HS 67.22 | 0.27 µF | 0.27 | 0.27 | with type B clamp and lug (fig. 20.13 c) | 75 | 2nd edition only |
Click a column heading to sort. „+” adds a variant to the comparison (HS 65.00).
Description
The HS 65.00 is a series of paper capacitors for automotive equipment – ignition installations and interference suppression – in a cylindrical body 17.5 mm in diameter, with a wire lead (with or without a lug at its end) and, on some codes, a mounting clamp [1]. The Agenda radioelectronistului (2nd edition, 1989) gives it together with the HS 67.22: all codes are 0.22 µF ± 15 %, except HS 67.22, which is 0.27 µF; the codes differ in the length of the lead and in the clamp and lug [1]. The book gives no rated voltage, only the dielectric strength [1].
The Agenda does not say which works made the series: for the whole section on capacitors made in Romania it lists IPEE Electroargeș of Curtea de Argeș, Tehnoton of Iași, IIS Electronica of Bucharest and IPRS Băneasa as producers, and the 1st edition (1983) names only the first three [3][4]. It was made by IPRS Băneasa, which also designed the HPA and HSA paper capacitors put into production in 1972 [5].
Coded as [3]:
| Part | Meaning |
|---|---|
| HS | construction type (structure, use): paper capacitor for starters or automotive equipment |
| 65 (67) | technological family („familia tehnologică”) |
| 10…50 (22) | package code („codul capsulei”) |
The capacitors are marked in clear with the climatic category and the other characteristics – nominal capacitance, tolerance and rated voltage; the book’s example is an HMC 33 02 marked „0,25 µF ± 20% 150 Vcc” and „10/070/74” [3].
The 1st edition (1983) has only the HS 65.00 series, with nine codes: HS 65.24, HS 65.50 and HS 67.22 are new in the 2nd edition [1][2]. In the 2nd edition the body length reads „max 33,5” in drawings a and b and „max 38,5” in drawing c; in the 1st edition drawings a and b give max. 38.5 mm (in drawing c the dimension has no number) [1][2].

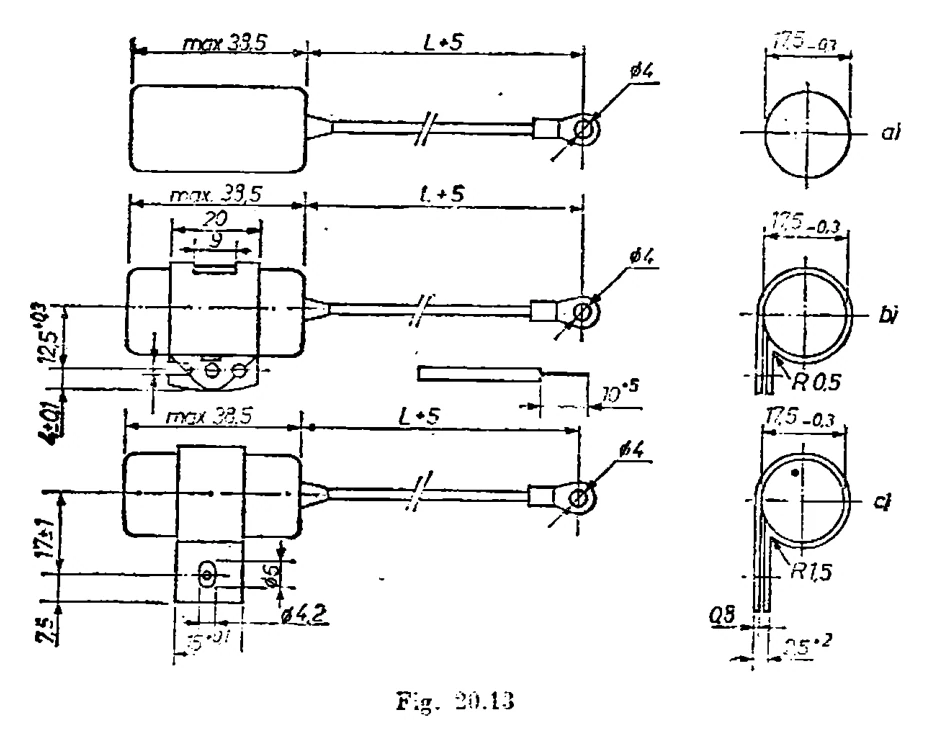

The table gives the length L of the lead; fig. 20.13 dimensions it as „L + 5” from the body to the lug, which has a Ø 4 mm hole. Body Ø 17.5 (−0.3) mm, max. 38.5 mm long; a) no clamp, b) clamp type A, c) clamp type B [1].
