General view

HS 71.01

IPRS Băneasa

Year
Unknown
Category
Components
Type
Capacitors
Documentation score
1/5
Last edited
16 OCT 2026

Specifications

Type
paper, for starters
Capacitance (Cn)
0.01 µF
Capacitance, min
0.01 µF
Capacitance, max
0.01 µF
Tolerance
±20 %
Rated AC voltage (Un~)
220 V
Dissipation factor (tan δ)
≤ 0.01
Dielectric strength
3600 V DC
Climatic category
10/070/– (printed with a dash)
Package
flat oval case, two leads on one side
Max. length (Lmax)
28.6 mm
Max. height (Hmax)
13 mm
Thickness
max. 4.7 mm
Lead diameter (d)
0.5 mm
Lead length (l)
11.5 ± 1 mm
Application
fluorescent-tube starters

Sources: [1][2]

Description

The HS 71.01 is a paper capacitor for the starters of fluorescent tubes, in a flat oval case with two leads on one side [1]. The Agenda radioelectronistului (2nd edition, 1989) gives a single value, 0.01 µF at 220 V AC; the 1st edition (1983) has the same data [1][2].

The Agenda does not say which works made the series: for the whole section on capacitors made in Romania it lists IPEE Electroargeș of Curtea de Argeș, Tehnoton of Iași, IIS Electronica of Bucharest and IPRS Băneasa as producers, and the 1st edition (1983) names only the first three [3][4]. It was made by IPRS Băneasa, which also designed the HPA and HSA paper capacitors put into production in 1972 [5].

Coded as [3]:

Part Meaning
HS construction type (structure, use): paper capacitor for starters or automotive equipment
71 technological family („familia tehnologică”)
01 package code („codul capsulei”)

The capacitors are marked in clear with the climatic category and the other characteristics – nominal capacitance, tolerance and rated voltage; the book’s example is an HMC 33 02 marked „0,25 µF ± 20% 150 Vcc” and „10/070/74” [3].

Both editions print the climatic category as „10/070/–”, with a dash for the number of days of damp heat [1][2].

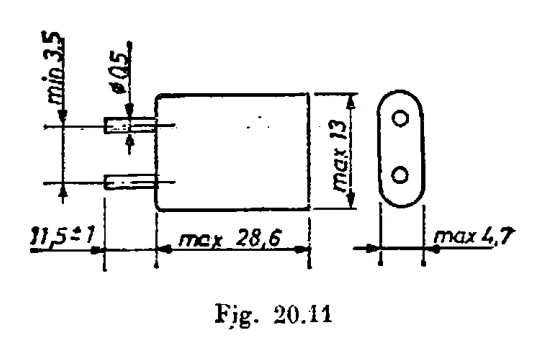

Dimensions in mm (fig. 20.11): length max. 28.6, height max. 13, thickness max. 4.7; leads Ø 0.5, 11.5 ± 1 mm long, at least 3.5 mm apart [1].

Gallery

IPRS Băneasa HS 71.01: Drawing (fig. 20.11)No image available
Drawing (fig. 20.11)

Documents

No documents available yet.

References

  1. [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 20.4.1.11 „Condensatoare cu hîrtie pentru startere, seria HS 71.01”, p. 255
  2. [2]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.5.4.1.11 „Condensatoare cu hîrtie pentru startere, seria HS 71.01”, p. 225
  3. [3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, sections 20.4 „Condensatoare produse în R.S.R.” and 20.4.1.1 „Codificare – marcare (în clar)”, p. 248
  4. [4]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, sections 3.5.4 „Condensatoare produse în R.S.R.” and 3.5.4.1.1 „Codificare – marcare (în clar)”, p. 218
  5. [5]N. Millea, I. Constantinescu (coord.) – „Un secol de electronică în România”, Editura Academiei Române, 2020, section VIII.1.2.6, pp. 408–411
