Specifications
- Bandwidth
- 10 MHz
- Vertical sensitivity, max
- 20 mV/div
- Vertical accuracy
- ±3%
- Input impedance
- 1 MΩ ∥ 40 pF
- Input voltage, max
- 250 Vpp
- Overshoot
- 5%
- Time base, fastest
- 0.2 µs/div
- Time base range
- 0.2 µs – 0.5 s/div
- Time base accuracy
- ±5 … ±7%
- Triggering
- automatic or triggered; internal or external
- Trigger input
- 100 kΩ ∥ 25 pF
- X amplifier bandwidth
- 1 MHz
- X deflection coefficient
- 1 V/div
- X input
- 300 kΩ ∥ 35 pF, max 100 Vpp
- Calibrator
- 80 mV ±5% (into 1 MΩ), 1 kHz ±0.5%
- Screen
- 7 × 10 div (1 div = 7 mm)
- Post-acceleration voltage
- 6 kV
- Operating conditions
- +5 … +40 °C, relative humidity 80%
- Power supply
- 220 V, 50–60 Hz, or external 24 V DC, 0.7 A
- Power consumption
- 35 VA
- Dimensions
- 23 × 26 × 38 cm (W × H × D)
- Weight
- 11 kg
Description

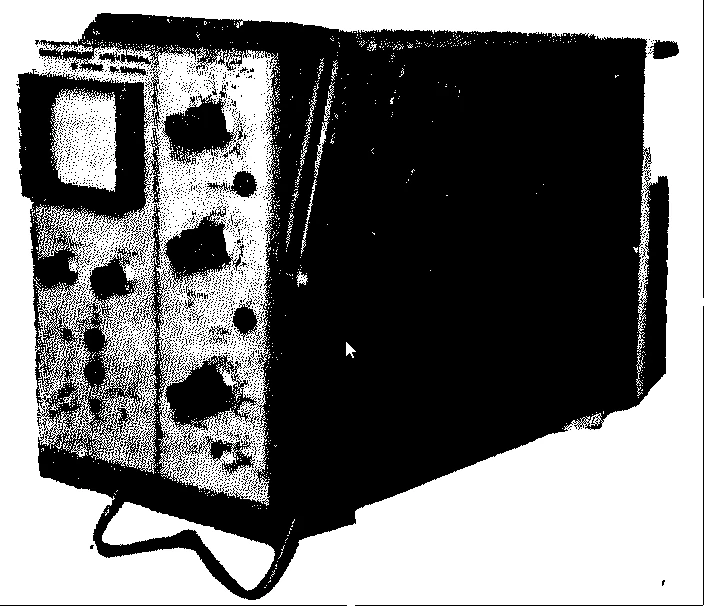

The E0102 is a general-purpose (“universal”) oscilloscope made by IEMI in Bucharest. It was produced from 1974 to 1985, in 5,909 units [1]. Like the other IEMI oscilloscopes, it was designed at ICE, the Romanian institute for electronics research, in its electrical measurements laboratory [1].
It was fully transistorised and was intended for displaying and measuring electrical signals when testing and repairing electronic equipment [3]. It could be powered from the mains or from an external 24 V supply [2][3].
Where the sources differ, the values from Electronica românească [3], taken from the manufacturer’s brochures, are shown.
Its list price, set in 1982, was 16,150 lei [4].
Gallery
No other images available yet.
Schematics
No schematics available yet.
Documents
No documents available yet.
References
- [1]N. Millea, I. Constantinescu – „Un secol de electronică în România (II). Electronica profesională”, NOEMA XVIII, 2019
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, 1989, p. 707 (table „Osciloscoape (grupa E-01)”, producer IEMI București)
- [3]„Electronica românească. O istorie trăită”, vol. II – Electronica profesională, AGIR, 2013, annex III.2.6 „Osciloscoape” (list and tables of technical characteristics from the manufacturer's brochures, pp. 610–611)
- [4]N. Millea (coord.) et al. – „Electronica românească. O istorie trăită”, vol. II „Electronica profesională”, AGIR, annex III.2.5 „Lista cu prețurile produselor – IEMI”, pp. 393–396
