Specifications
- Bandwidth
- 10 MHz
- Vertical sensitivity, max
- 10 mV/div
- Vertical accuracy
- ±5%
- Input impedance
- 1 MΩ ∥ 47 pF
- Input voltage, max
- 250 Vpp
- Time base, fastest
- 0.5 µs/div
- Time base range
- 0.5 µs – 0.5 s/div
- Time base accuracy
- ±5%
- Triggering
- automatic or triggered
- Trigger input
- 100 kΩ ∥ 47 pF, max 100 Vpp
- X amplifier bandwidth
- 0.5 MHz
- X deflection coefficient
- 1 V/div
- X input
- 100 kΩ ∥ 47 pF, max 100 Vpp
- Screen
- rectangular CRT, 8 × 10 div (1 div = 5 mm)
- Operating conditions
- +5 … +40 °C, relative humidity 80%
- Power supply
- 220 V, 50 Hz, or external 10–15 V DC
- Power consumption
- ≤ 18 VA
- Dimensions
- 23 × 14 × 32 cm (W × H × D)
- Weight
- 6 kg
Description
The E0104, known as the Miniscop, is a compact oscilloscope made by IEMI in Bucharest, with more modest specifications than the laboratory models. It was made in very large numbers: 5,381 units between 1977 and 1985 [1]. Like the other IEMI oscilloscopes, it was designed at ICE, the Romanian institute for electronics research, in its electrical measurements laboratory [1].

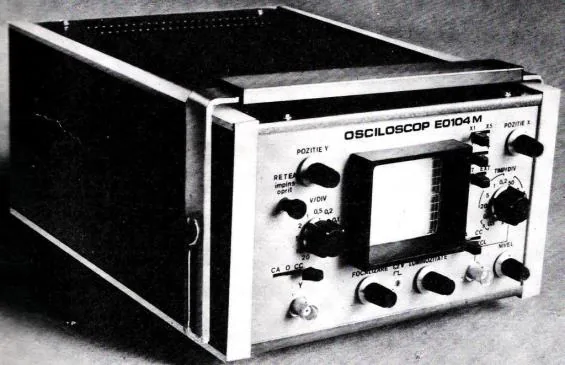

The picture above shows the E0104M version; the Agenda radioelectronistului gives its characteristics for the “E-0104(M)”, which could also be powered from a 10–15 V DC supply [2][3].
Its list price, set in 1982, was 16,600 lei [4].
Electronica românească describes the E0104 as a small instrument with a 0–10 MHz bandwidth, widely used in automation, education and factories, and the E0104M as its modernised version [3]. Where the sources differ, the values from Electronica românească [3], taken from the manufacturer’s brochures, are shown.
Gallery
No other images available yet.
Schematics
No schematics available yet.
Documents
No documents available yet.
References
- [1]N. Millea, I. Constantinescu – „Un secol de electronică în România (II). Electronica profesională”, NOEMA XVIII, 2019
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, 1989, p. 707 (table „Osciloscoape (grupa E-01)”, producer IEMI București)
- [3]„Electronica românească. O istorie trăită”, vol. II – Electronica profesională, AGIR, 2013, annex III.2.6 „Osciloscoape” (list and tables of technical characteristics from the manufacturer's brochures, pp. 610–611)
- [4]N. Millea (coord.) et al. – „Electronica românească. O istorie trăită”, vol. II „Electronica profesională”, AGIR, annex III.2.5 „Lista cu prețurile produselor – IEMI”, pp. 393–396
